KSR Moto TRIGGER 50 - FRONT BRAKE DISC INSPECTION

3
4
BRAKES
34
3. Remove the circlip (3).
4. Remove the bolt (4).
5. Change the rear brake pads in pair.
6. Reassemble in reverse order.

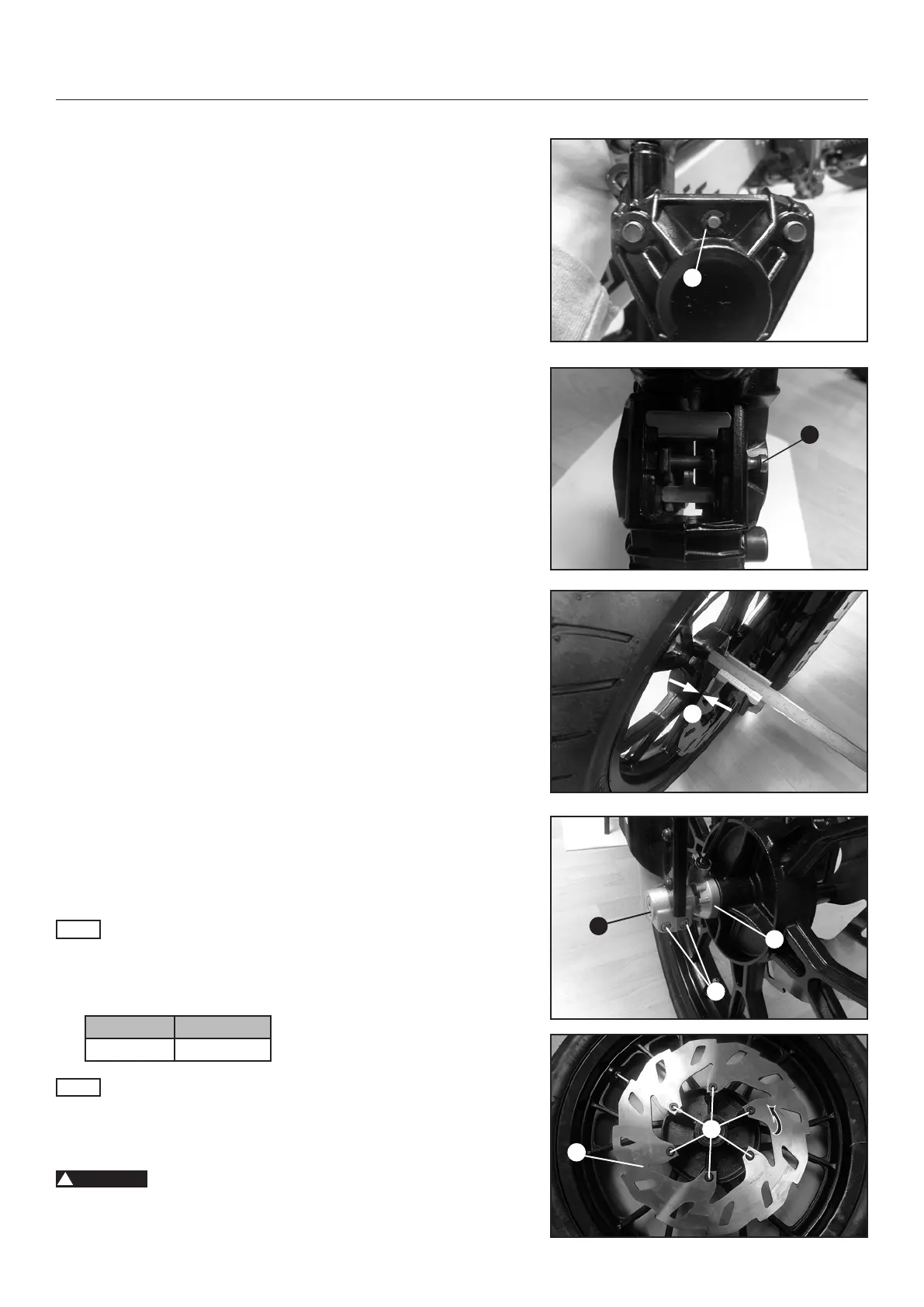

FRONT BRAKE DISC INSPECTION
1. Check the thickness of the front disk at several places on the
disk to see if it conforms to measurement.
Allowable limit A: 3 mm
If the brake disk thickness is less than the specied value
change the brake disk. Check the front disk for damage,
cracking and deformation. If the brake disk exhibits damage,
cracking or deformation change the brake disc.
2. Place an appropriate supporting stand under the vehicle in
order to raise the front wheel up.
3. Loosen the two screws (1).
4. Remove the front axle (2) in order to remove the front wheel.
5. Remove the six screws (3) to remove the front brake disc (4)
and mount a new one if the old one is worn.
NOTE
Take care to the position of the new brake disc (Arrow).
6. Reassemble in reverse order.
NOTE
Take special care that the axle spacer and the speedometer
gear (5) installed correct.
!
WARNING
Always keep the brake discs free of oil and grease, and clean
them with brake cleaner when necessary. Please consider that a
dirty brake disc inuence the brake performance.
A
1
2
5
4
3
PART. NO. TORQUE
3
22-29 Nm
