ENGINE/ LEFT CRANKCASE
82

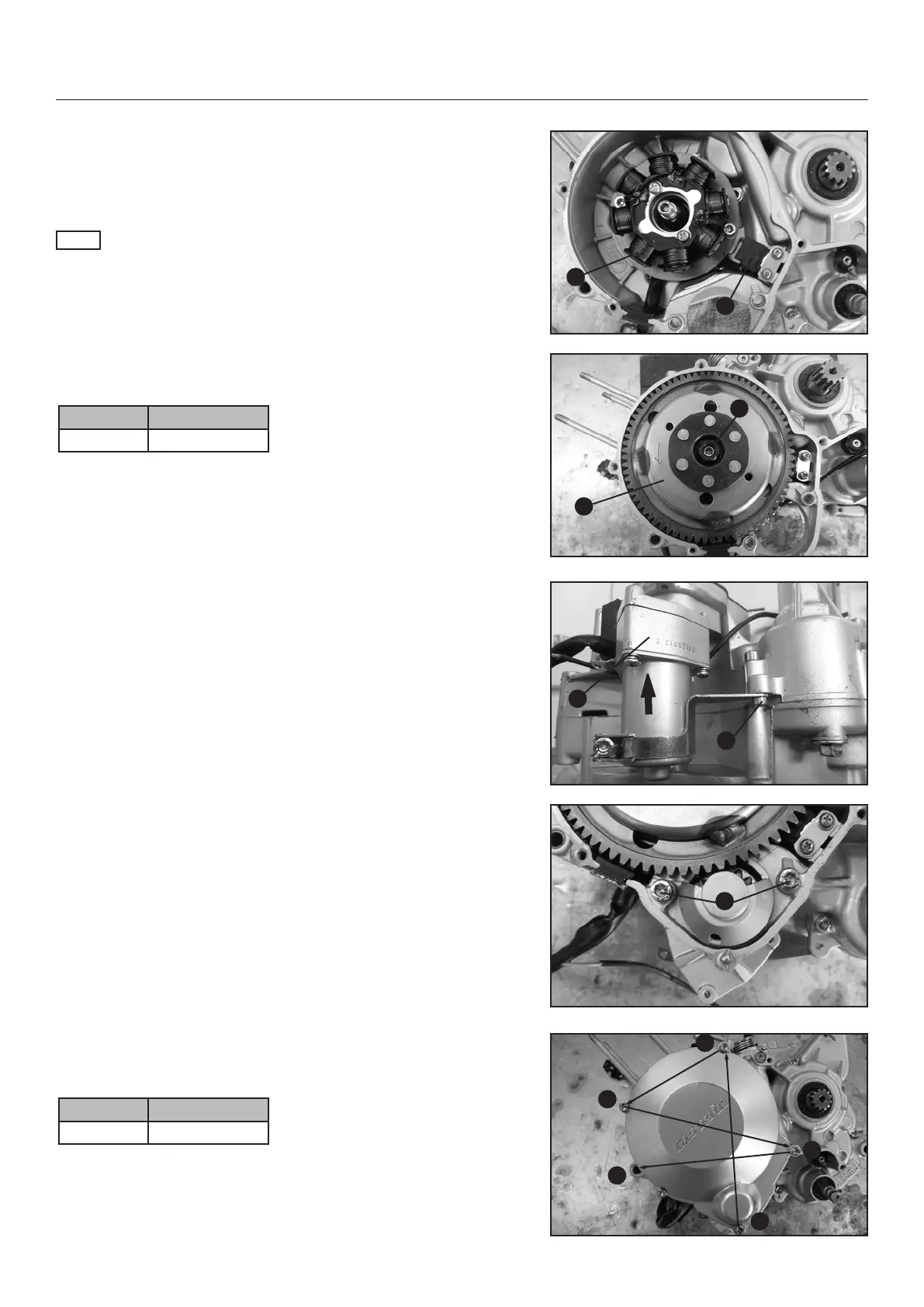

LEFT CRANKCASE ASSEMBLING
1. Install the stator (1) and the pick up (2).
Tighten the srews in specic torque.
NOTE
If there is any signal fault of generator or pick up replace the sta-
tor together with the pickup.
2. Install the starter gear (3).
3. Pull the starter (5) in the crankcase and tighten the screws (6)
in specic torque.
4. Alternately turn each bolt until nger tight.
5. Tighten the bolts in sequence (1-5) shown in the picture.
6
1
3
3
4
5
6
TORQUE LIST
PART. NO. TORQUE
4 35 - 40 Nm
TORQUE LIST
PART NO. TORQUE
1-5 10 - 12 Nm
3
4
1
5
2
