KSR Moto TRIGGER 50 - Crankcase Cover (Left) Removal

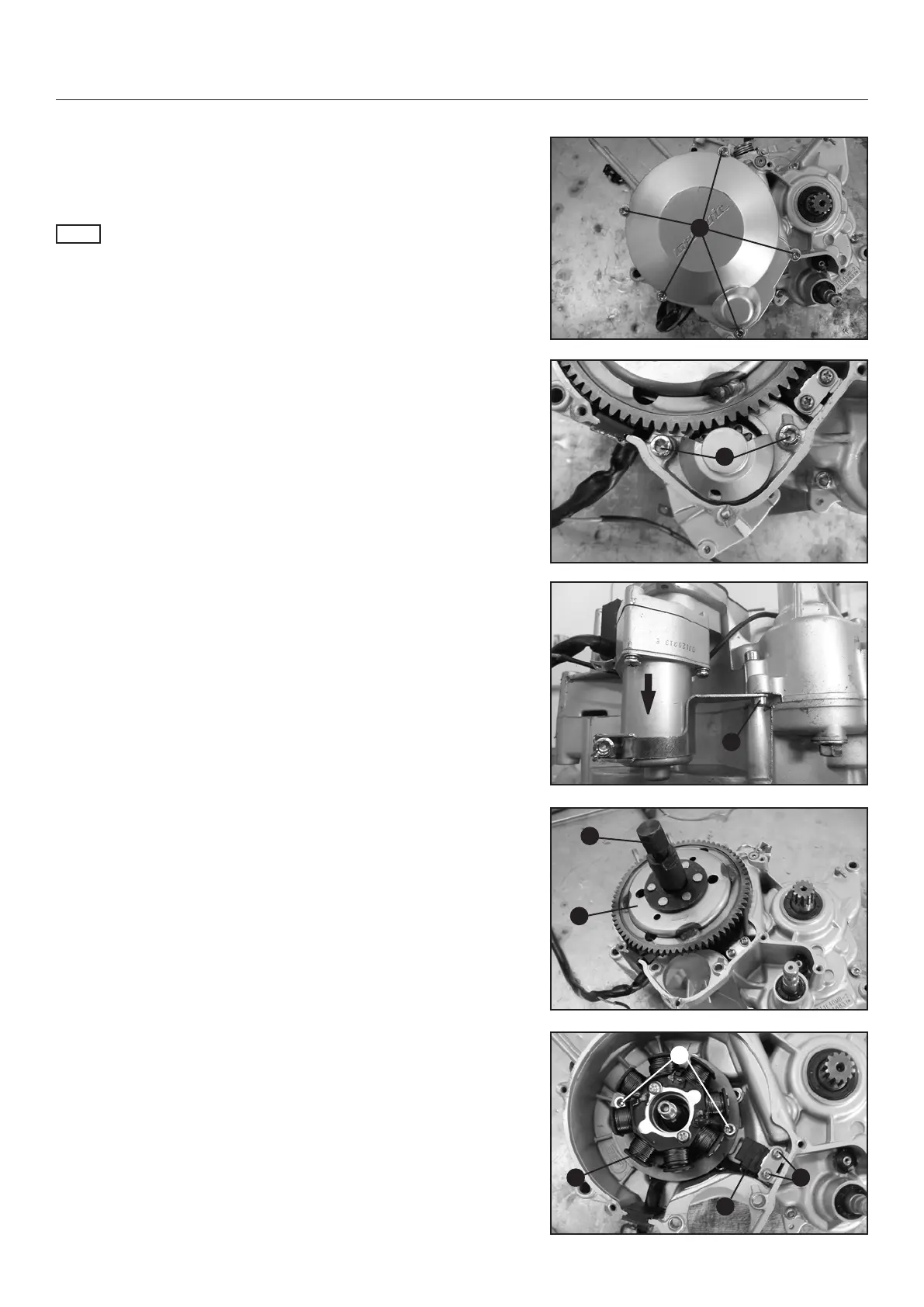

CRANKCASE COVER (LEFT) REMOVAL
1. Remove the socket head cap screws (1) to remove the left
crankcase cover.
NOTE
It´s recommended to loosen the screws crosswise before
complete removal.
STARTER REMOVAL
1. Remove the two screws (1).
1. Remove the screw (2) and pull the starter down to remove
the starter.
STARTER GEAR REMOVAL
1. Remove the starter gear nut.
2. Remove the starter gear (1) by using a puller M20x1.5 (2).
Special tool see page 12-15.
STATOR REMOVAL
1. To extend the stator (1), remove the bolts (2).
2. To extend the pick up (3), remove the screws (4).
ENGINE/ DISASSEMBLING/ LEFT CRANKCASE
