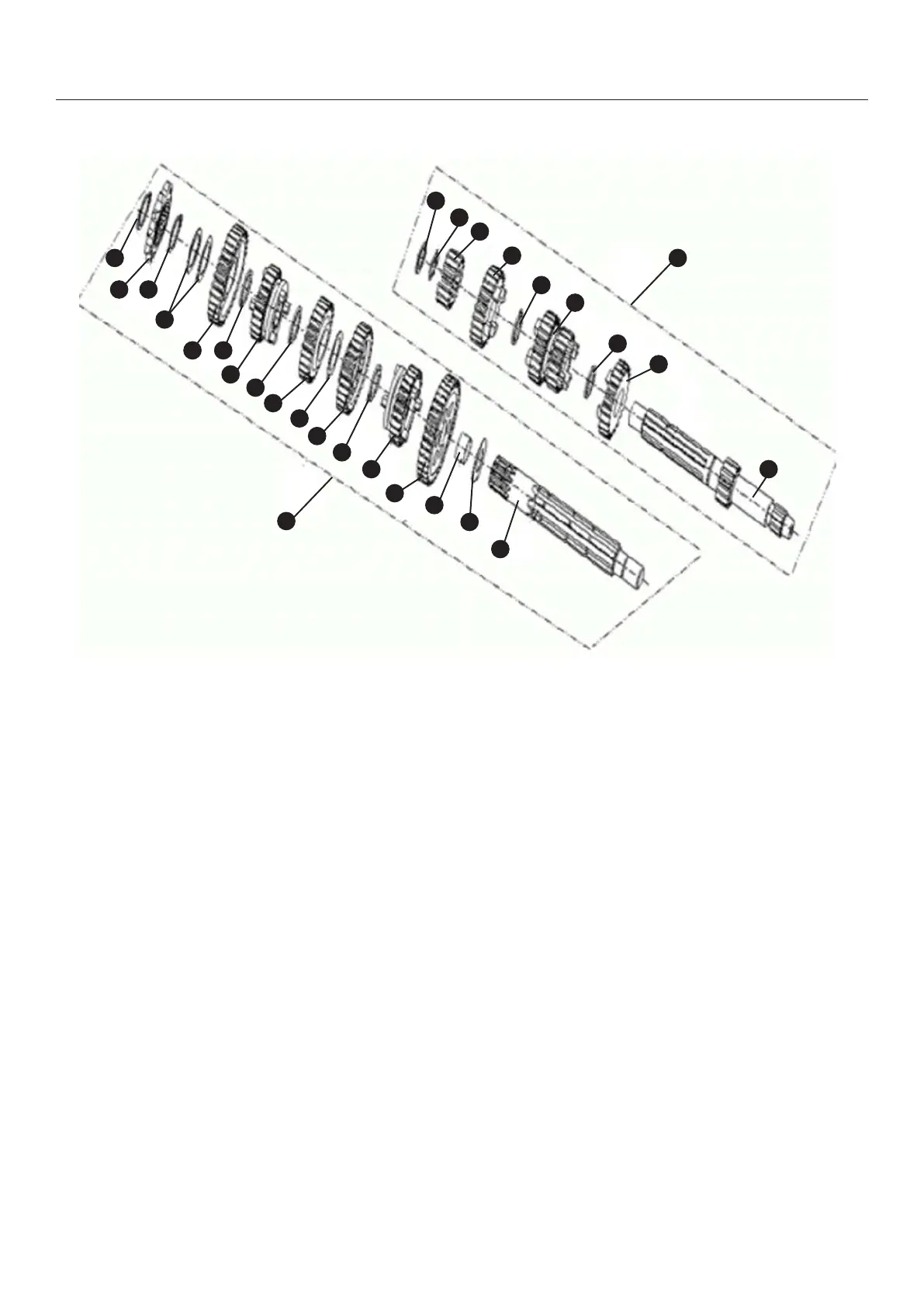

EXPLODED VIEW / PART LOCATION - PRIMARY SHAFT ASSY/SECONDARY SHAFT ASSY
ENGINE/ TRANSMISSION
71
PART LIST - PRIMARY SHAFT
ASSY/SECONDARY SHAFT ASSY
1. Primary shaft assy
2. Circlip
3. Spacer
4. Drive wheel 2nd gear
5. Drive wheel 6th gear
6. Circlip
7. Drive wheel 3rd and 4th gear
8. Drive wheel 5th gear
9. Primary shaft
10. Secondary shaft assy
11. Secondary shaft
12. Spacer
13. Bush
14. Gearwheel 1st gear
15. Gearwheel 5th gear
16. Circlip
17. Gearwheel 3rd gear
18. Spacer
19. Gearwheel 4th gear
20. Gearwheel 6th gear
21. Gearwheel 2nd gear
22. Spacer
23. Circlip
24. Engine drive sprocket 11 T
25. Circlip
5
9
8
6
7
6
3
1
4
2
10
16
15
14
13
12
11
21 16
20
16
19
18
17
25
24 23
22
