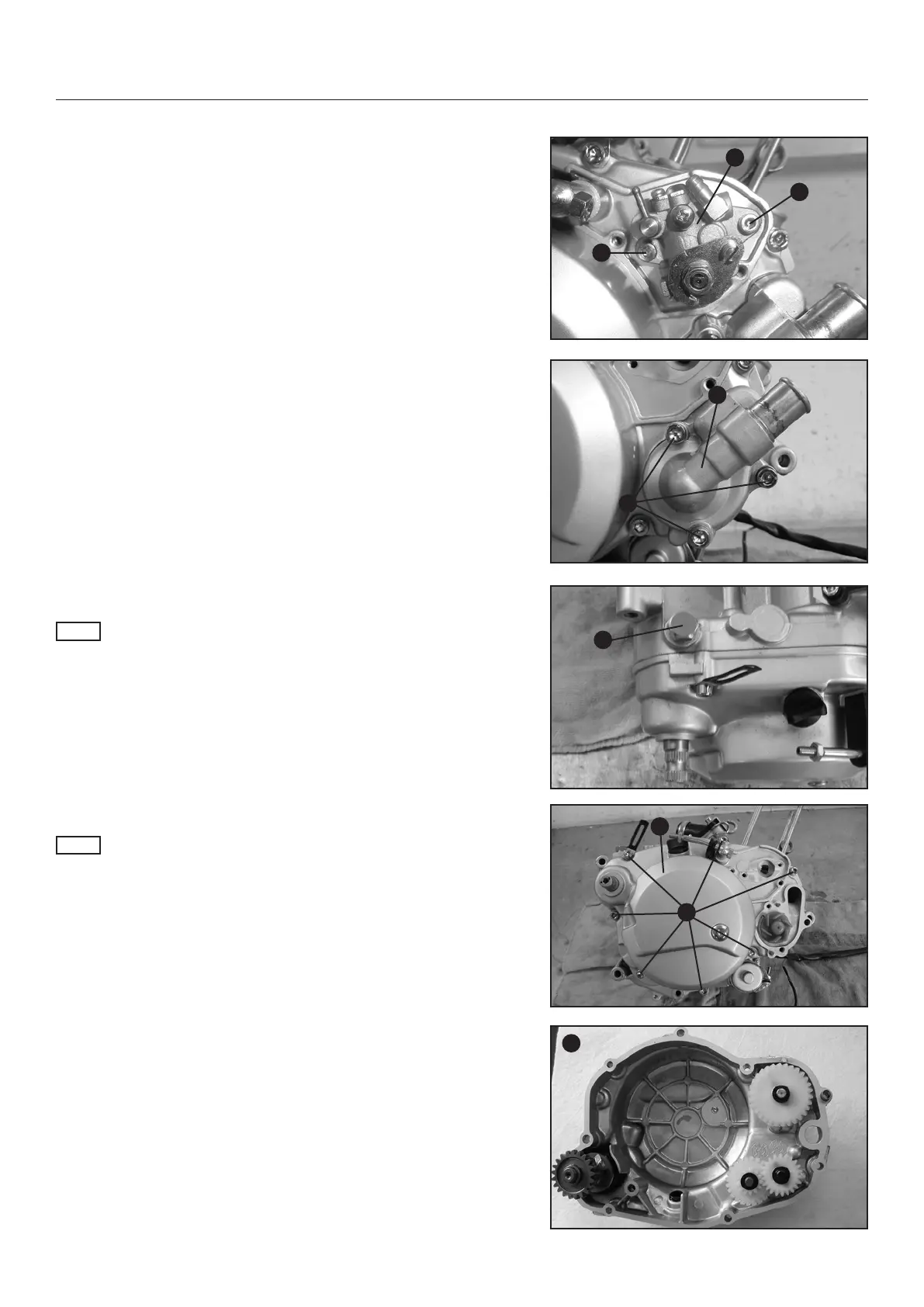

OIL PUMP REMOVAL
1. Remove the two bolts (1) and remove the oil pump (2).
WATER PUMP REMOVAL
1. Remove the three bolts (1) and remove the water pump (2).
CRANKCASE COVER (RIGHT) REMOVAL
NOTE
Drain the engine oil before start with the disassembling.
1. Remove the screw (1) to slacken the kick starter.
2. Remove the bolts (2) and detach the crank case cover (3).
NOTE
It is recommended to loosen the bolts crosswise before complete
removal.
3. Controll the gears and if a gear is damaged please renew this
one (picture 4).
ENGINE/ DISASSEMBLING/ RIGHT CRANKCASE
64
2
1
1
1
2
1
3
2
4
