FUEL SYSTEM/ CARBURETTOR
53

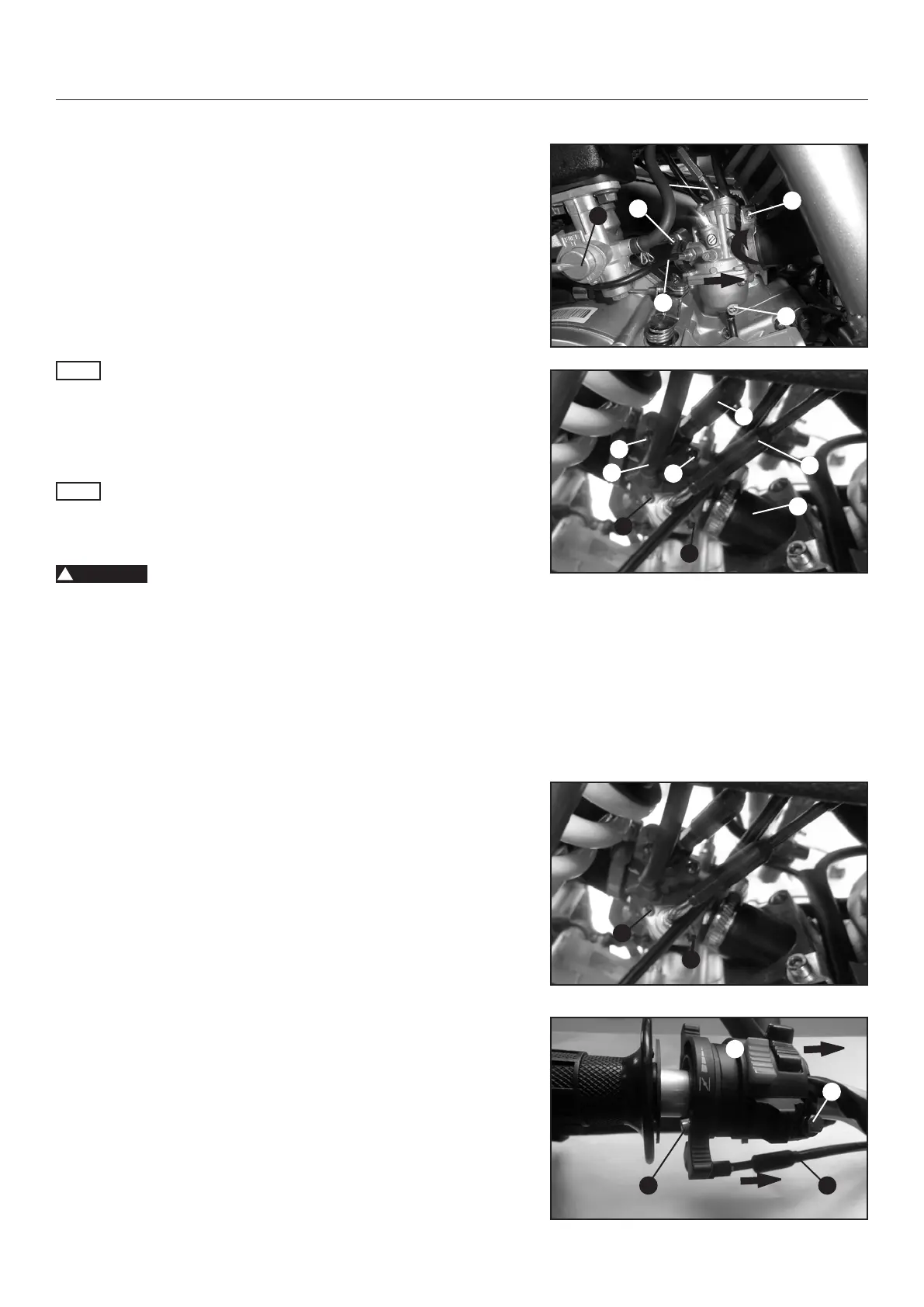

CARBURETTOR REMOVAL
1. Switch the fuel cock to “OFF” (1).
2. Empty the carburettor by opening the drain screw (2).
3. Loosen the two hose clamps (3).
4. Pull the carburetto backwards to disconnect the carburettor
from the membrane (4).
5. Turn the carburettor right and loosen the four screws (5) of
the gas wire bracket and the choke wire bracket.
6. Disconnect the carburettor from fuel line (6), gas wire (7),
choke wire (8) and the oil pump line (9).
NOTE
Take care about the fuel residues.
7. Pull out the carburettor.
8. Assembling in reversed order.
NOTE
Look to the grove on the membrane and the pin on the
carburettor.
!
WARNING
Fuel is poisonous and a health hazard.
Avoid contact between fuel and skin, eyes and clothing. Do not
inhale fuel vapours. If fuel gets into your eyes, rinse immediately
with water and contact a doctor. Wash affected skin areas imme-
diately with soap and water. If fuel is swallowed, contact a doc-
tor immediately. Change clothing that has come into contact with
fuel. Store fuel in a suitable canister according to regulations and
keep it out of the reach of children.
CHOKE/ CABLE REMOVAL
1. Switch the fuel cock to “OFF” (1).
2. Loosen the two hose clamps (3).
3. Turn the carburettor right.
4. Loosen the two screws (10).
5. Loosen the screw (11).
6. Slide the left handle switch (12) to the right.
7. Slide the choke cable (13) to the right.
8. Feed out the cable (14).
9. Assembling in reversed order.
4
5
5
5
5
6
8
7
3
3
2
1
9
10
10
11
12
1314
