KSR Moto TRIGGER 50 - Exploded View; Part Location Clutch

ENGINE/ CLUTCH
85

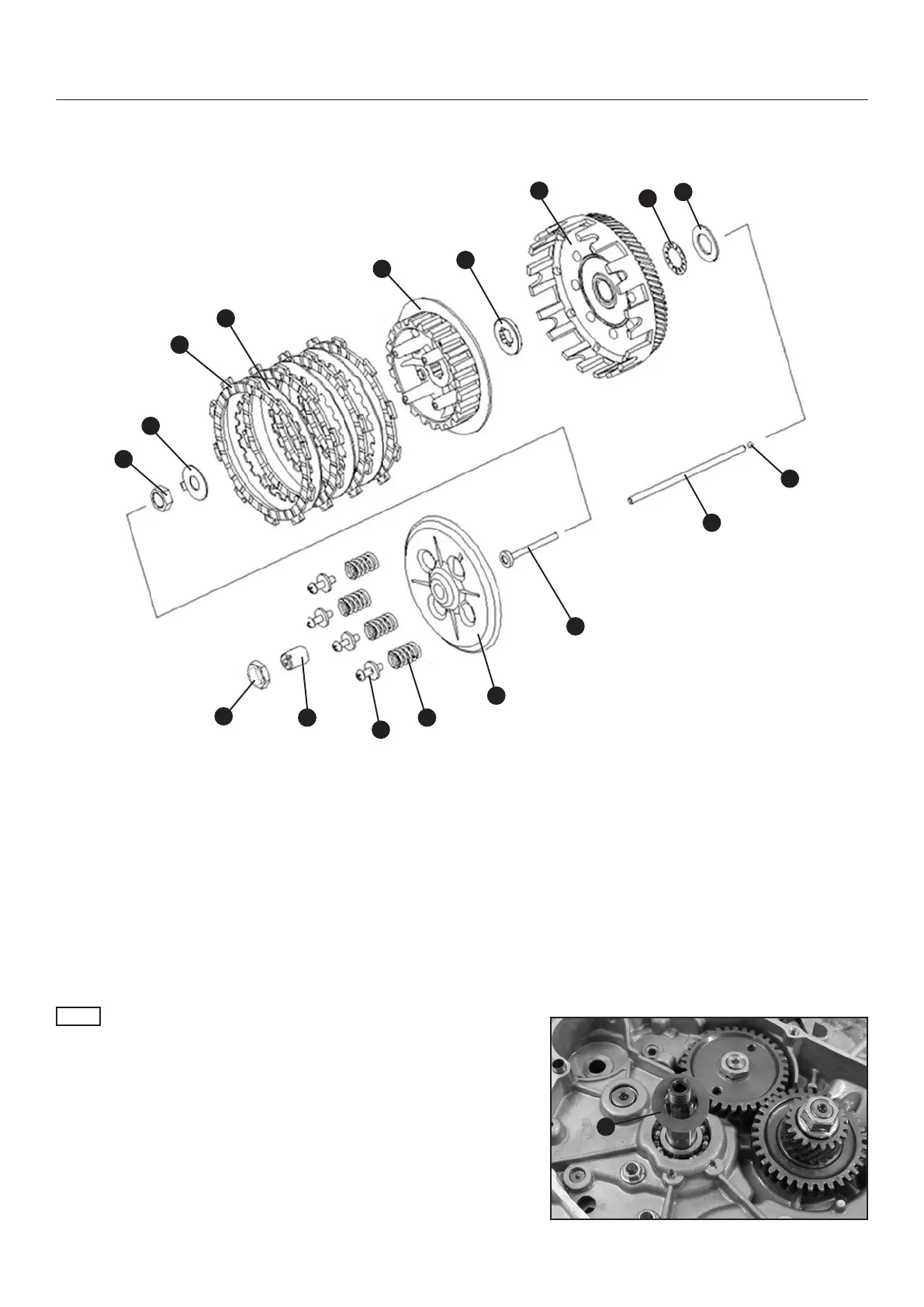

EXPLODED VIEW / PART LOCATION - CLUTCH
NOTE
Before start to assemble the clutch, install the washer (15) rst.
9
8
7
6
5
4
3
2
1
14
13
12
11
10
17
16
15
PART LIST - CLUTCH
1. Clamp nut
2. Adjustment bolt
3. Bolt and gasket
4. Pressure spring
5. Pressure cover
6. Outward release lever
7. Locknut
8. Fixing gasket
9. Wearing plate
10. Iron friction plate
11. Center
12. Internal gasket
13. Housing set
14. Dish gasket
15. Washer
16. Bearing ball
17. Inward release lever
