BRAKES
96

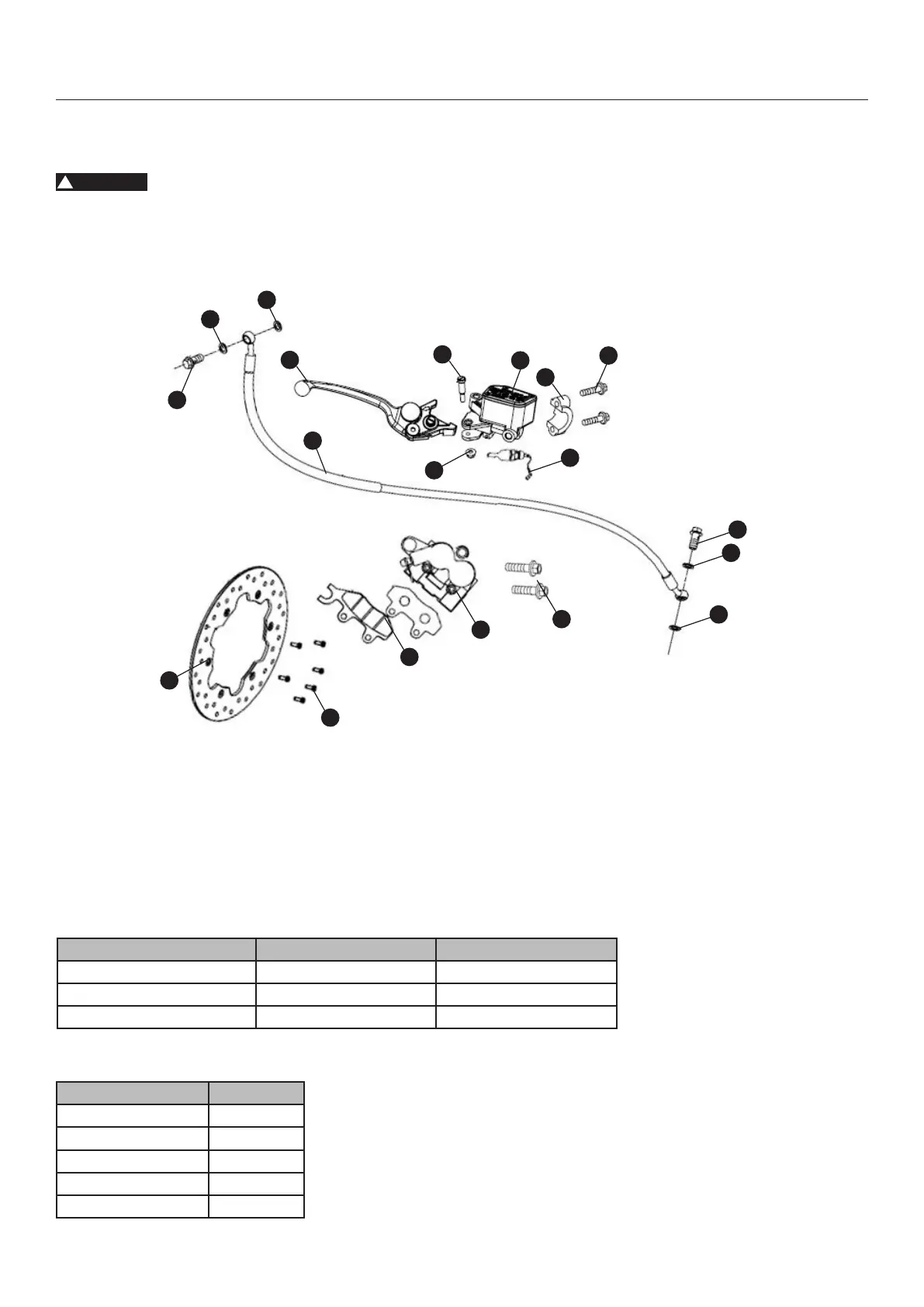

EXPLODED VIEW / PART LOCATION - FRONT BRAKE
!
WARNING
THE BRAKING COMPONENTS MAY NOT BE SPOIL
BY OIL DURING INSTALLATION OR DISASSEMBLY.
RINSE WITH STIPULATED CLEANING AGENT IN ORDER TO
AVOID REDUCTION OF BRAKING QUALITY.
SPECIFICATION
TORQUE LIST
PART LIST - FRONT BRAKE
1. Brake lever
2. Brake lever bolt
3. Nut M 6
4. Brake light switch
5. Master brake cylinder
6. Master brake cylinder clamp
7. Clamp bolt M 6 x 23
8. Banjo bolt
9. Gasket
10. Brake hose
11. Brake calliper bolts M 8 x 30
12. Brake calliper with anchor plate
13. Brake pads
14. Brake disc bolts M 6 x 16
15. Brake disc
ITEM STANDARD VALUE [mm] ALLOWABLE LIMIT [mm]
Thickness of front brake disc 4.0 3.0
Thickness of front brake pads 4.5 3.0
Diameter of front brake disc 280 -
PART NO. TORQUE
Front brake / No. 2 3 Nm
Front brake / No. 7 5 - 9 Nm
Front brake / No. 8 22- 24 Nm
Front brake / No. 11 22- 29 Nm
Front brake / No. 14 22 - 29 Nm
For screws that are not listed use standard values (page 9).
1
2
3
4
5
6
7
8
8
9
9
9
9
10
11
12
13
15
14
