KSR Moto TRIGGER 50 - Exploded View; Part Location - Crankcase

ENGINE
59

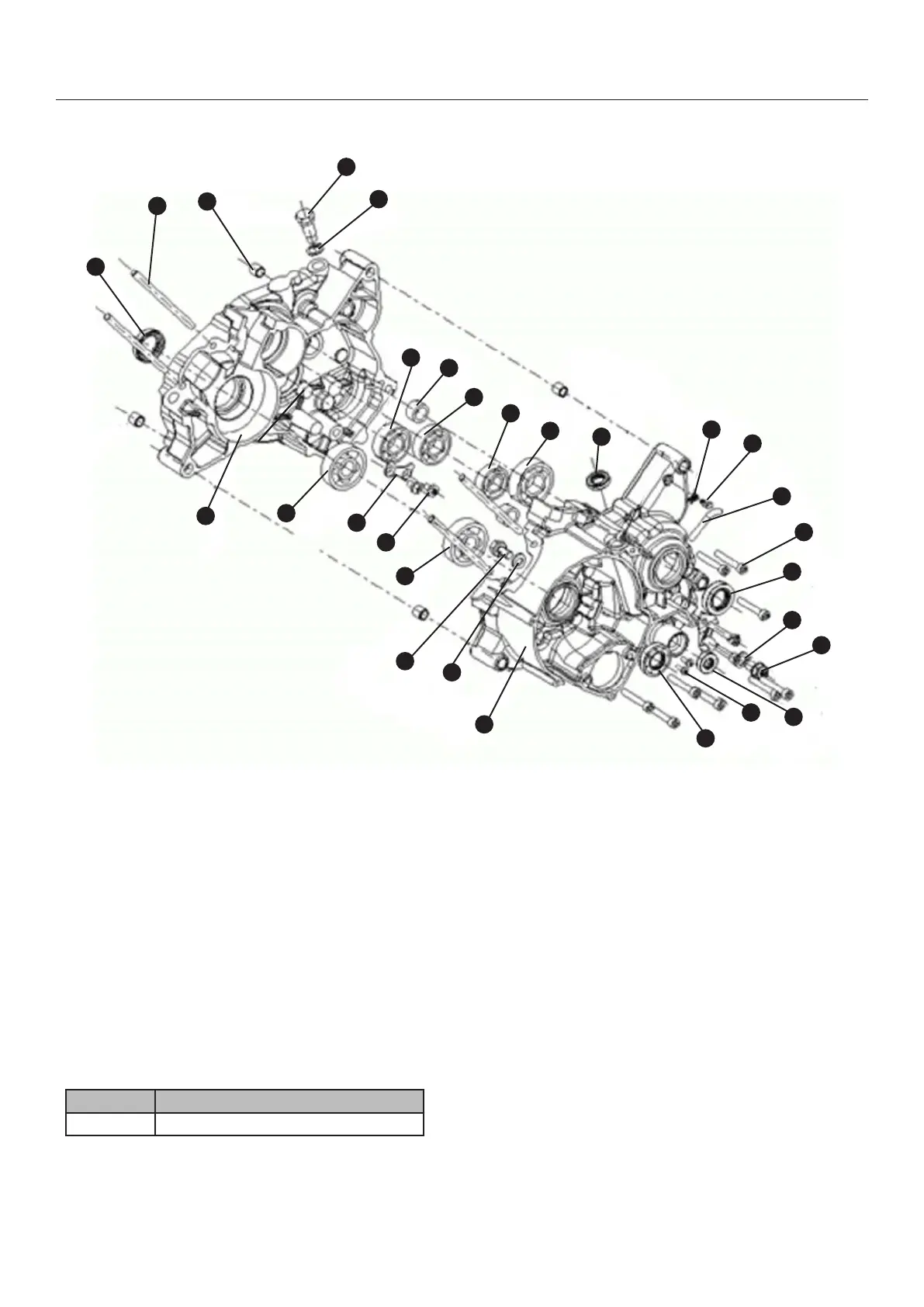

EXPLODED VIEW / PART LOCATION - CRANKCASE
SPECIAL TOOLS
See page 12-15
TORQUE LIST
For screws that are not listed use standard values (page 11).
PART. NO. TORQUE
11 8 - 12 Nm
6
5
3
4
3
2
1
8
7
9
13
12
11
10
19
18
17
16
15
14
21
23
22
21
20
27
26
25
24
PART LIST - CRANKCASE
1. Nut
2. Seal ring
3. Bearing 6203
4. Needle bearing
5. Bearing 6202
6. Bearing
7. Simmering 13.7x24x5
8. Hose clamp
9. Engine breather connection
10. Breather hose
11. Nut M6x55
12. Simmering 20x35x7
13. Seal ring
14. Neutral switch gear
15. Simmering 12x22x7
16. Tapping screw
17. Simmering 17x35x7
18. Crankcase left
19. Seal ring
20. Nut M8x12
21. Main bearing
22. Nut M6x12
23. Locking plate
24. Crankcase right
25. Simmering 24x35x7
26. Stud
