KSR Moto TRIGGER 50 - Page 97

BRAKES
97

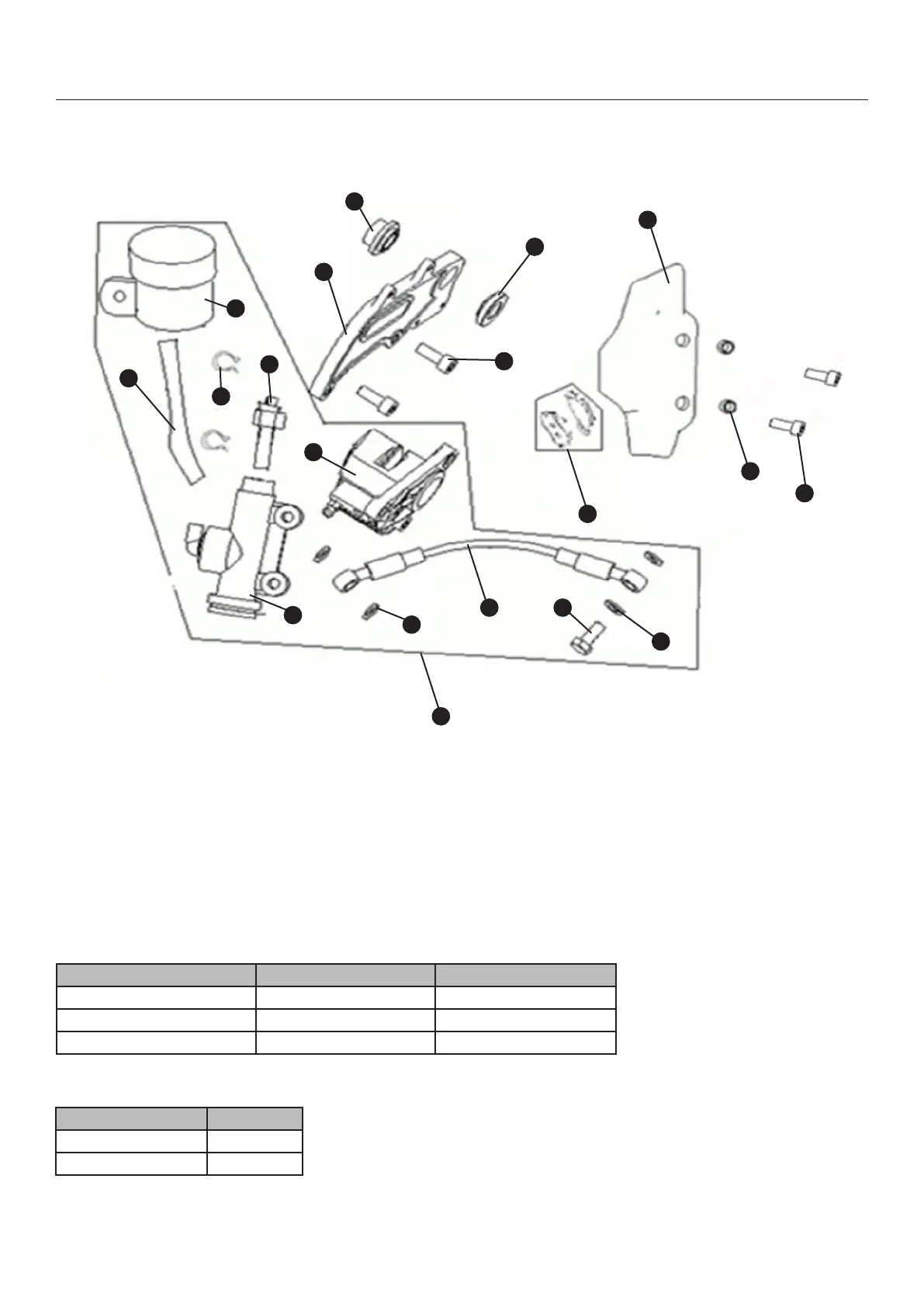

EXPLODED VIEW / PART LOCATION - REAR BRAKE
SPECIFICATION
TORQUE LIST
For screws that are not listed use standard values (page 9).
PART NO. TORQUE
Rear brake / No. 10 22-24 Nm
Rear brake / No. 15 22-29 Nm
PART LIST-REAR WHEEL
1. Brake system
2. Brake uid reservoir
3. Brake line
4. Clamp
5. Brake light switch
6. Master cylinder
7. Caliper
8. Seal
9. Brake line
10. Banjo bolt
11. Seal
12. Distance caliper
13. Adapter plate
14. Distance caliper
15. Nut M8x20
16. Brake pads
17. Cover master cylinder
18. Bush
19. Nut M6x20
9
8
7
6
5
4
3
2
1
16
15
14
13
12
10
11
18
17
19
ITEM STANDARD VALUE [mm] ALLOWABLE LIMIT [mm]
Thickness of front brake disc 4.0 3.0
Thickness of front brake pads 4.5 3.0
Diameter of front brake disc 280 -
