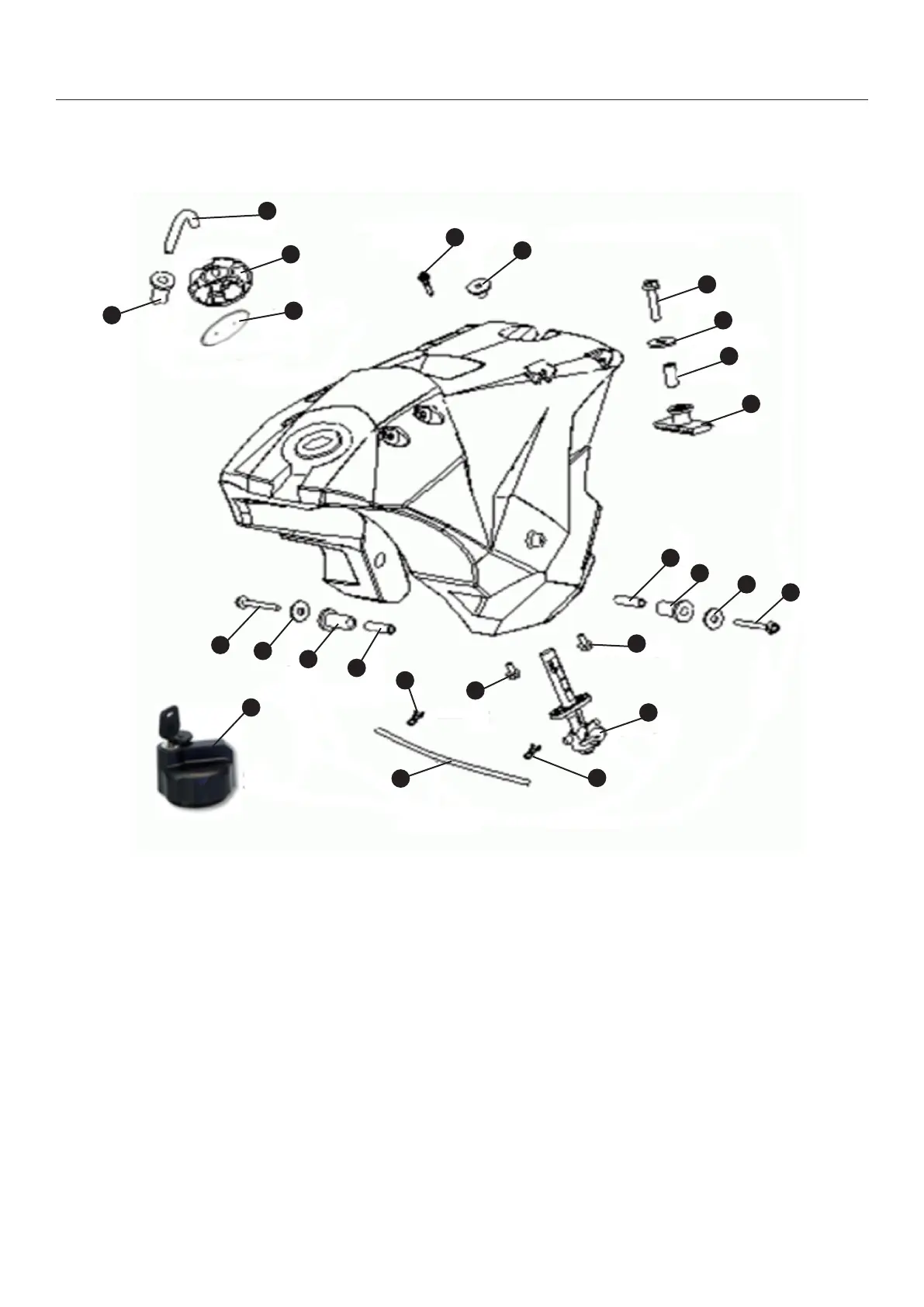

EXPLODED VIEW / PART LOCATION - FUEL SYSTEM
FUEL SYSTEM/ FUEL TANK
50
PART LIST FUEL SYSTEM
1. Screw M8x40
2. Washer M8
3. Sleeve
4. Rubber pad
5. Sleeve
6. Bush
7. Washer
8. Screw M6x55
9. Screw M6x12
10. Petcock
11. Hose clamp
12. Fuel hose
13. Tank closure
14. Fuel tank cap gasket
15. Tank closure
16. Breather hose
17. Disposable breather hose
18. Screw M4×20
19. Bracket
7
8
4
3
2
1
6
9
5
17
15
14
13
11
12
11
19
18
16
10
5
8
7
6
9
