8 Electrical installations (continued)
119 of 206
BA KR 6, 16 F, KR C4 12.10.07 en
Arm
Rotating column
Base frame
X30
Bolt
Bolt
Bolt
XM6 XM5 XM4 XM3 XM2 XM1
MFHRDC box
X30
X02
Push--in module
Ground conductor cross--sections 10 mm
2

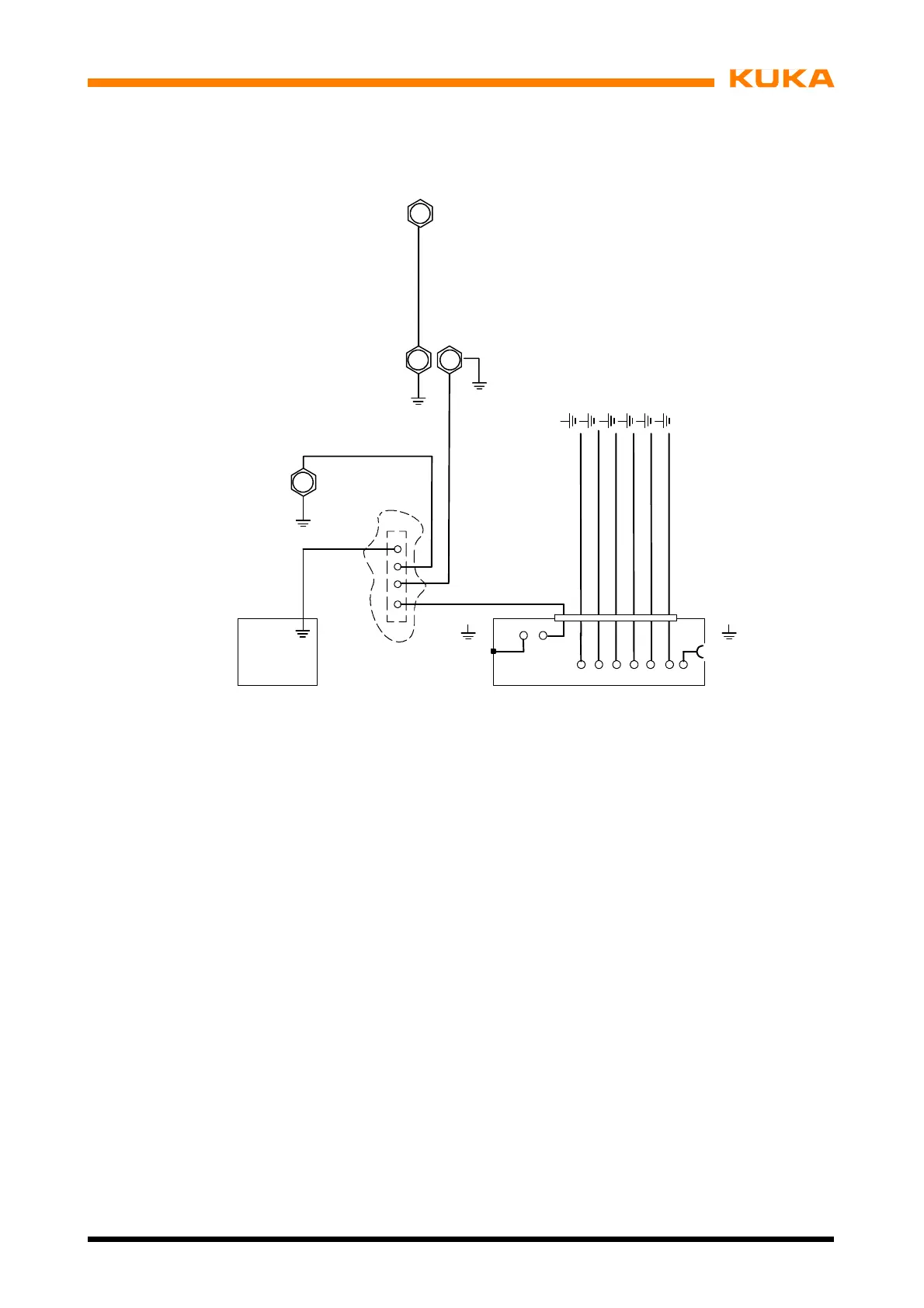

Fig. 89 Ground conductor installation, protective circuit
