Kuka KR 6-2 - Main Axis Motor Units A1 to A3

Operating Instructions
18 of 206
BA KR 6, 16 F, KR C4 12.10.07 en
3.4.1 Main axis motor units A1 to A3

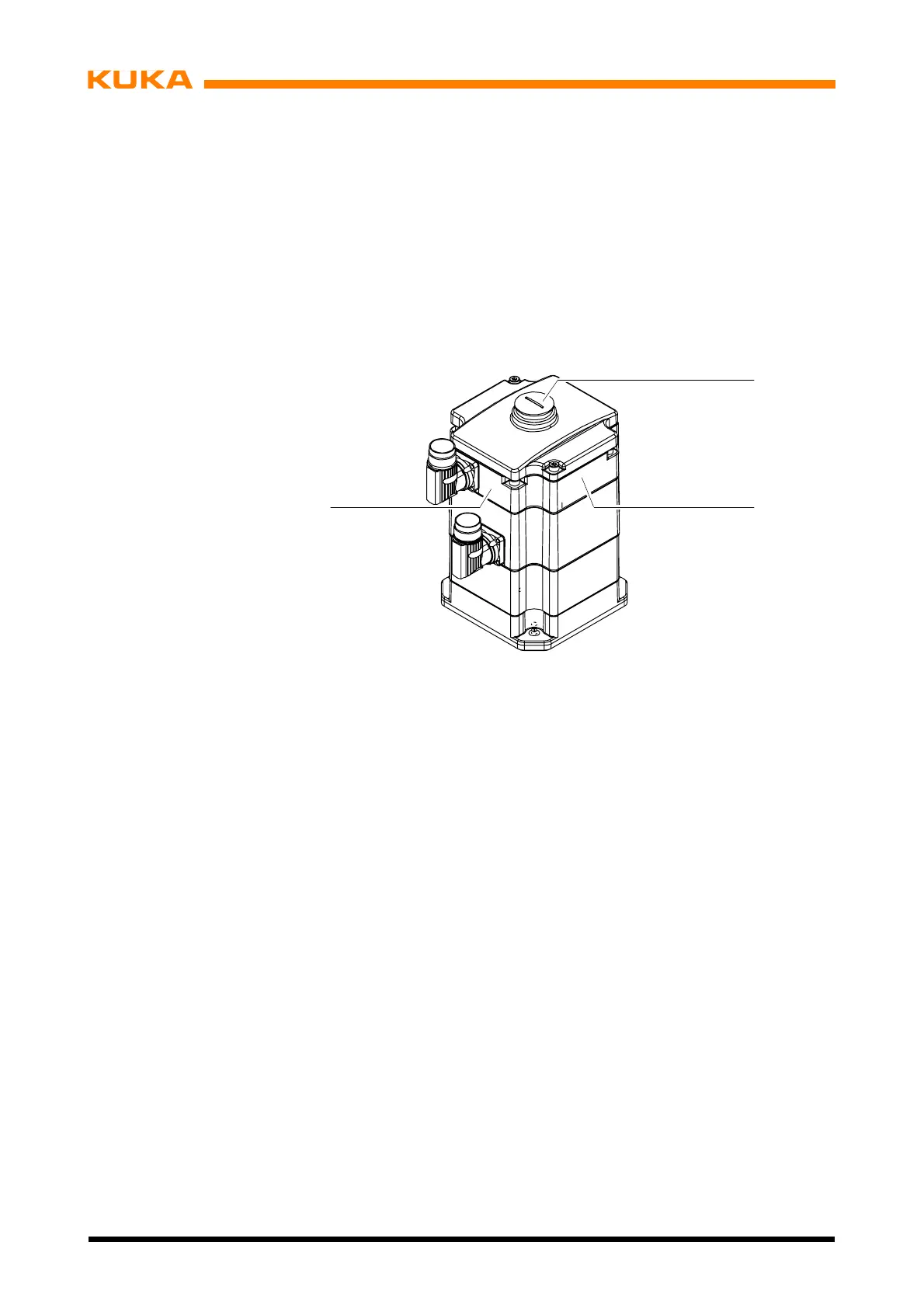

Axes 1, 2 and 3 are driven by motor units as shown in Fig. 8. Each motor unit for the main
axis drives consists of a brushless AC servomotor (1) with a permanent--magnet single--disk
brake (3) and hollow--shaft resolver (2), both integrated.
The main axis motor units for axes 1, 2 and 3 are of the same design, though the motor unit
for axis 3 is smaller.
1
2
3
1ACservomotor
2 Hollow--shaft resolver
3 Permanentmagnet single--disk brake
Fig. 8 Motor unit for main axis drive
