Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-3-52
U403 Scan Margin Tbl
Description
Adjusts margins for scanning the original on the contact glass.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display Description
Setting
range
Initial
setting
Change in
value per step
A Margin Scanner left margin. 0.0 to 10.0 2.0 0.5
B Margin Scanner leading edge margin. 0.0 to 10.0 2.0 0.5
C Margin Scanner right margin. 0.0 to 10.0 2.0 0.5
D Margin Scanner trailing edge margin. 0.0 to 10.0 2.0 0.5
6. Change the setting value using change the cursor right/left keys or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.

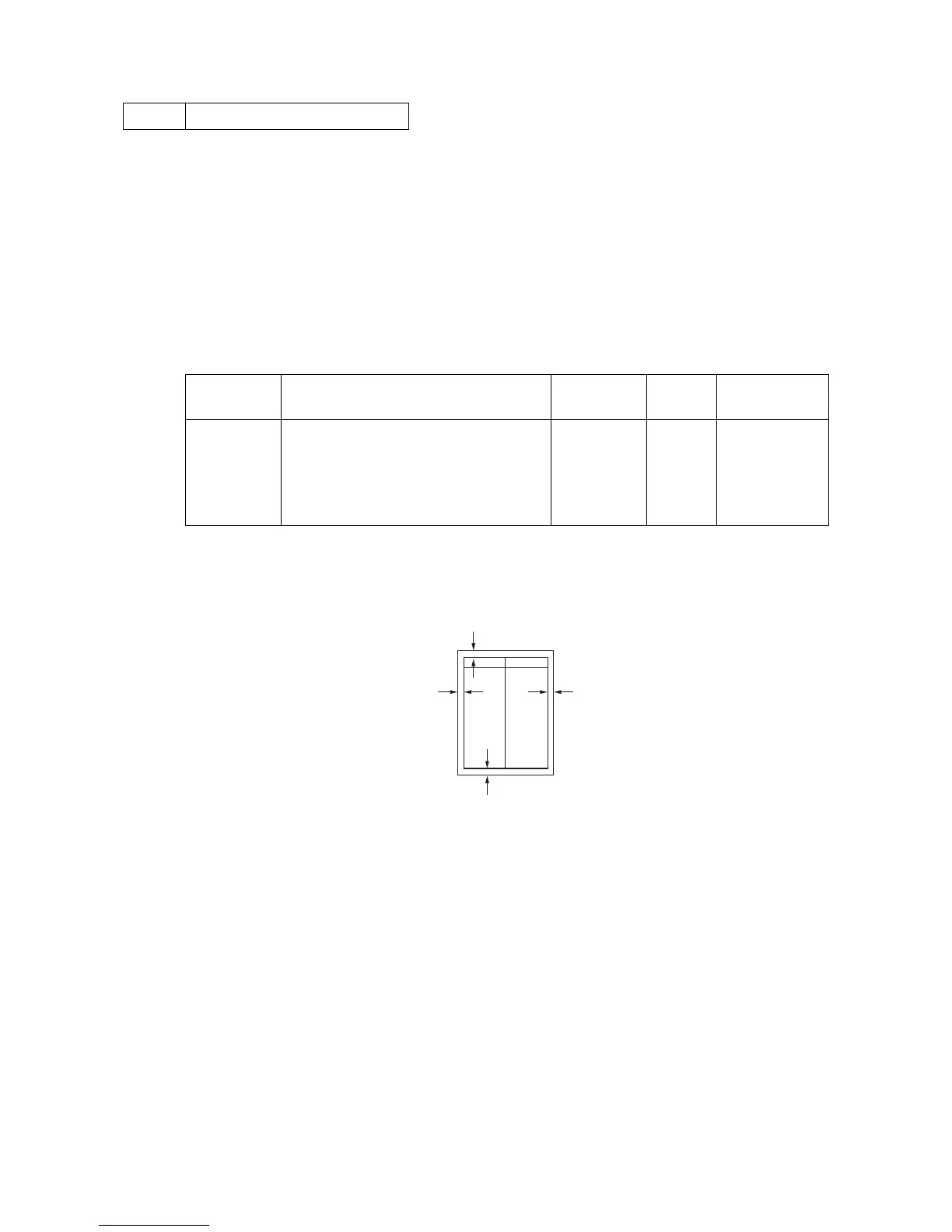

Figure 1-3-14
7. Press the start key. The value is set.
Caution
If the above adjustment does not optimize the margins, perform the following maintenance modes.
U034 -------- U402 -------- U403
(P.1-3-24) (P.1-3-51)
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Leading edge margin of the copy image
(3.0 ±2.5 mm)
Left margin of
the copy image
(2.5 +1.5/-2.0 mm)
Right margin of
the copy image
(2.5 +1.5/-2.0 mm)
Trailing edge margin of the copy image
(3.0 ±2.5 mm)

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
