Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-90

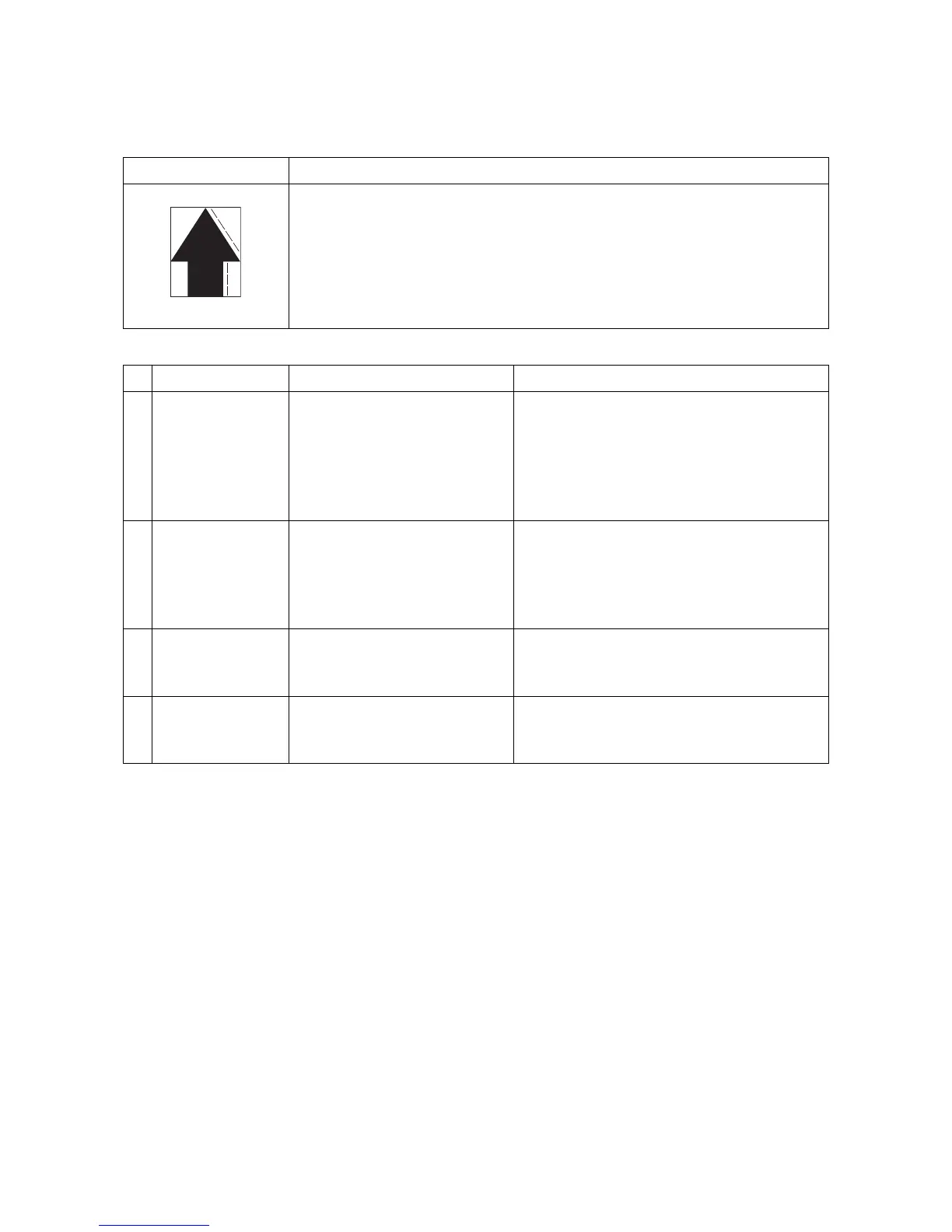

(16) mage is blurred (Shifted transferring).
Print example Cause of trouble
1. The paper used does not conform to the requirement.
2. Imbalanced fuser unit pressures.
Defective part Check description Corrective Action
1
Paper 1. Check that the type of the
paper used falls within the
range of specifications.
2. Check the settings of the
type and weight of the paper.
1. If the type of the paper being used falls
outside the requirements, replace and use
a suitable type of paper.
2. If the settings made for the paper being
used is inadequate, configure the settings
according to the paper being used.
2
Fuser unit 1. Check the fuser pressure
balance.
2. Check if the fuser paper-
inserting guide is deformed.
1. If the pressures at the front and rear are
unbalanced, replace the fuser unit.
(see page 1-5-44)
2. If the fuser unit is deformed, replace.
(see page 1-5-44)
3
Paper conveying
motor
Check to see if the driving mech-
anism for paper conveying is
operative without a hinderance.
If the drive does not operate normally, apply
grease.
4
Paper conveying
guide
The paper conveying guide is
deformed.
If the paper conveying guide is deformed,
replace the paper conveying guide.

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
