Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-92
(12)Detaching and refitting the left middle cover and the waste toner box cover
Procedure

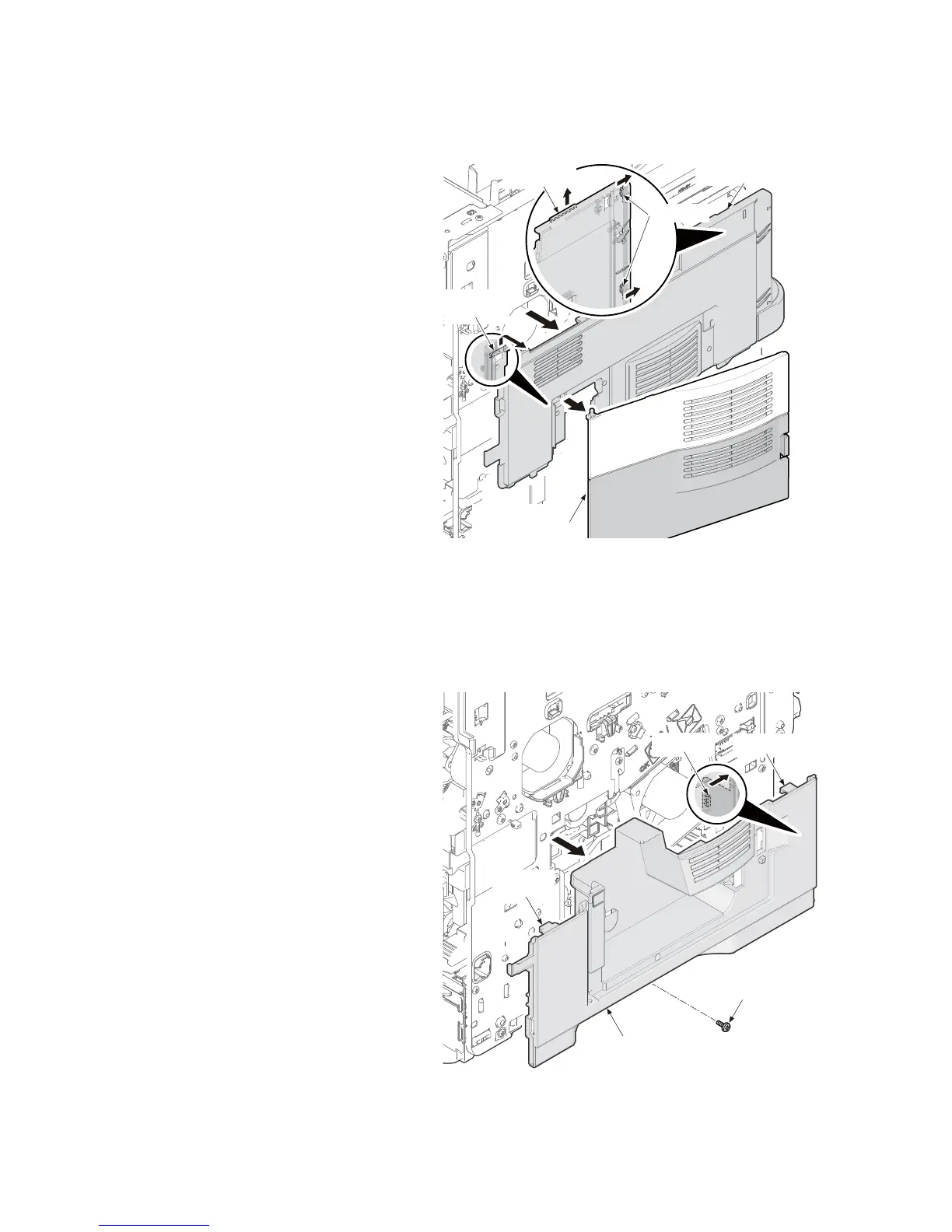

1. Release the hook A by sliding the left
upper cover upward.
2. Release the hook B and hook C and
then remove the left middle cover and
the waste toner box cover.
Figure 1-5-157
(13)Detaching and refitting the left lower cover
Procedure
1. Remove the screw.
2. Release the hook A.
3. Release two hooks B by sliding the left
lower cover upward and then remove
the left lower cover.
Figure 1-5-158
Left middle cover
Hook A
Waste toner
box cover
Hooks B
Hook C
Screw
Hook B
Hook B
Left lower cover
Hook A
