Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-1-9

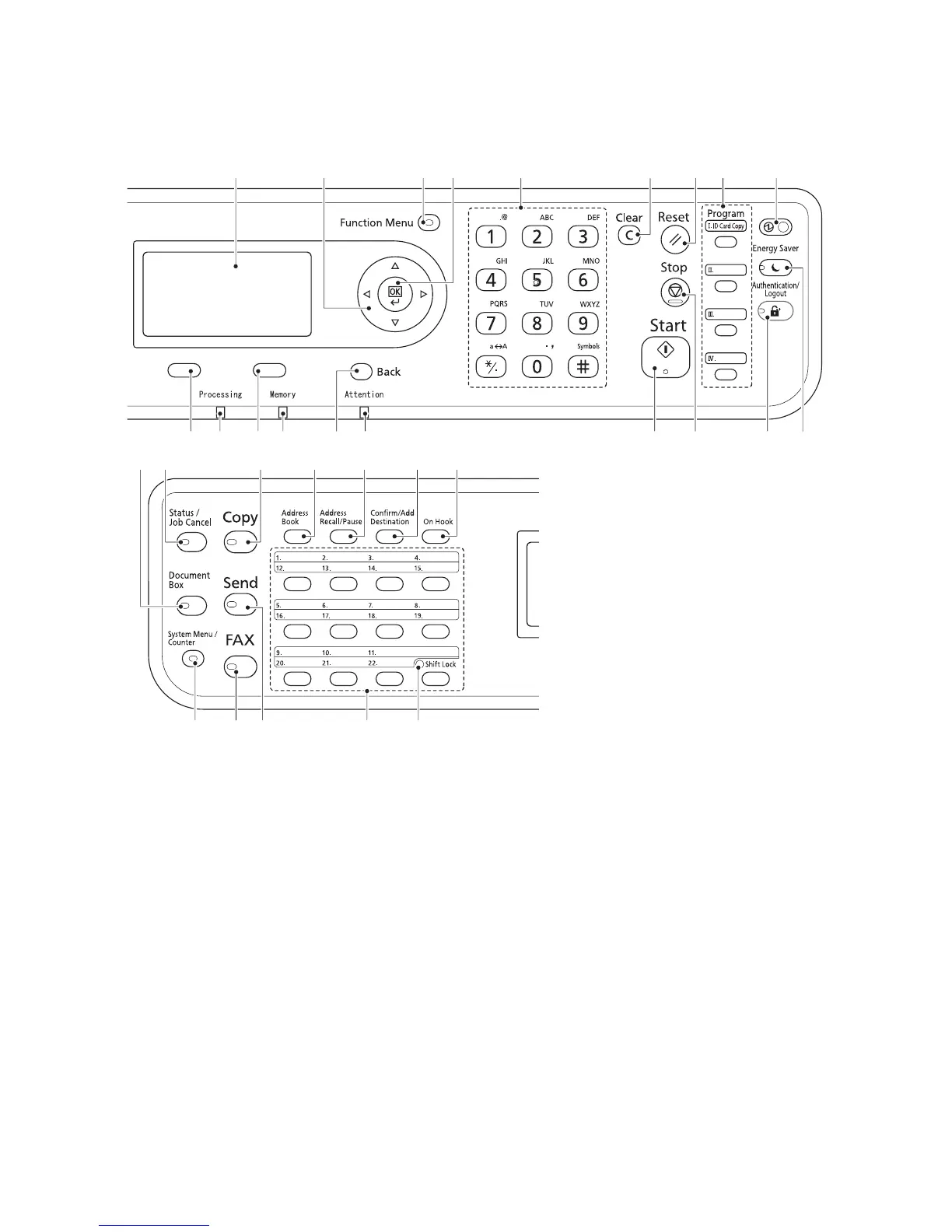

(4) Operation panel
(4-1) Basic model
Figure 1-1-5
14 198 95 6 10
1 11 16 174 3 12 132
157 18
26 27 28 29232021
25 24 31 3022
1. LCD
2. Arrow key
3. OK key
4. Function Menu key
5. Select key(Left)
6. Select key(Right)
7. Back key
8. Processing Indicator
9. Memory Indicator
10. Attention Indicator
11. Numeric keys
12. Clear key
13. Reset key
14. Start key
15. Stop key
16. Program key
17. Power Indication
18. Energy Saver key
19. Authentication/Logout key
20. Status/Job Cancel key
21. Document Box key
22. System Menu/Counter key
23. Copy key
24. Send key
25. FAX key
26. Address Book key
27. Address Recall/Pause key
28. Confirm/Add Destination key
29. On Hook key
30. Sift Lock Indicator
31. One Touch key

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
