Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-4-83

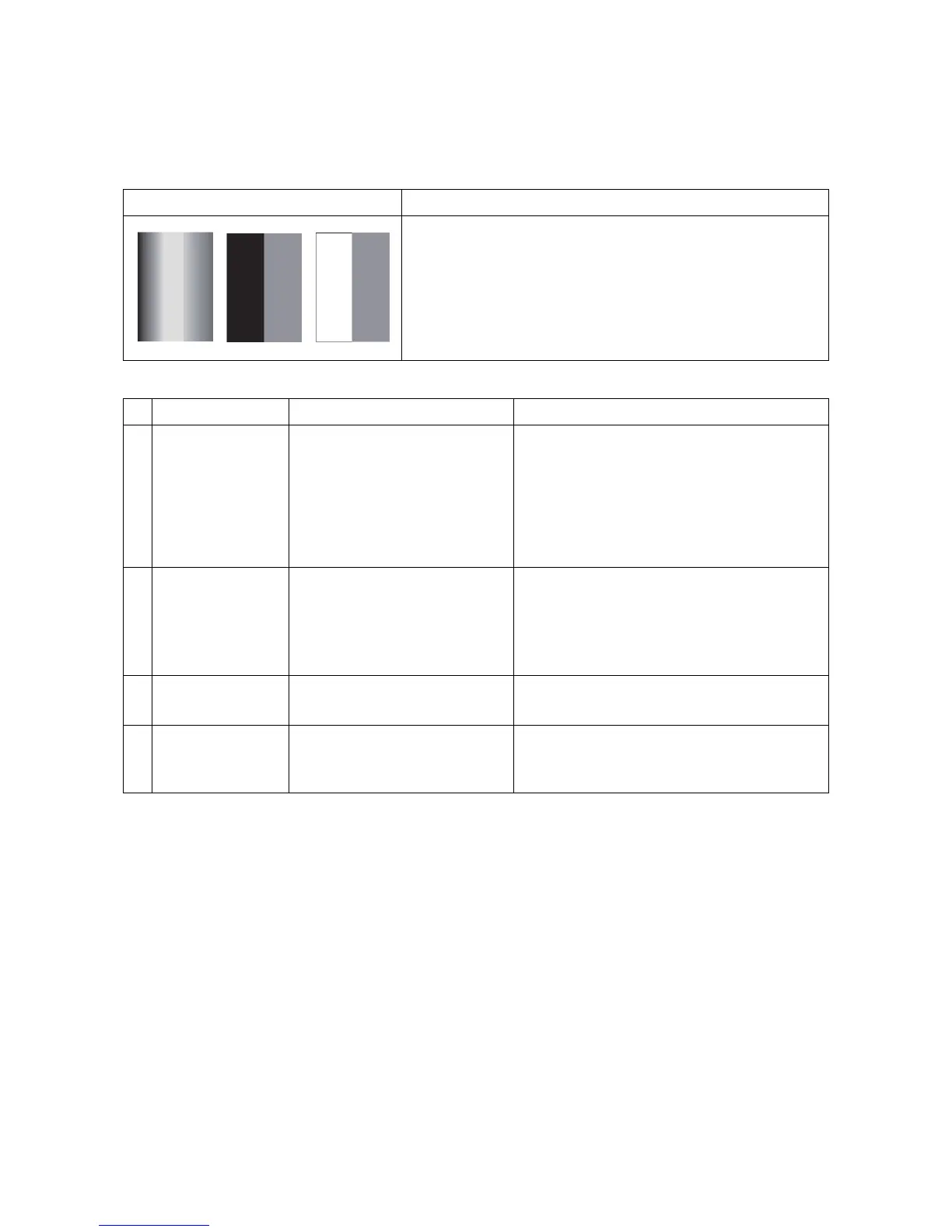

(8) Uneven density longitudinally.
Print example Cause of trouble
1. Dirty LSU inside
2. The transfer roller is not pressed against the drum properly.
3. Drum condensation.
Defective part Check description Corrective Action
1
Transfer roller unit Check that the transfer roller unit
is properly fit.
1. If it is not fixed properly, fix it properly.
2. If the rear cover has not been cloed, check
how the conveying guide is locked and
open the conveying guide once, then
close.
3. Replace the transfer roller unit.
(see page 1-5-38)
2
Drum unit 1. Check toner is evenly
layered on its surface.
2. Check whether the device
has been operated under a
highly humid environment.
1. Execute drum refreshing.
2. Install a cassette heater.
3. Replace the drum unit. (see page 1-5-36)
3
Developer unit Check that toner is evenly lay-
ered on the developer roller.
Replace the developer unit.. (see page 1-5-30)
4
LSU The emission of laser dispersed
from the LSU is not even. (Mirror
is dropped off inside.)
Replace the LSU. (see page 1-5-25)

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
