Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-38
(1-1) Detaching and refitting the transfer roller
Procedure
1. Remove the drum unit.
(See page 1-5-34)
2. Release four hooks by sliding to left the
paper chute guide.
3. Remove the paper chute guide upward.

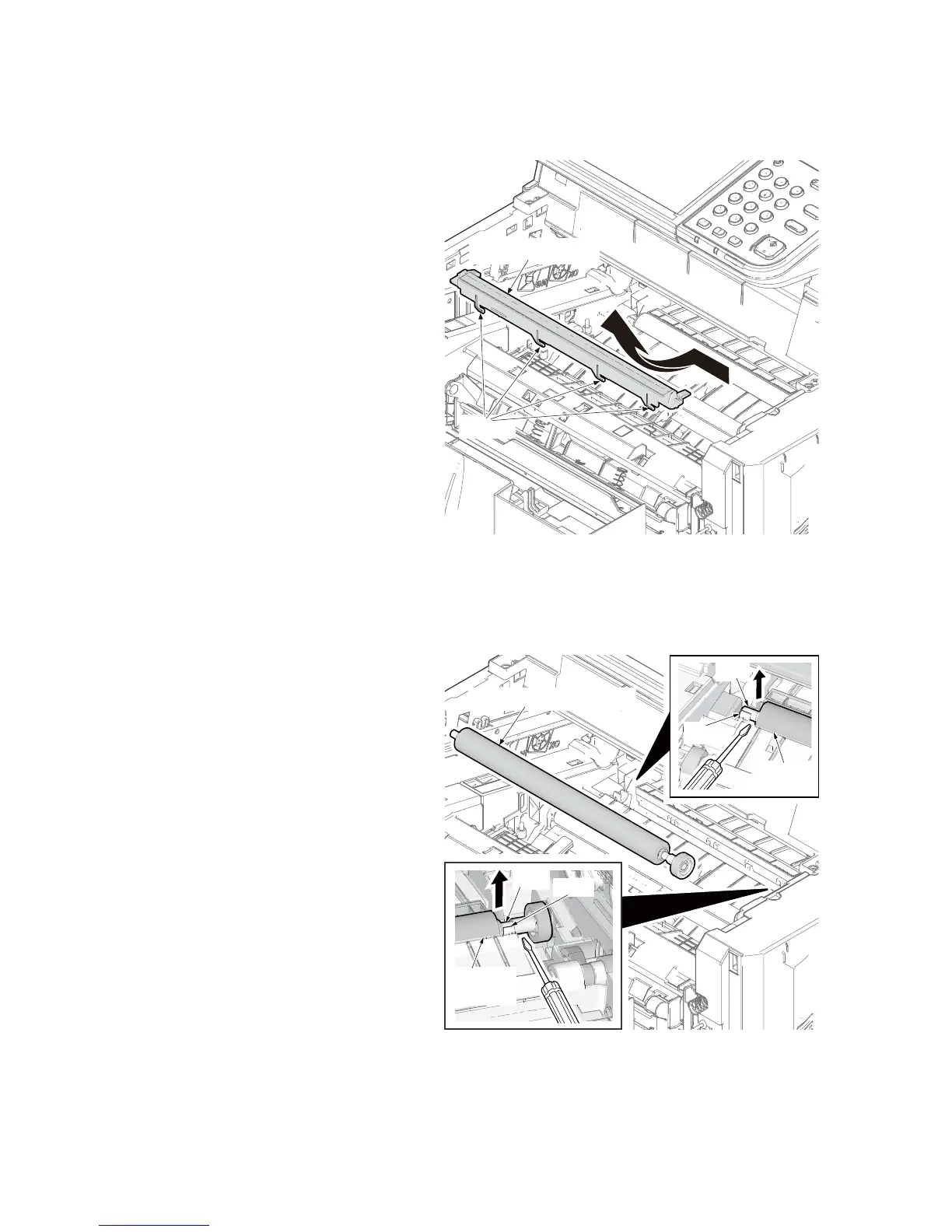

Figure 1-5-63
4. Remove the axes of transfer roller from
each bush.
5. Remove the transfer roller assembly
upward.
6. Check or replace the transfer roller
assembly and refit all the removed
parts.
Figure 1-5-64
Paper shute guide
Hooks
Bush
Axis
Transfer
roller
Axis
Transfer
roller
Bush
Transfer roller assembly
