Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-63

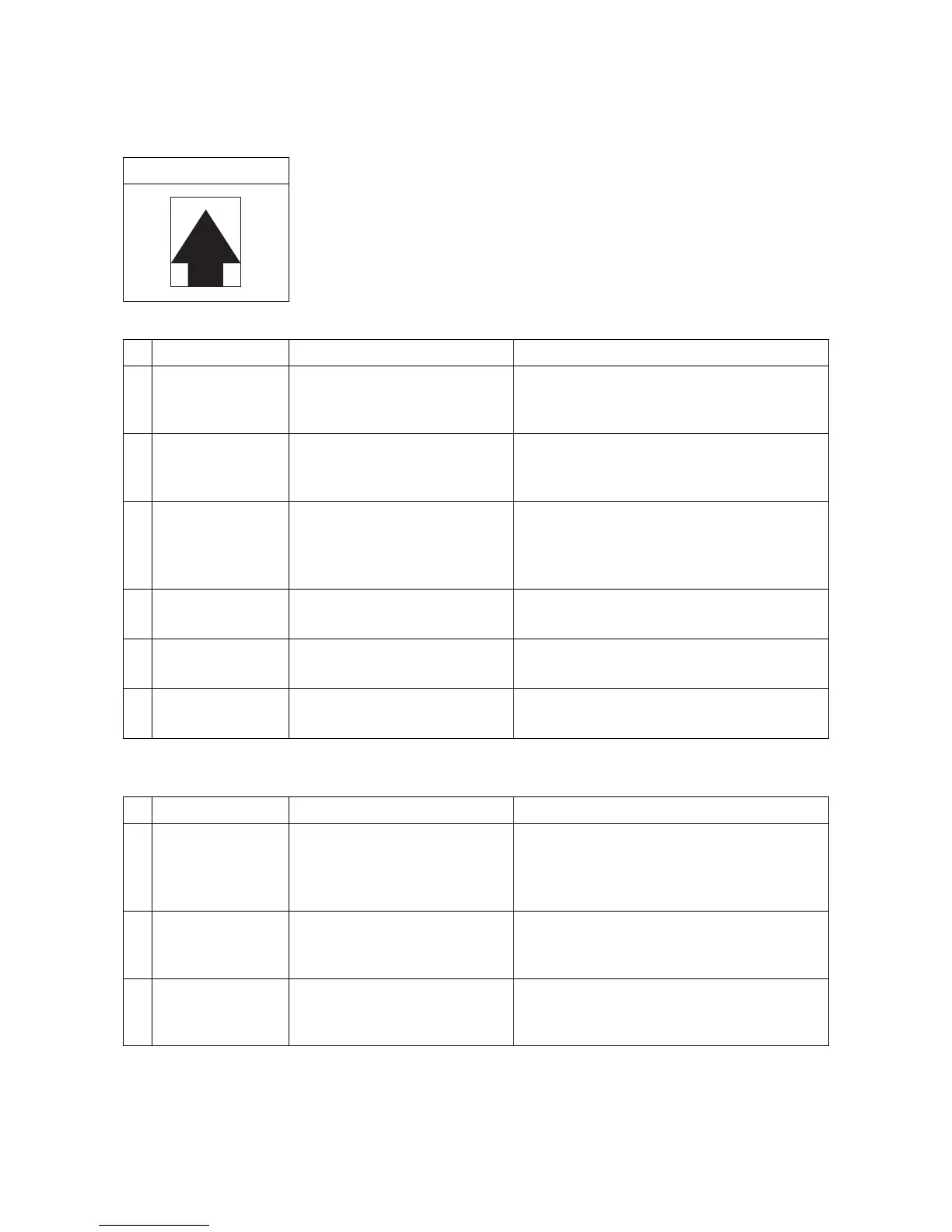

(11) The leading edge of the image is consistently misaligned with the original.
1. Table scanning
2. DP-scanning
Print example
Defective part Check description Corrective Action
1
Original document Check if the original document is
loaded correctly on the contact
glass.
If the original document is not properly placed
on the contact glass, place it correctly.
2
Secures the lamp
unit
Confirm the oriention of the
bracket that secures the drive
belt and the lamp unit.
If the bracket that fixes the drive belt and the
lamp unit is misaligned, align the bracket
properly.
3
Adjustment of the
scanner
Check the scanning adjustment
of the scanner.
1. Perform maintenance mode U066, Front.
(see page 1-3-29)
2. Perform maintenance mode U411,
table(Chart1)_Input. (see page 1-3-54)
4
Home position sen-
sor
Check the location the home
position sensor is mounted.
Re-mount the home position sensor if it is
hanged off.
5
Drive belt Check if the tension of the drive
belt is insufficient.
If the tension of the drive belt is insufficient,
tense the belt.
6
Scanner drive pul-
ley
Check if the scanner drive pulley
is loosely fixed.
If the scanner drive pulley is loosely fixed,
secure the screws.
Defective part Check description Corrective Action
1
Adjustment of the
scanner
Check the scanning adjustment
of DP scanning.
1. Perform maintenance mode U071, CCD
Head. (see page 1-3-33)
2. Perform maintenance mode U411,
FaceUp(Chart2)_Input. (see page 1-3-54)
2
Original conveying
roller
Check if the conveyer roller is
contaminated or worn.
If the conveying roller is dirty, clean the con-
veying roller and its axles.If the roller is worn
out, replace.
3
DP drive motor Check whether the DP drive
motor is fluctuated in rotation.
If the DP motor is fluctuated in rotation, apply
grease with the drive gear. If no improvement
is observed, replace the motor.

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
