Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-77
(2) Original conveying section and switchback/eject section
The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) of main unit when it passes through the slit glass of main unit.
The original switchback/eject sections consists of the parts shown in figure. An original of which scanning is
complete is ejected to the original eject table by the eject roller.
An original is conveyed temporarily to the original eject table and conveyed again to the original conveying
section by the switchback roller.

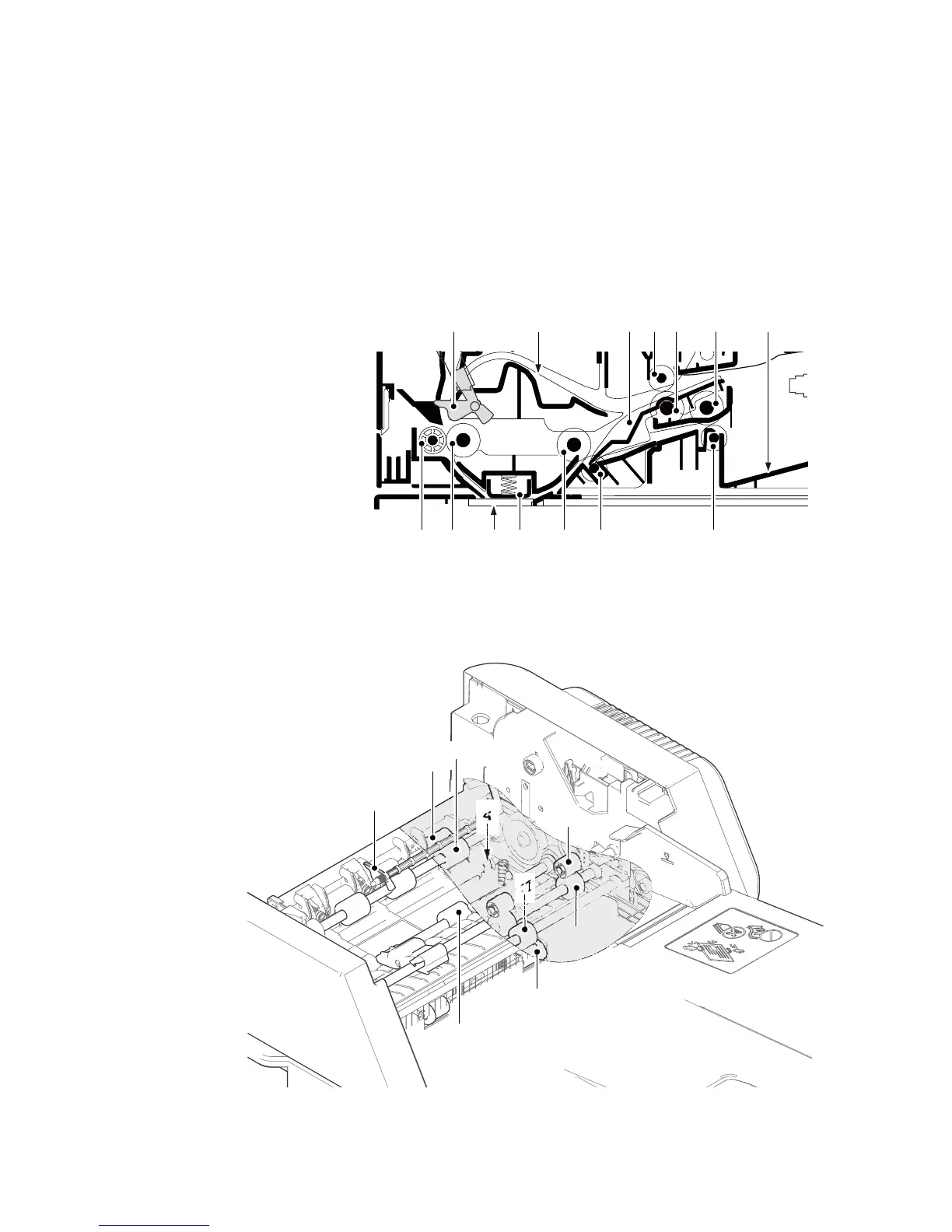

Figure 1-5-129
Figure 1-5-130
3 2 6 74 12
1 8 10
5
1413
9 11
[Component formation]
1. Actuator
(DP registration sensor)
2. DP registration roller
3. DP regisutration pulley
4. Reading guide
5. Slit glass
6. DP conveying roller
7. DP conveying pulley
8. Switchback guide
9. Switchback roller
10. Switchback pulley
11. DP eject roller
12. DP eject pulley
13. Switchback guide
14. Eject table
9
2
10
1
3
12
6
4
11

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
