Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-48
1-5-8 Eject section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
(1) 50/60 ppm model

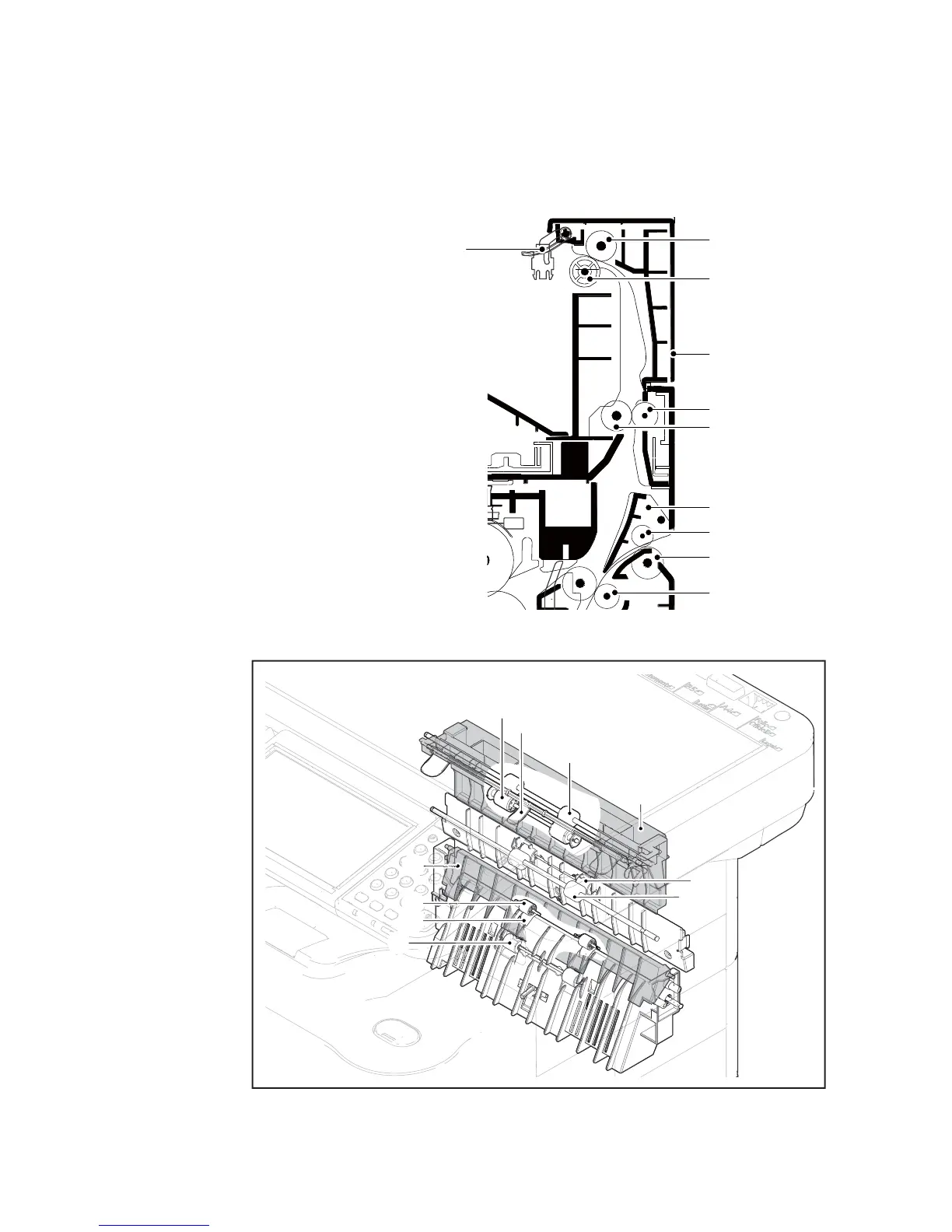

Figure 1-5-79
Figure 1-5-80
3
2
1
5
6
4
9
10
8
7
[Component formation]
1. Upper eject pulley
2. Upper eject roller
3. Actuater
(Paper full sensor (PFS))
4. LowerEject roller
5. Lower eject pulley
6. Eject upper cover
7. DU feed pulley
8. Faceup roller
9. Faceup pulley
10. Faceup guide
1
2
3
4
5
8
9
7
10
6

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
