Kyocera ECOSYS M3540dn - Detaching and Refitting the Language Sheets

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-96
(3) Detaching and refitting the language sheets
(3-1) HyPAS model
Procedure
1. Slide the right operation lid and left.
2. Remove the their lids.

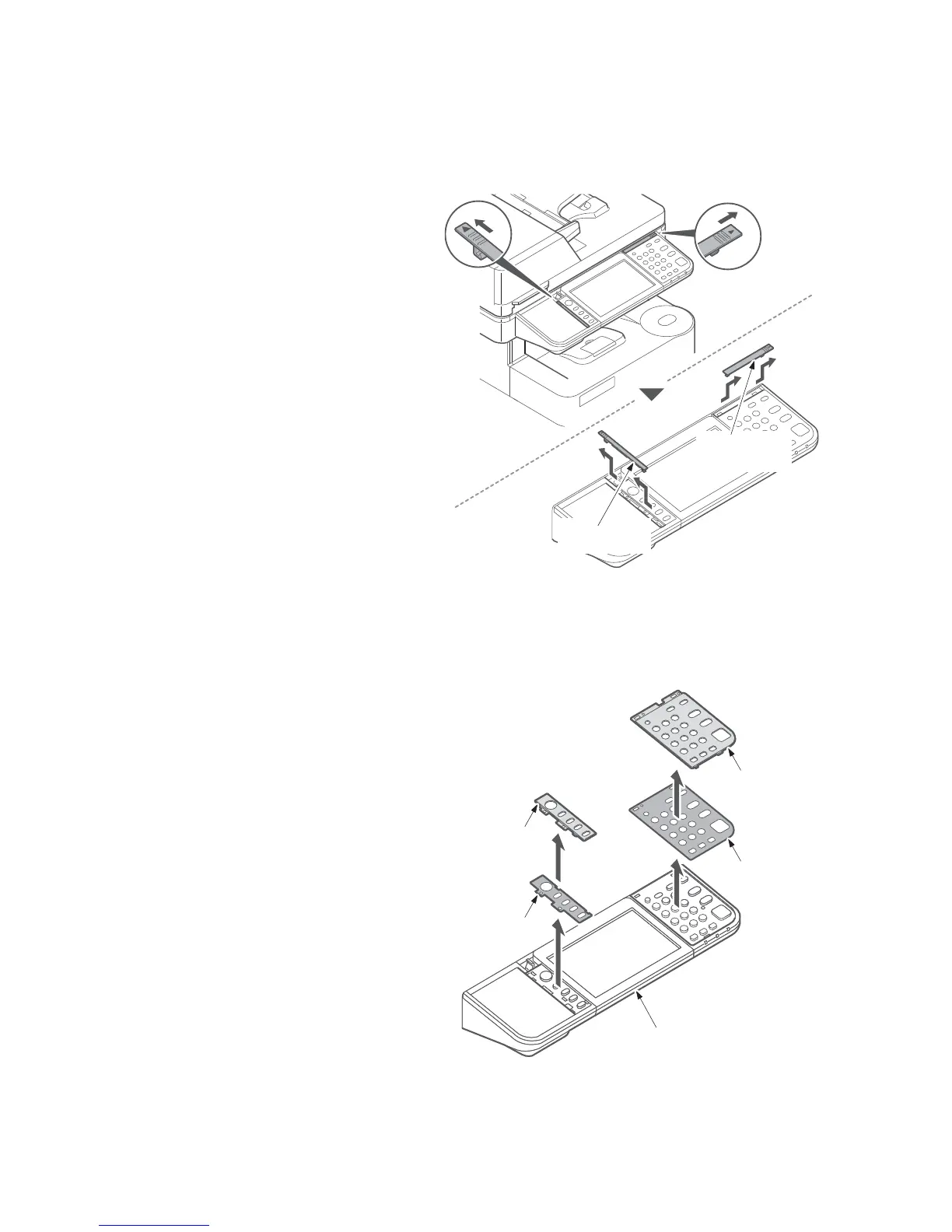

Figure 1-5-164
3. Remove the operation panel cover.
4. Replace it to the operation panel sheet
of the corresponding language.
5. Refit all the removed parts.
Figure 1-5-165
Right
operation lid
Left
operation lid
Left operation
panel cover
Left operation
panel sheet
Left operation
panel cover
Left operation
panel sheet
Operation panel assembly
