Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-3-27
U065 Adj Scn
Description
Adjusts the magnification of the original scanning.
Purpose
Make the adjustment if the magnification in the main scanning direction is incorrect.
Make the adjustment if the magnification in the auxiliary scanning direction is incorrect.
Caution
The magnification adjustment along the main scanning direction could cause black streaks
depending on the content of the original document.
Adjust the magnification of the scanner in the following order.
U065 (
main scanning direction) -------- U065 (auxiliary scanning direction)
(P.1-3-27) (P.1-3-27)
Method
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.
Display Description Setting
range
Initial
setting
Change in
value per
step
Main Scan Scanner magnification in the main
scanning direction.
-75 to 75 0 0.02%
Sub Scan Scanner magnification in the auxiliary
scanning direction.
-125 to 125 0 0.02%
Adjustment: Main Scan
1. Change the setting value using the cursor right/left keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the setting enlarges the image and decreasing it narrows the image.

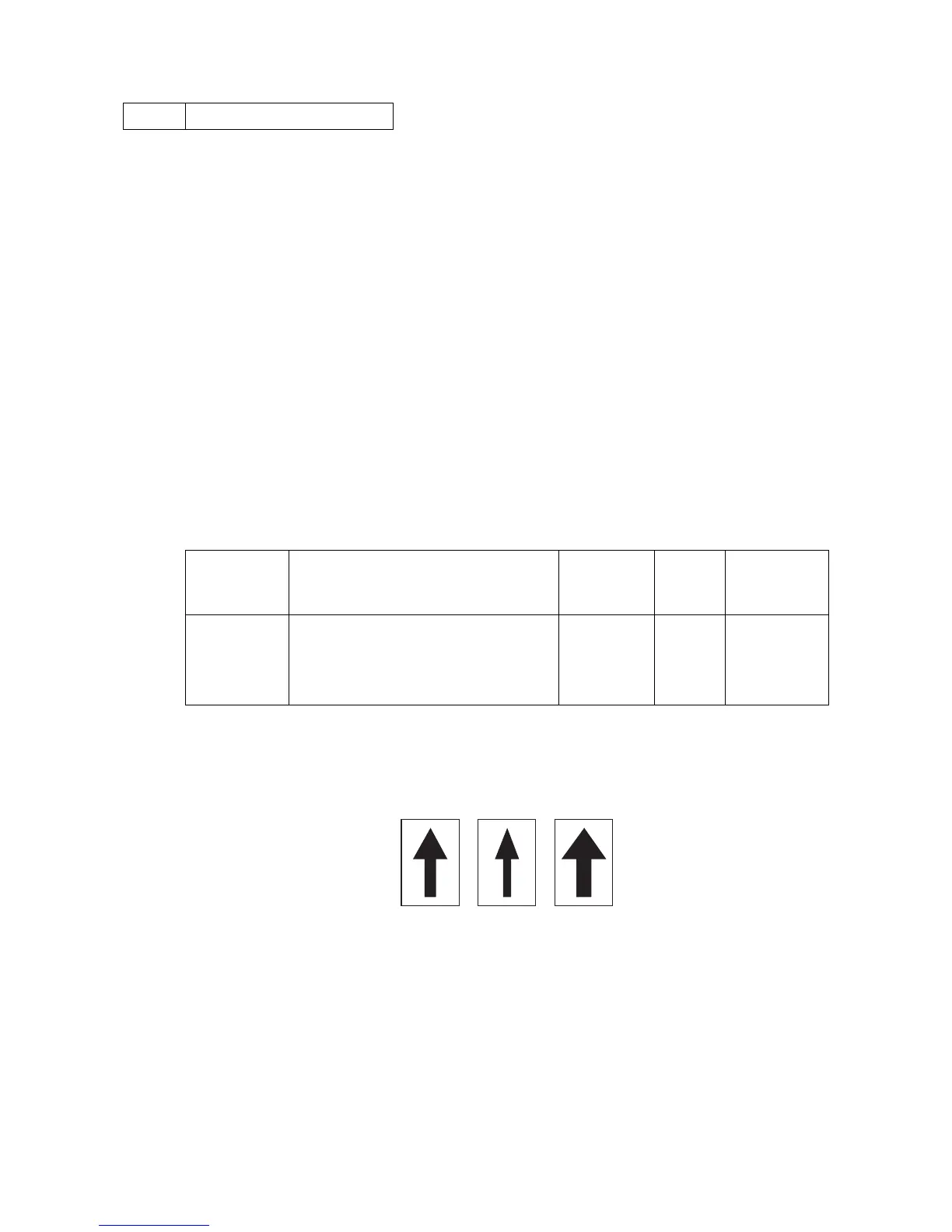

Figure 1-3-5
2. Press the start key. The value is set.
Original Copy
example 1
Copy
example 2
