8. Remove two gear.
9. Remove four screws and drive cover.
10. Remove DP paper feed motor and DP
conveying motor.
11. Check or replace DP paper feed motor
and DP conveying motor and refit all
the removed parts.

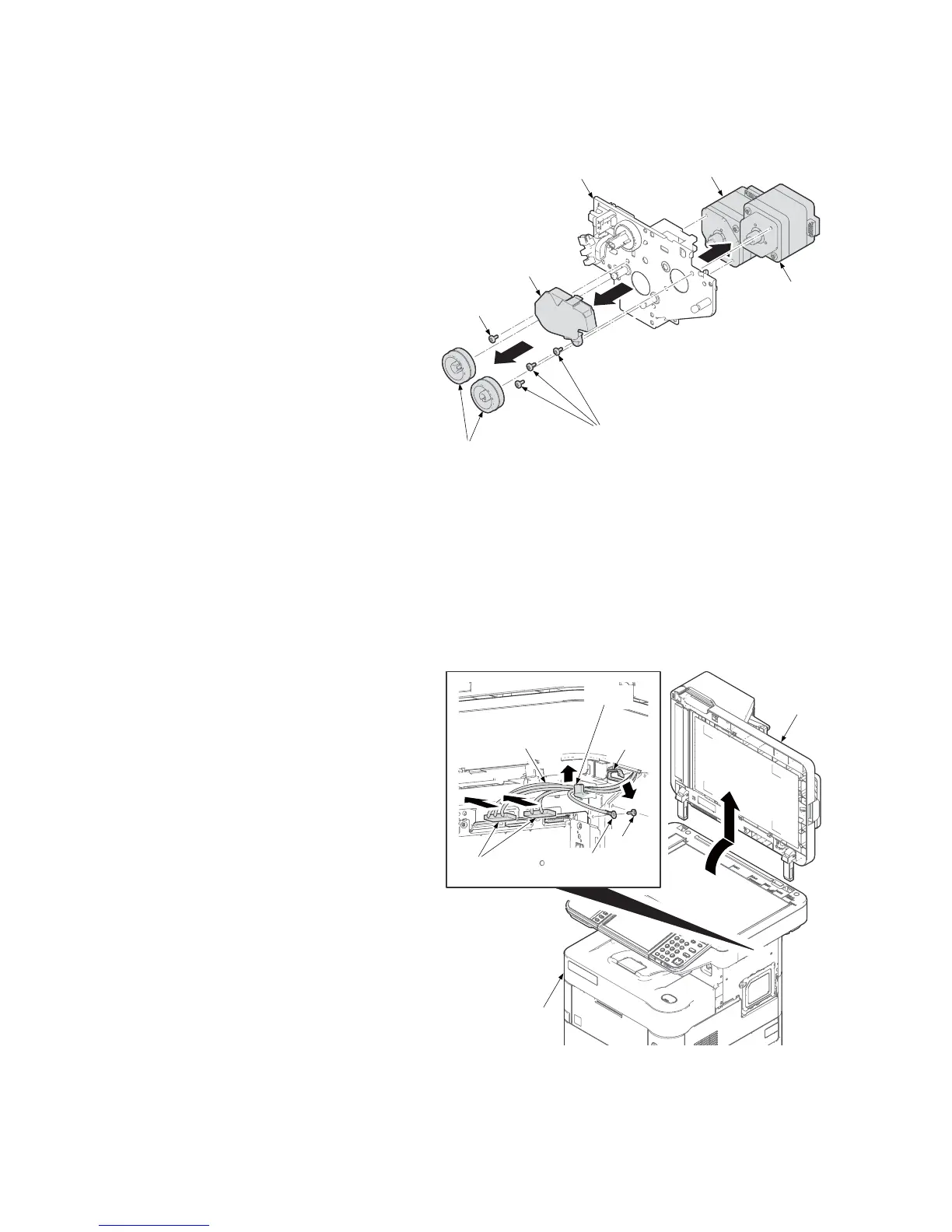

Figure 1-5-138
(2-3) Detaching and refitting the DP unit
Procedure
1. Open the rear cover and remove the
upper interface cover.
2. Remove the right stay cover.
3. Remove the screws and the right upper
cover.
4. Remove the screw and grounding ter-
minal.
5. Remove two connector from the control
PWB.
6. Release DP wires from the hook and
the wire saddle.
7. Open DP unit and lift up out.
Figure 1-5-139
Screw
Drive cover
Drive A unit
DP conveying
motor
Screws
Gears
DP paper
feed motor
Screw
Grounding
terminal
Connectors
DP wires
Wire
saddle
Hook
DP unit
Main unit
