2NM/2NX/2NY/2NZ/2P0/2P6-1

1-5-81

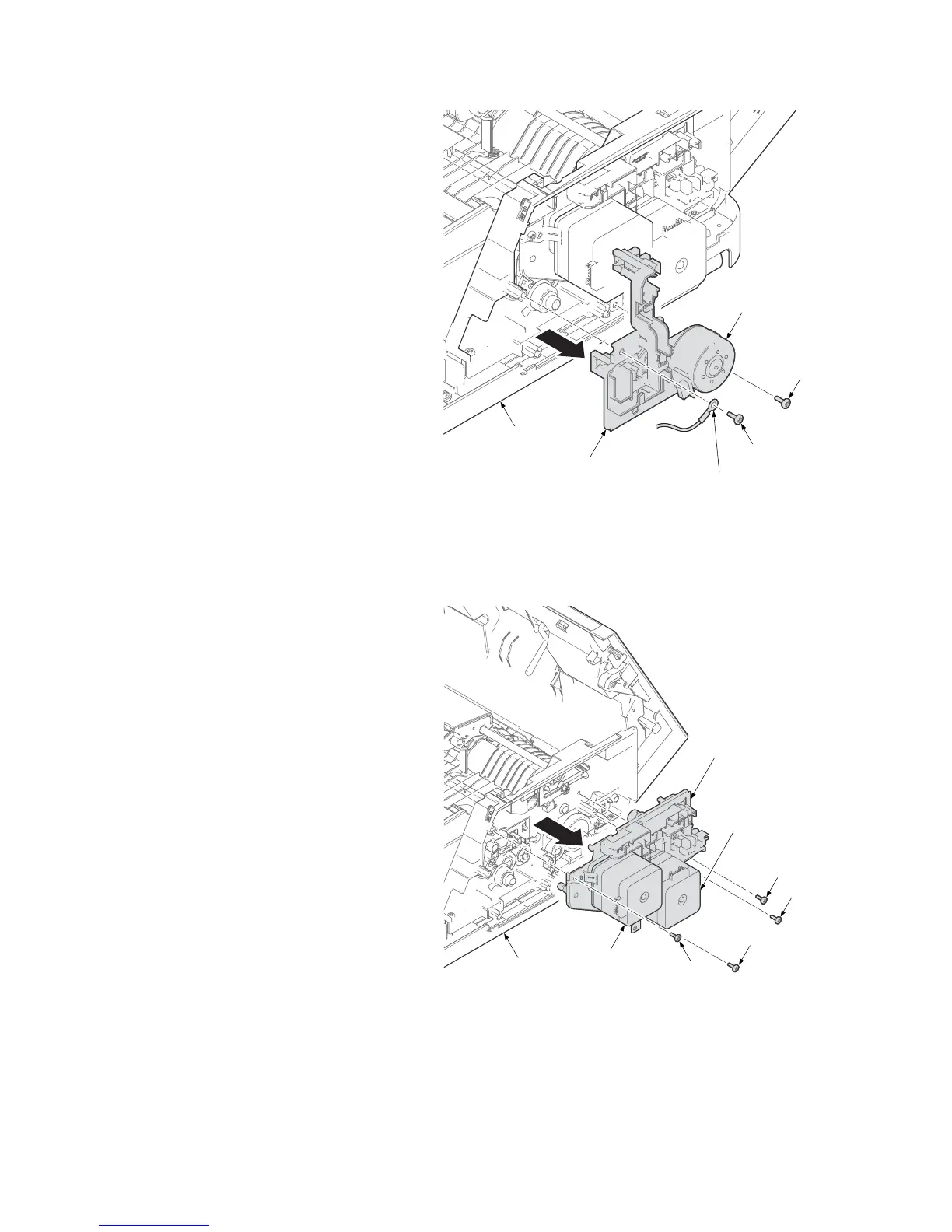

5. Remove two screws and the grounding

terminal.

6. Remove the Drive B unit from DP.

Figure 1-5-136

7. Remove four screws and then remove

Drive A unit.

Figure 1-5-137

Screw

Grounding terminal

DP shiftback motor

Drive B unit

Screw

Drive A unit

DP conveying

motor

DP paper

feed motor

Service Manual1
