Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-68

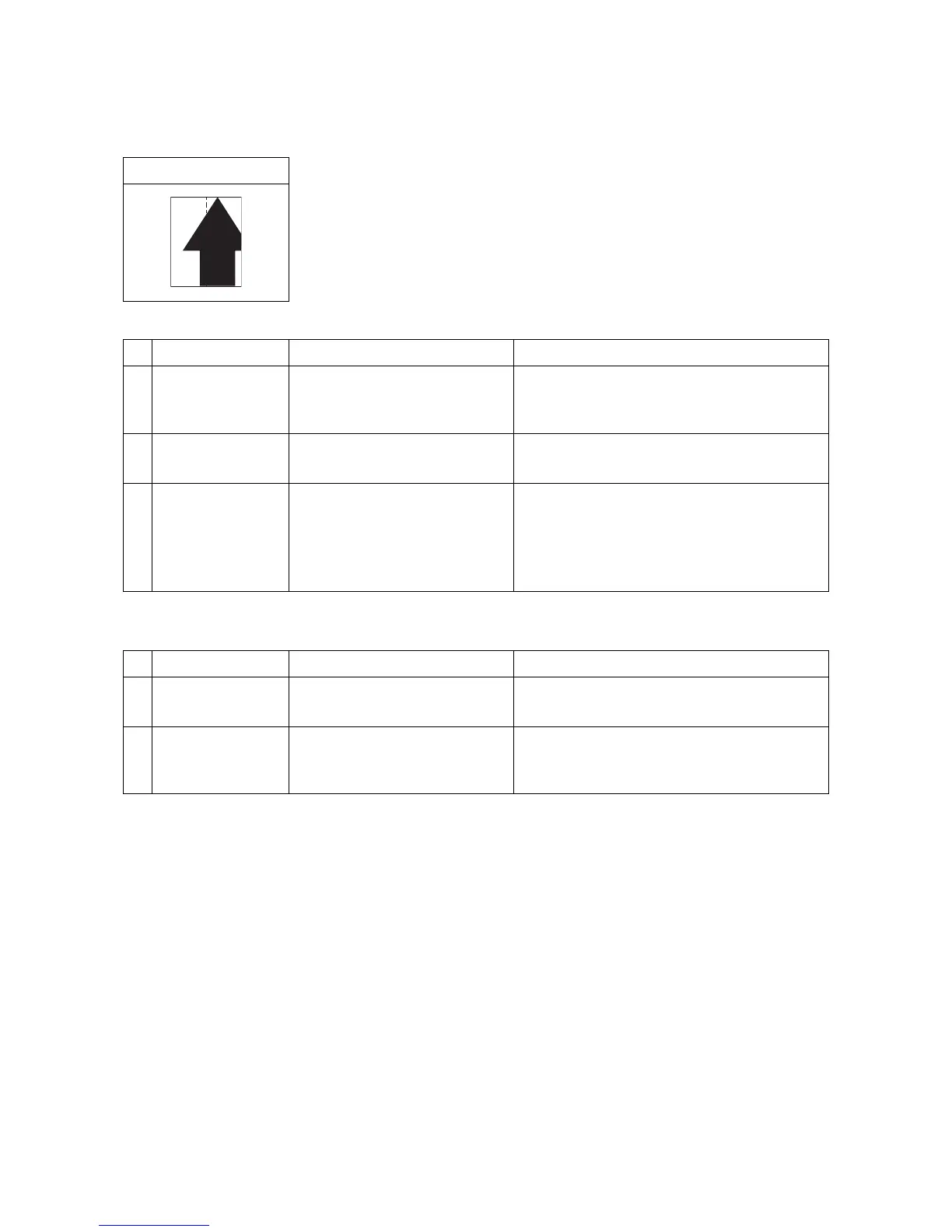

(14) Image center does not align with the original center.
1. Table scanning
2. DP-scanning
Print example
Defective part Check description Corrective Action
1
Original document Check if the original document is
loaded correctly on the contact
glass.
If the original document is not properly placed
on the contact glass, place it correctly.
2
Contact glass assy
Check the location the contact
glass is mounted.
Re-mount the contact glass if it is hanged off.
3
Adjustment of the
scanner
Check the scanning adjustment
of the scanner.
1. Perform maintenance mode U067,
Front.(see page 1-3-30)
2. Perform maintenance mode U411,
Table(Chart1)_Input.
(see page 1-3-54)
Defective part Check description Corrective Action
1
Original document Check if the original document is
loaded correctly in the DP.
If the original document is not properly placed
in the DP, place it correctly.
2
Adjustment of the
scanner
Check the scanning adjustment
of DP scanning.
1. Perform maintenance mode U072.
2. Perform maintenance mode U411, DP
FaceUp(Chart2)_Input. (see page 1-3-54)

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
