2NM/2NX/2NY/2NZ/2P0/2P6-1
1-3-59
Setting: [Adjust Original] *: This setting is usually unnecessary.
Display Description Setting range Initial setting
Dist1 Sets the adjustment value of a leading
edge.
4.0 to 6.0 5.0
Dist2 Sets the adjustment value of a left edge. 9.0 to 11.0 10.0
Dist3 Sets the adjustment value of a trailing
edge.
265.0 to 267.0 266.0
1. Measure the distance from the leading edge to the top of black belt 1 of the original at A, B and
C.
Measurement procedure
1) Measure the distance from the leading edge to the top of black belt 1 of the original at A (30
mm from the left edge), B (105 mm from the left edge) and C (180 mm from the left edge),
respectively.
2) Apply the following formula for the values obtained: ((A + B + C) / 3)
2. Enter the values solved using the cursor right/left keys or numeric keys in [Dist1].
3. Press the start key. The value is set.
4. Measure the distance from the left edge to the right edge black belt 2 of the original at F.
Measurement procedure
1) Measure the distance from the left edge to the right edge black belt 2 of the original at F (21
mm from the top edge of black belt 1).
5. Enter the values using the cursor right/left keys or numeric keys in [Dist2].
6. Press the start key. The value is set.
7. Measure the distance from the top edge of black belt 1 to the bottom of black belt 3 of the orig-
inal at D and E.
1) Measure the distance from the top edge of black belt 1 to the bottom of black belt 3 of the
original at D (30 mm from the left edge) and E (180 mm from the left edge), respectively.
2) Apply the following formula for the values obtained: (D/2 + E/2)
8. Enter the measured value using the cursor right/left keys or numeric keys in [Dist3].
9. Press the start key. The value is set.

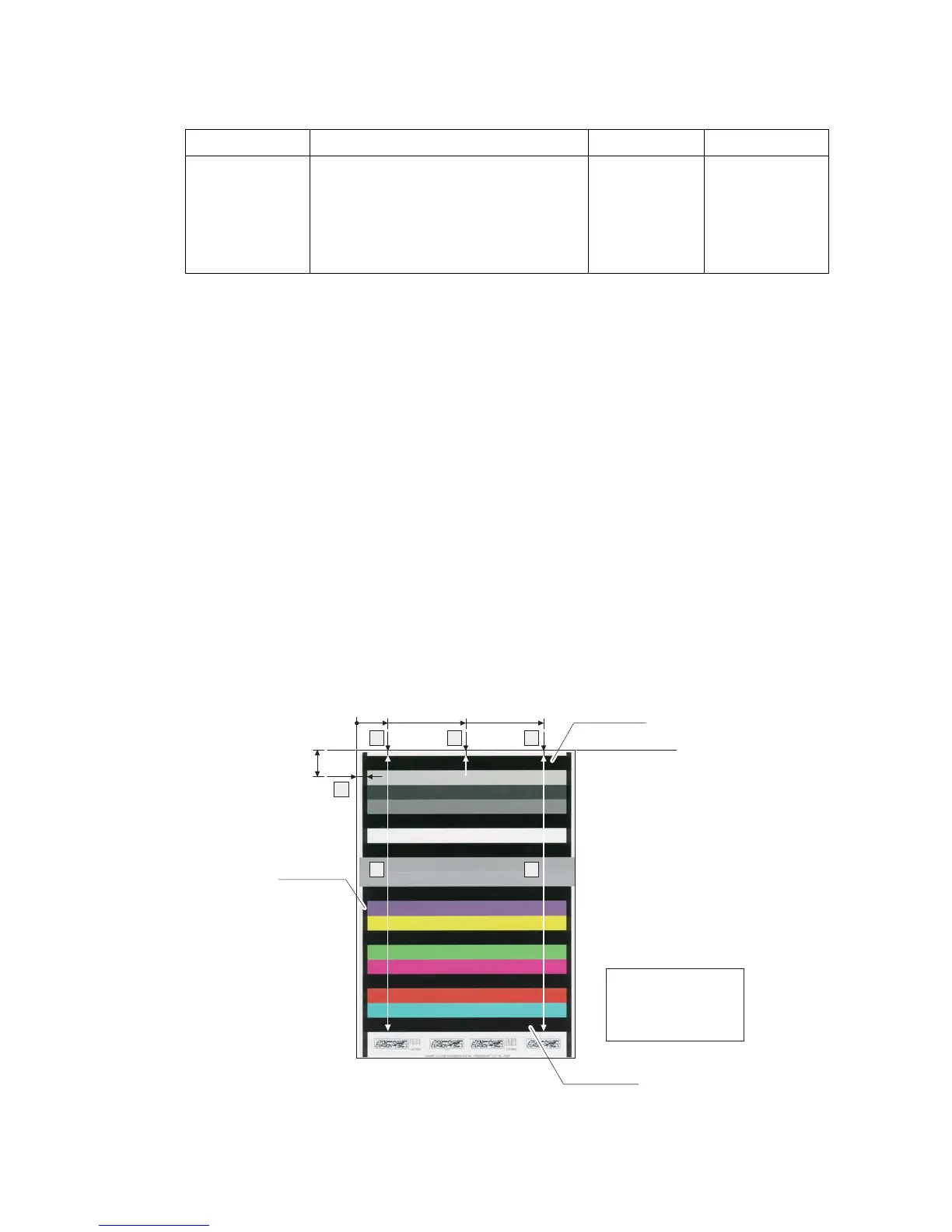

Figure 1-3-16
Original for adjustment
(P/N: 302NM94340)
30mm 105mm 180mm
21mm
Leading edge
Left edge
[Dist1] = (A+B+C)/3
[Dist2] = F
[Dist3] = D/2+E/2
Black belt 1
Blackbelt 2
Black belt 3
