Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-11
7. Remove two screws on the MP paper
feed unit.
8. Remove the MP paper feed unit from
the main unit.

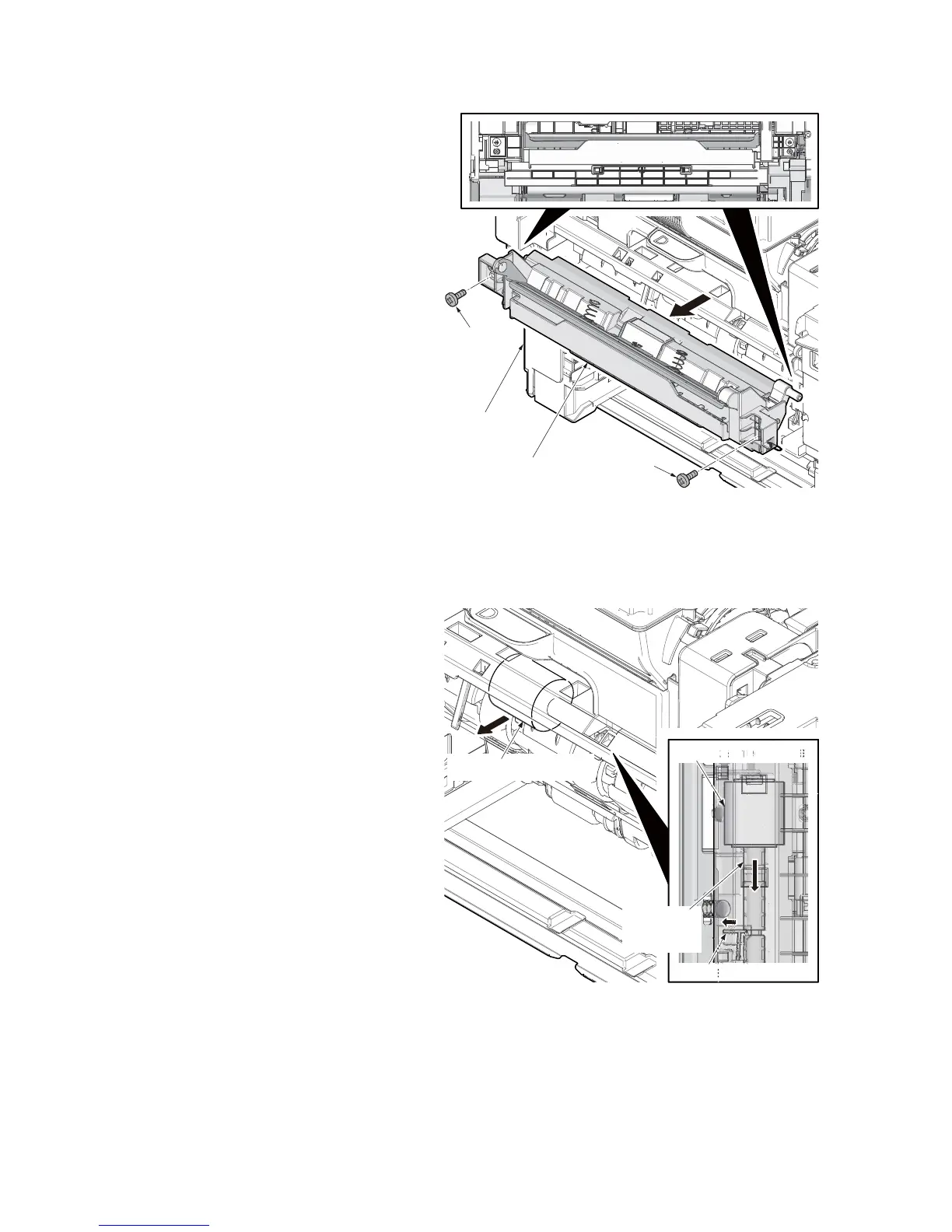

Figure 1-5-15
9. Release the lock lever and then slide
the MP paper feed pulley axis.
10. Remove MP paper feed pulley.
11. Check or replace the MP paper feed
pulley and refit all the removed parts.
Figure 1-5-16
MP paper feed unit
Screw
Screw
Main unit
MP paper feed pulley
Lock lever
MP paper
feed pulley
axis
MP paper feed pulley
