Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-90
8. Remove two screws.
9. Remove the top tray cover upward.

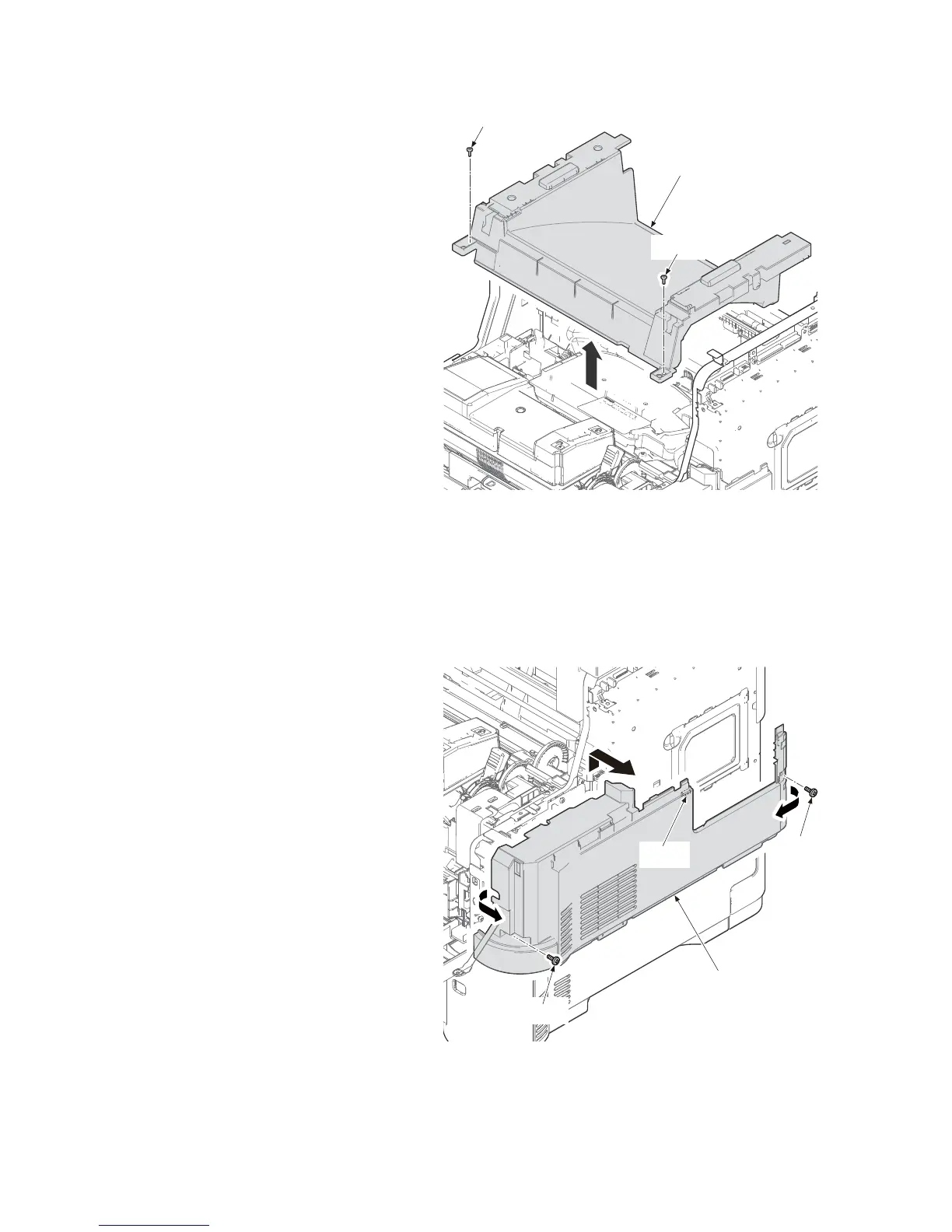

Figure 1-5-153
(9) Detaching and refitting the right middle cover
Procedure
1. Remove two screws.
2. Release the hooks by bending both-
side of the right middle cover and then
remove it by pulling and lifting up for-
ward.
Figure 1-5-154
Screw
Screw
Top tray cover
Right middle cover
Screw
Hook
Screw
