2NM/2NX/2NY/2NZ/2P0/2P6

2-2-14

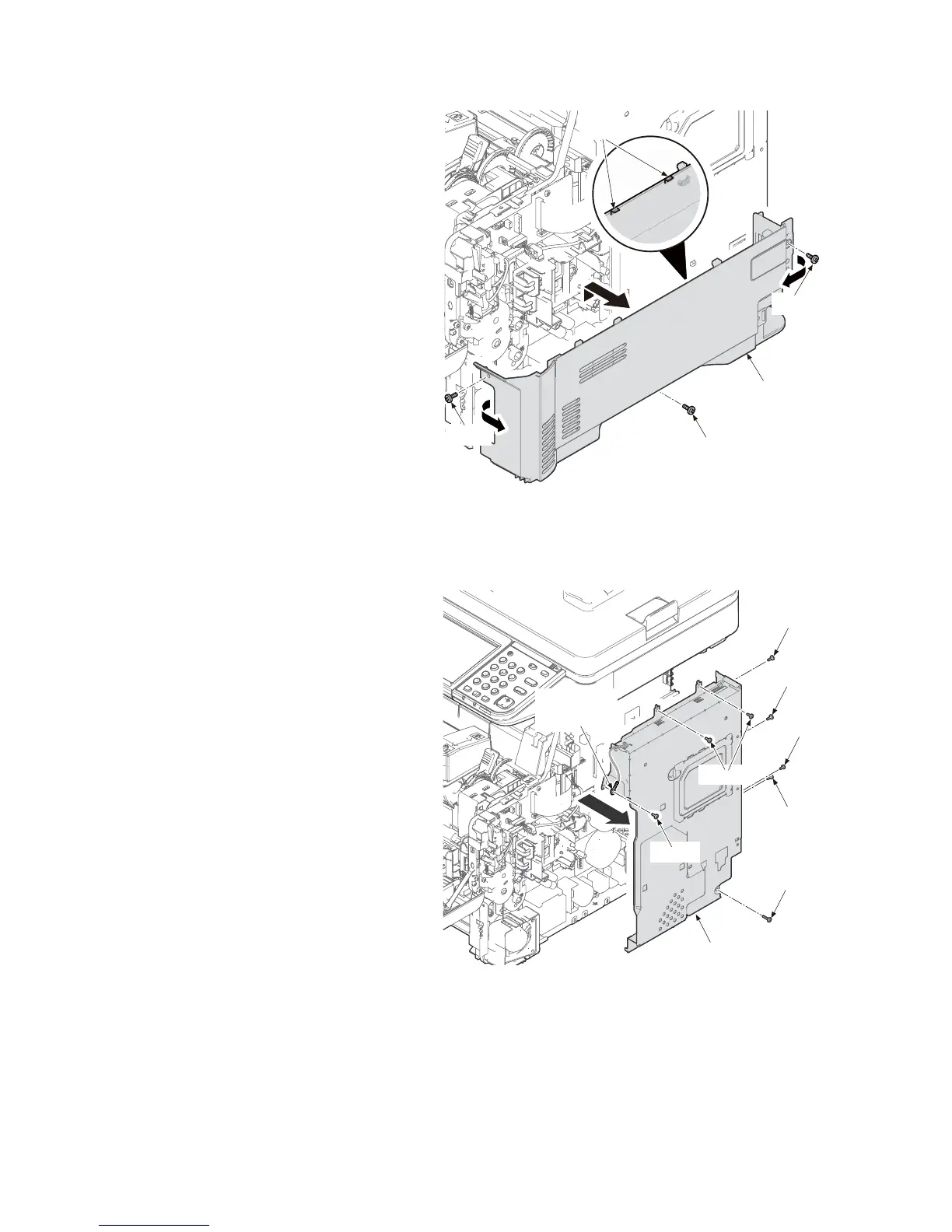

11. Pull out the cassette.

12. Remove three screws.

13. Release two hooks by sliding the right

lower cover upward and then remove

the right lower cover.

Figure 2-2-9

14. Remove eight screws and grounding

terminal.

15. Remove the controller box.

Figure 2-2-10

Right lower cover

Screw

Hooks

Screw

Screws

Controller box

Grounding

terminal

Service Manual1
