2NM/2NX/2NY/2NZ/2P0/2P6
2-2-33
11. Remove all connectors and FFC from
the connect right PWB.
12. Remove three screws and connect right
PWB from the main unit.
13. Check or replace the connect right
PWB and refit all the removed parts.

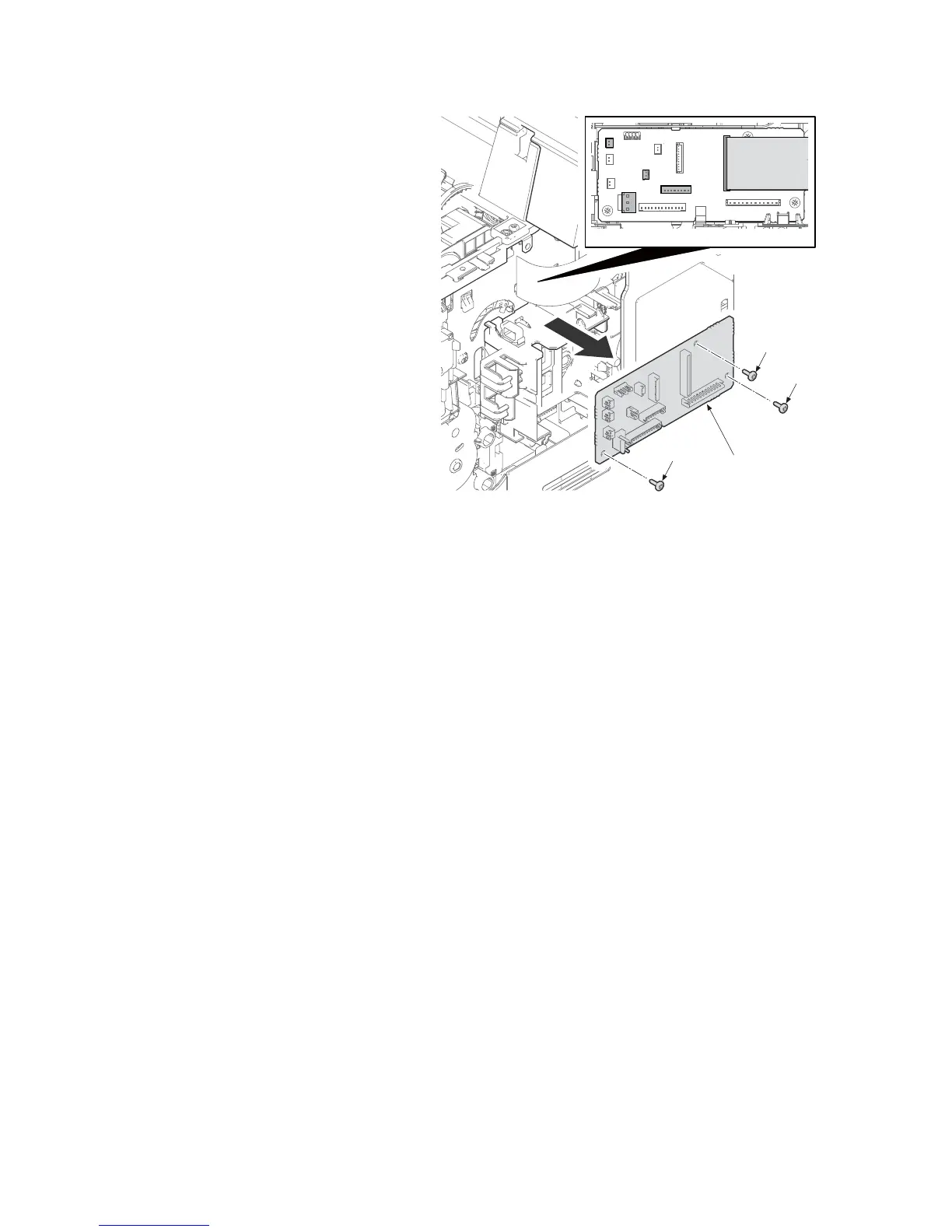

Figure 2-2-34
Screw
Screw
Screw
Connectors
Connect rIght
PWB
