Kyocera ECOSYS M3540dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
2-2-43

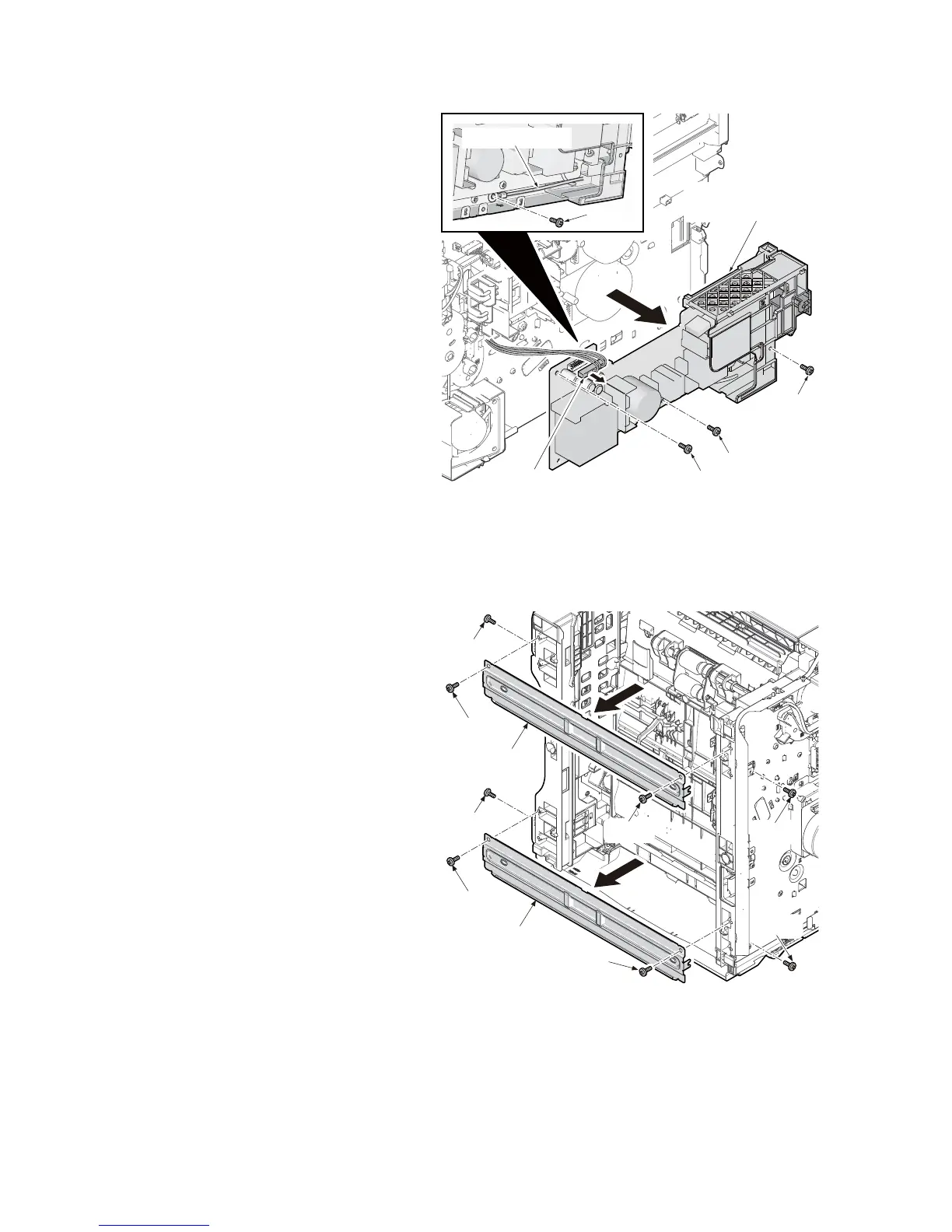

34. Remove the grounding wire by remov-
ing the screw.
35. Remove the connector from the power
source PWB.
36. Remove three screws and then remove
the power source PWB assembly.
Figure 2-2-51
37. Stand the main unit front side up.
38. Remove four screws each and then
remove the bottom plate 1 and the bot-
tom plate 2.
Figure 2-2-52
Power source PWB
assembly
Screw
Screw
Screw
Screw
Grounding wire
Connector
Screw
Screw
Screw
Screw
Screw
Botom plate 2
Screw
Screw
Screw
Bottom plate 1

Kyocera ECOSYS M3540dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Scan Type	Color CIS
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Fax Transmission Speed	33.6 kbps
Paper Capacity	500 sheets
Connectivity	USB, Ethernet
Copying	Yes
Scanning	Yes
Modem Speed	33.6 kbps
Standard Input Capacity	500 sheets
Standard Output Capacity	250 sheets
Maximum Output Capacity	250 sheets
Maximum Print Size	A4
Standard Interfaces	USB 2.0, Ethernet
Ethernet LAN	Yes
Internal Memory	512 MB
Power Consumption (typical)	661 W
Display	LCD
Functions	Print, Copy, Scan, Fax
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	40 ppm (pages per minute)
Copy Speed	40 cpm (copies per minute)
Standard Paper Tray Media Types	Recycled
Maximum Internal Memory	1, 536 MB
Weight	22 kg
Product Colour	Black
