6 Operating Control and Displays
The curve dialogue window shows the setpoint curves of the channels (ratio controller) per
curve set - either oil (1) or gas (2). Switch between display in curves (’setpoint graphic’) and
display in tables (’Curve tables’).

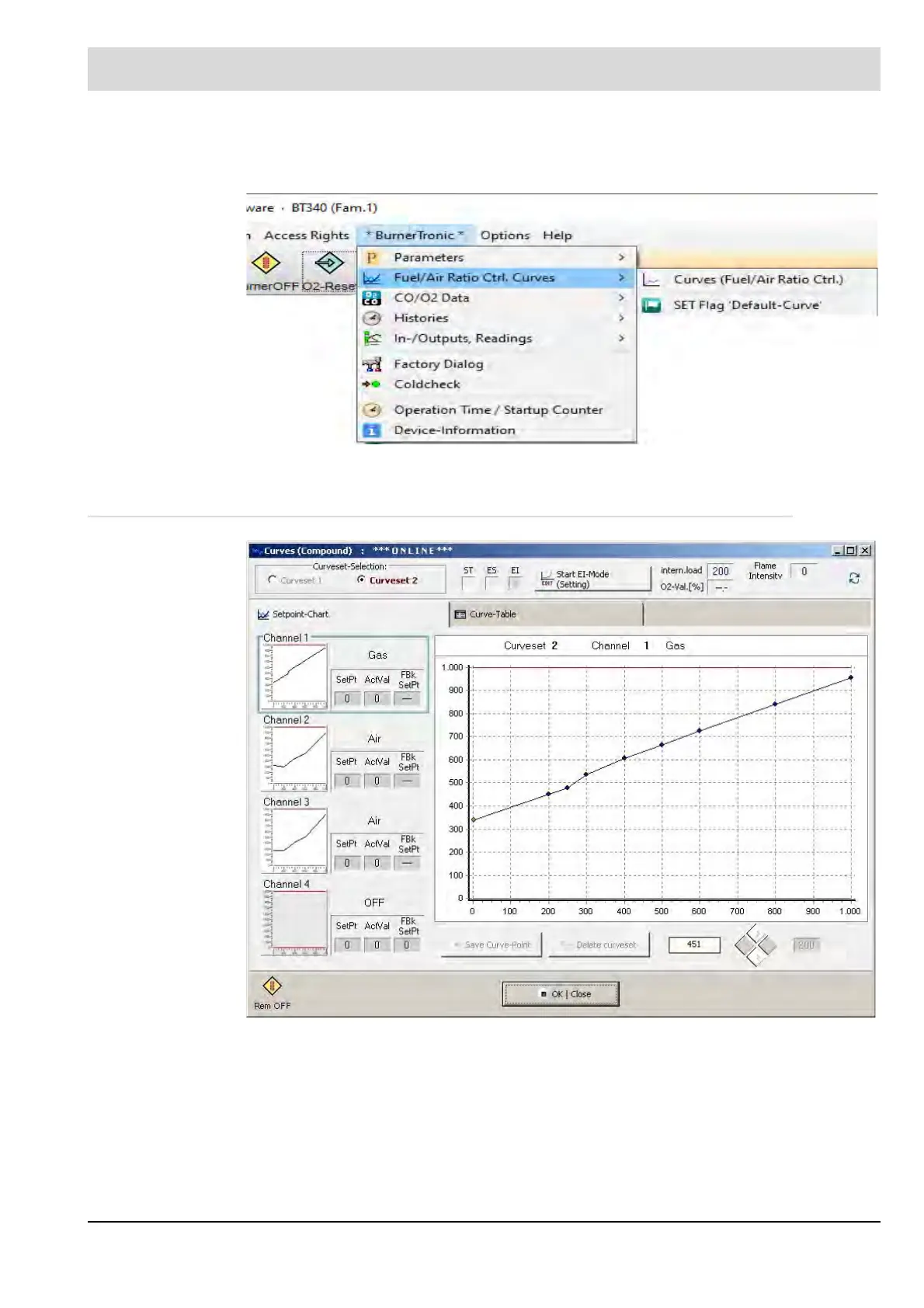

Fig. 6-35 Open curve dialogue
6.3.4.1 Setpoint Graphic
Fig. 6-36 Setpoint graphic window
