8 Options
Connection to DFM and BT300
Rast5 adapter offers following options to connect DFM and BT300:
8.2.5.2 Technical Data Rast5-Module

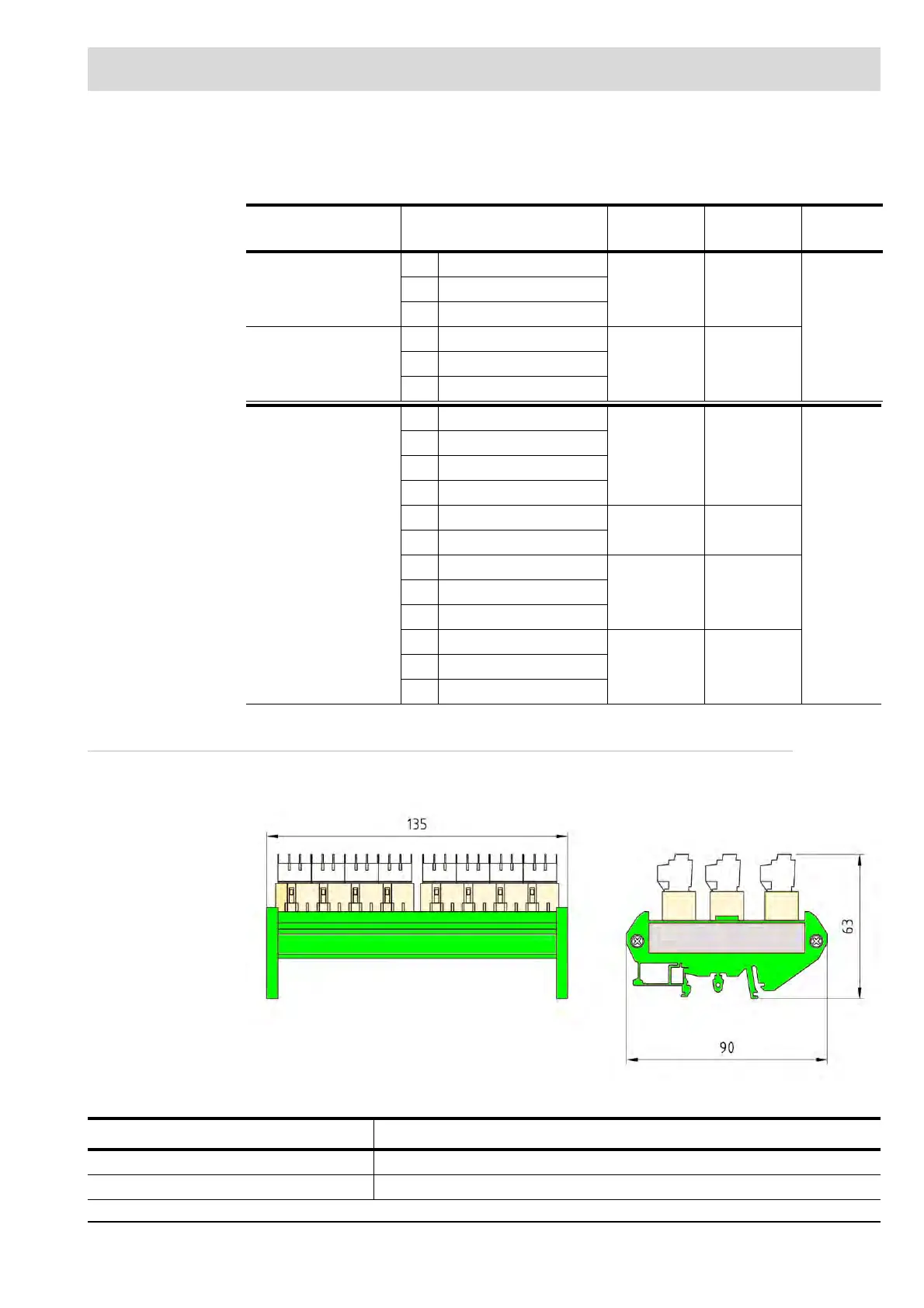

Fig. 8-38 Dimensions Rast5 module
Connection
assignment
Terminal type Plug Terminal Terminal
block
to BT300
1
L
X028 X28-BT
X706
2
PE
3
N
to DFM
1
Fuel selection
X41 X41-DFM
2
L
3
N
to DFM
1
Security chain gas
X42 X42-DFM
X707
2
Ignition transformer gas
3
Security chain oil
4
Ignition transformer oil
1
firing rate input - X43 X43-DFM
2
firing rate input +
1
Valve gas 1
X44 X44-DFM
2
Valve gas 2
3
Valve gas 3
1
Valve oil 1
X45 X45-DFM
2
Valve oil 2
3
Valve oil 3
Rast5-Module
Housing PVC green
Mounting Mounting rail TH35 according to EN 60715
