Lamtec BT300 BurnerTronic User Manual

30
3 Product Description
3.3.2 Flame Sensor/Flame Scanner
NOTICE
The limits of the technical data must be strictly adhered to.

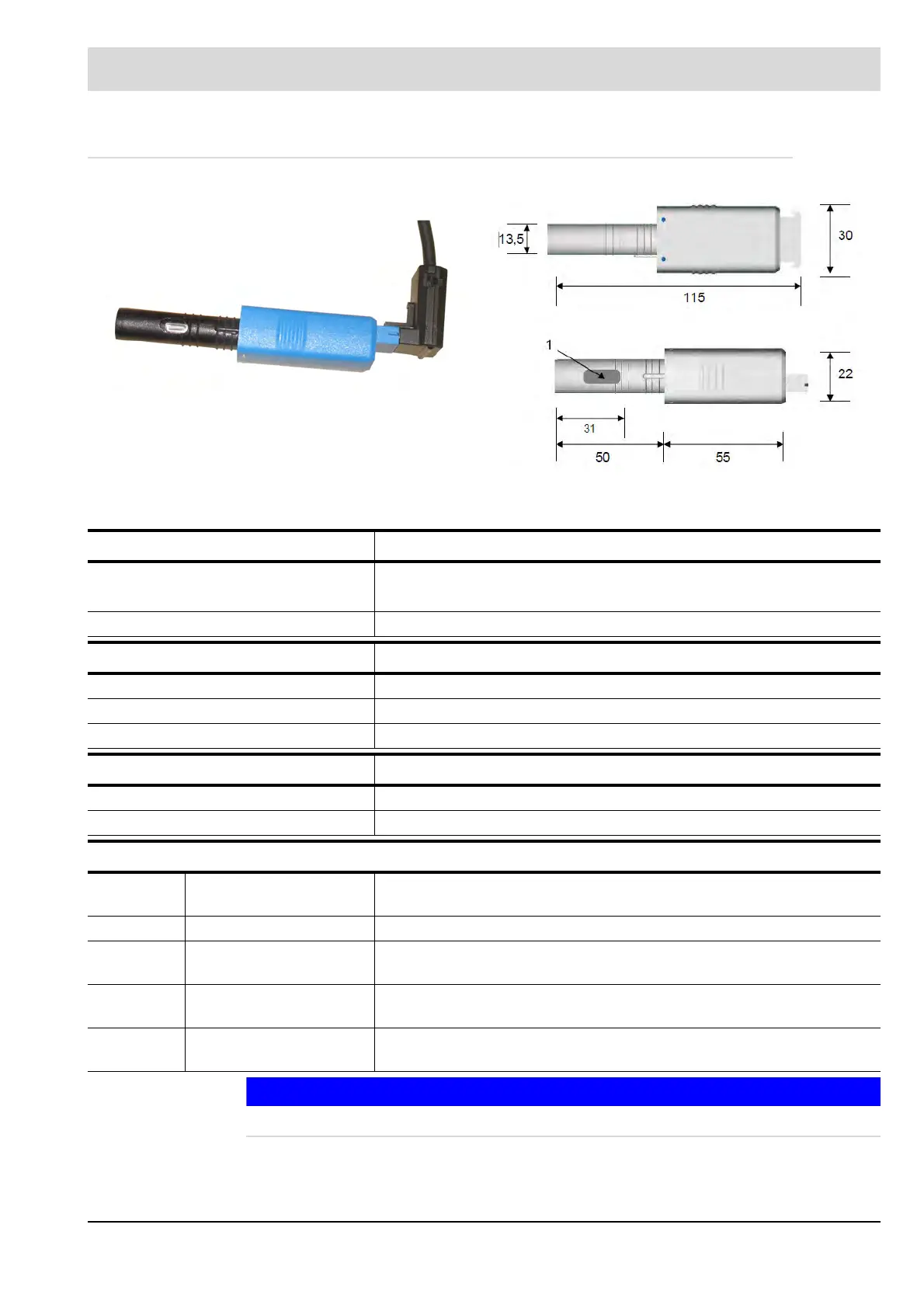

Fig. 3-13 KLC1000
Fig. 3-14 Dimensions KLC1000 (1 = radial scanning opening)
KLC10/KLC1000
Input Data
Power supply KLC10: 120 VAC -15/+10 % 50-60 Hz
KLC1000: 230/240 VAC -15/+10 % 50-60 Hz
Current consumption 5,5 mA
Optical Evaluation
Spectral range 185 - 260 nm
Tolerable flame signal dips 200 ms
Alignment to the flame left
Dimensions
Weight 0,028 kg (1 oz)
Connecting cable length max. 3 m (9.8 ft)
Environmental Conditions
Operation temperature range -20 ...+60 °C (-4 °F ... 140 °F)
(temperatures >50 °C (122 °F) will reduce life cycle of the device)
Humidity max. 95 % r. h. (condensation is prohibited)
Degree of
protection
DIN EN 60529 IP41
Electrical
safety
protection class II
protecting against
contact
DIN EN 60730-2-5

Lamtec BT300 BurnerTronic Specifications

General

Category	Control Systems
Flame Safeguard	Yes
Fuel Types	Gas, Oil
Display	LCD
Approvals	CE, UL
Control Type	Microprocessor-based
Model	BT300
Manufacturer	Lamtec
Application	Industrial Burners
Operating Temperature	-20°C to +60°C
Communication	Modbus, CAN
