LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
LNC Technology Co., Ltd. 61

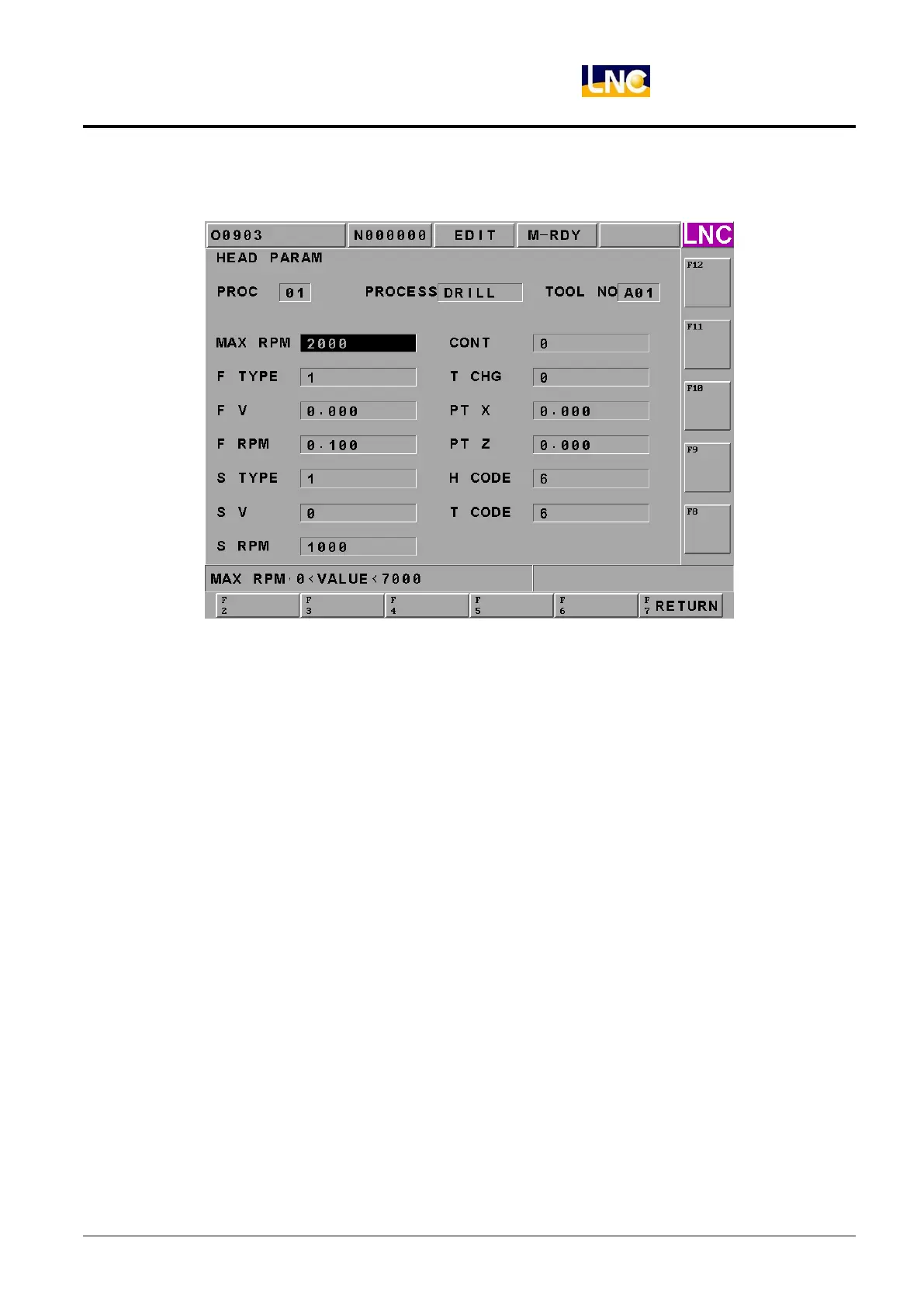

◎ Screen of Head Parameter is as below：
Figure 1.6-8 Header Parameter Page
【Column Description】
※ Procedure：display the currently editing procedure number.
※ Working Method：display the working method name of the currently editing procedure.
※ Tool NO.：display the selected tool NO. of the currently editing procedure. 4 types of tool NO. Type A for
drilling tool, Type B for pattern tool, Type C for grooving tool, and Type D for thread tool. The
number should be the tool NO. from the tool clear list of the screen.
※ Head Parameter Column：users can key-in an appropriate value according to the actual need.
⊙ Max. RPM：spindle max. rotational speed.
⊙ F TYPE：0 means using feed/min, 1 means using feed/rotate.
⊙ F V：when the feed unit is selected as 0, users must key-in any value that is larger than 0 into this
column.
⊙ F RPM：when the feed unit is selected as 1, users must key-in any value that is larger than 0 into this
column.
⊙ S TYPE：0 means using fixed cutting speed, 1 means using fixed rotating speed.
