6.2.3.2 Select head

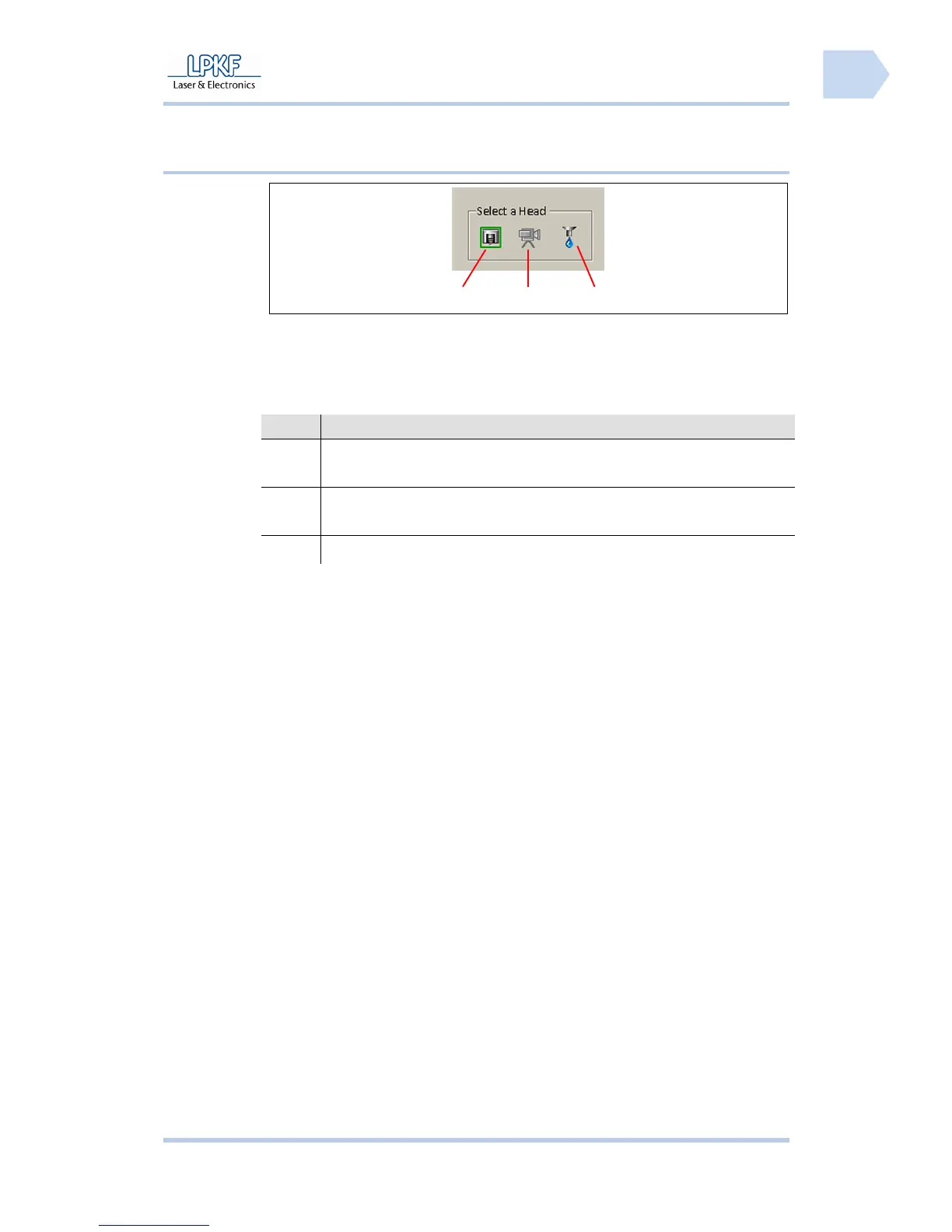

Fig. 24: Select
head
/1/ Mill/drill head /3/ Dispenser
/2/ Camera
The individual buttons have the following functions:
No. Description
/1/ Click [Mill/drill head] to move the mill/drill head (with mounted tool) to
the current camera position.
/2/ Click [Camera] to move the mill/drill head (with camera) to the current
tool position.
/3/ Click [Dispenser] to move the mill/drill head (with Dispenser) to
2 1
3
