3.2.4 Mill/drill head
3.2.4.1 ProtoMat S63/103

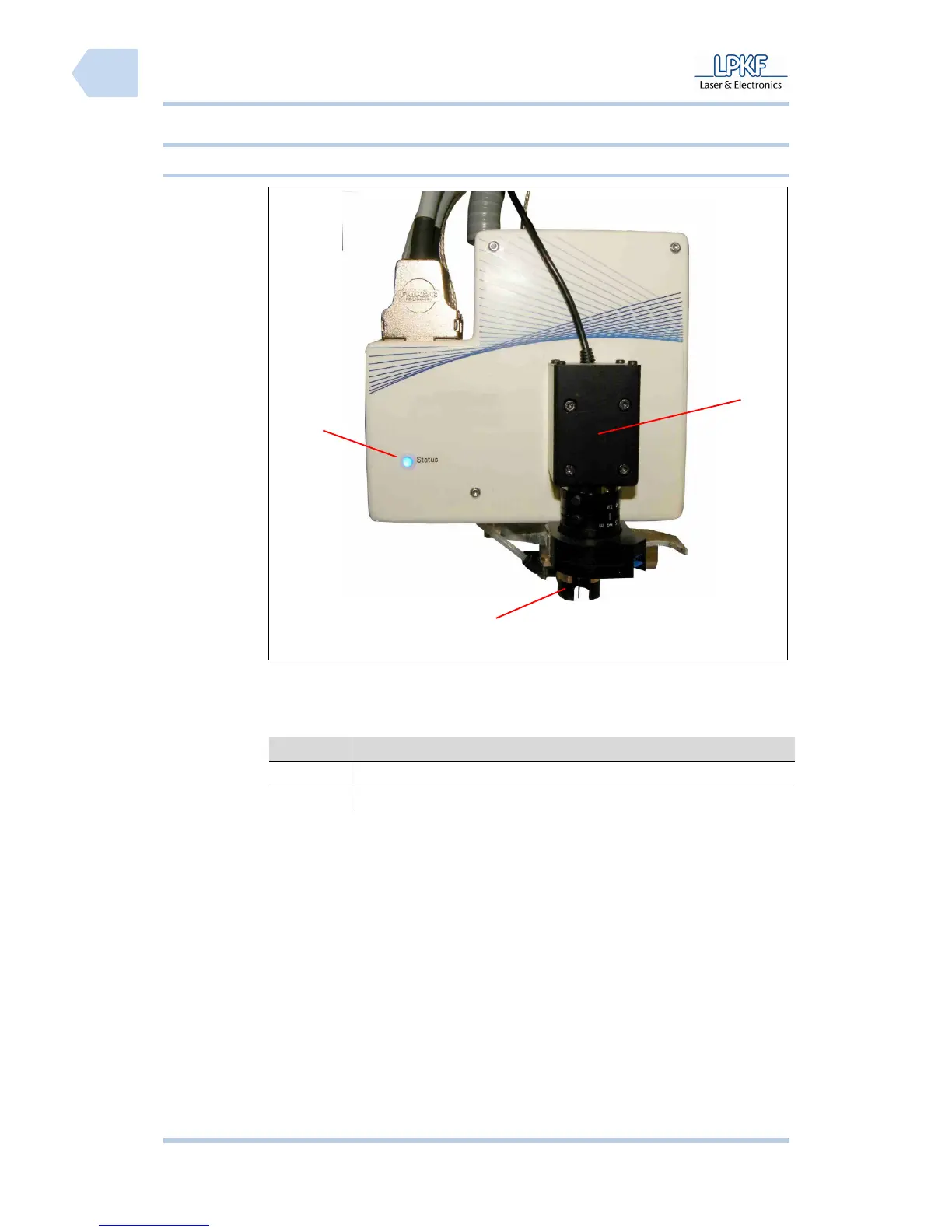

Fig. 9: Mill/drill
head ProtoMat
S63/S103
/1/ Status LED /2/ Tool holder
/3/ Camera
Tab. 2: LED
signalling
ProtoMat S63/
S103
LED Signal
ON The circuit board plotter is ready for operation.
Flash The collet chuck is moving.
