LPKF ProtoMat S64 - Dispenser

ProtoMat S64/S104
Structure and function
V. 1.0 | LPKF Laser & Electronics AG
33/160
3.4.3 Dispenser
The dispenser at the processing head consists of a dispenser cartridge with solder
paste and a needle.

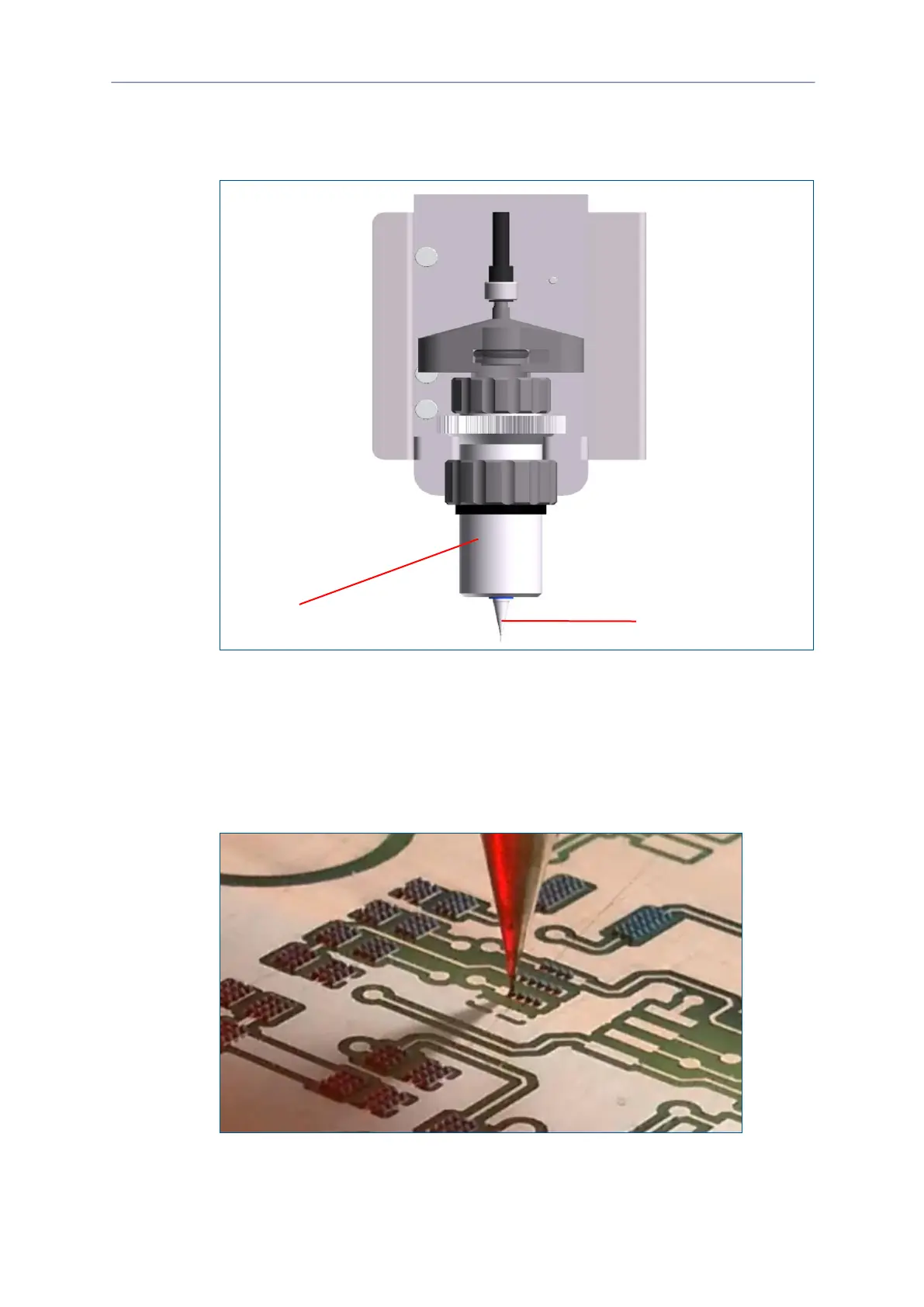

Fig. 10: Dispenser
1 Dispenser cartridge
2 Needle
Using the dispense wizard in the system software, the offset is calculated in x, y, and z
direction and the solder paste is applied to the layer Solder paste in accordance with
the data. The amount of solder paste is automatically calculated depending on the pad
shape and pad size and applied by the needle. You can manually adjust the amount of
solder paste to be applied by using the pressure regulator of the processing head, if
necessary.
Fig. 11: Applying solder paste with the dispenser
2
1
