3.5.1 Extraction system
LPKF recommends using the JetStream iSeries AX079-25 extraction system. For a
detailed description of the extraction system refer to the manufacturer's manual
delivered with the extraction system.

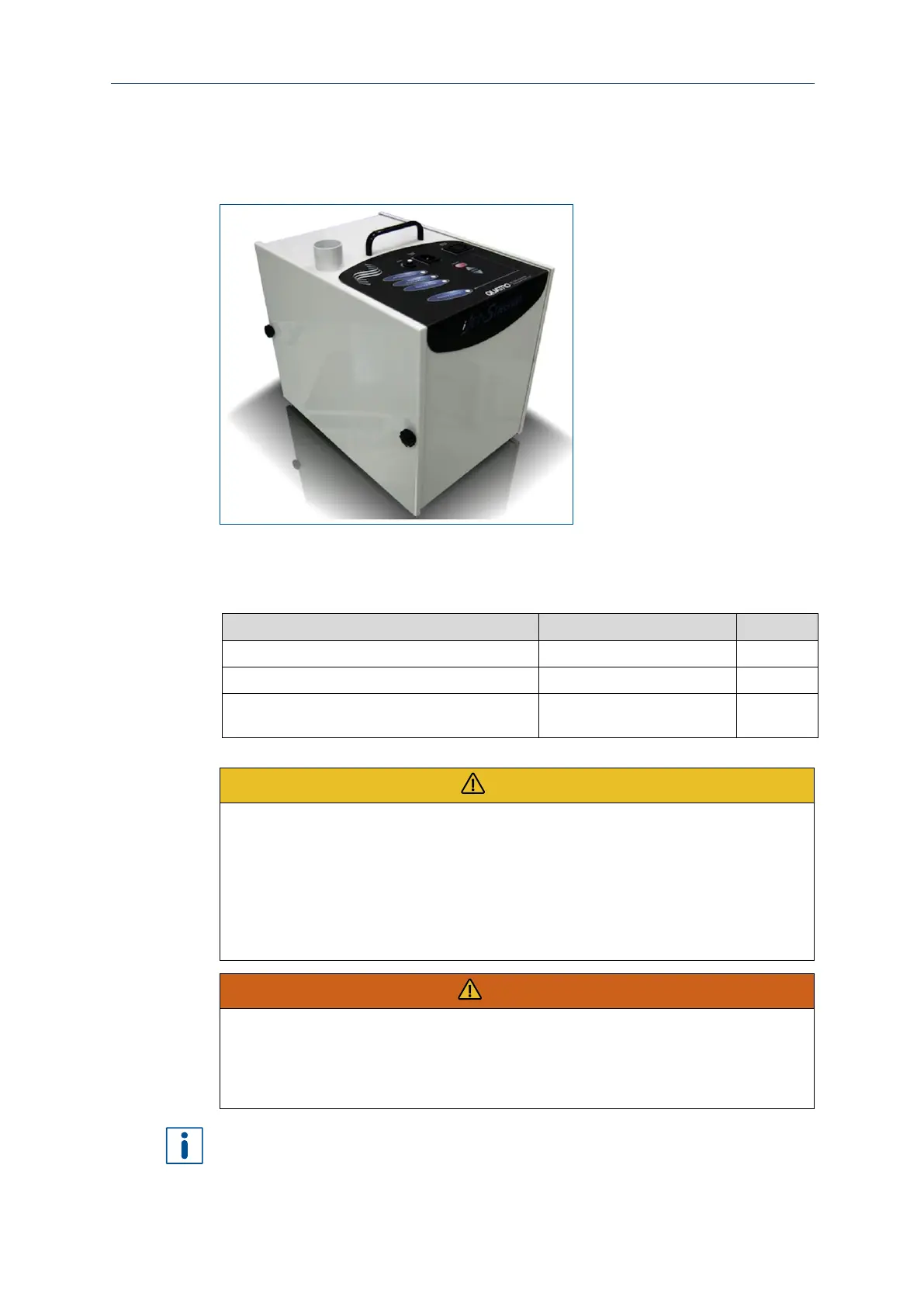

Fig. 18: Extraction system AX079-25
The extraction system that you use should have the following characteristics:
Extraction system
Data
Value
Unit
Extraction air flow
at least 186
m
3
/h
Extraction fitting (Ø)
50
mm
Separation efficiency
> 98 (≙ filter class: at least
E12)
%
 Use a HEPA filter of class 12.
CAUTION
Health hazard by insufficient filtration!
Filters cannot be cleaned or reused. If you are using saturated, defective or no
filters at all, filtration of particles that can be harmful to health is not guaranteed.
 Only operate the system with installed and working filters.
 Observe the recommended maintenance intervals and replace the filters in
time.
 Dispose of the saturated filters properly. Observe the local disposal regulations.
WARNING
Health hazard by gases or dusts!
Processing materials can produce gases or dusts hazardous to health.
 Process only materials that are approved by LPKF.
 Only work with an extraction system that is switched on and is working properly.
If you are using other accessories, refer to the manufacturer’s manual for more
information.
