5.4.2 Connecting the compressed-air supply
The system is connected to the compressed-air supply via a pneumatic tube.
Material
The following material is required:

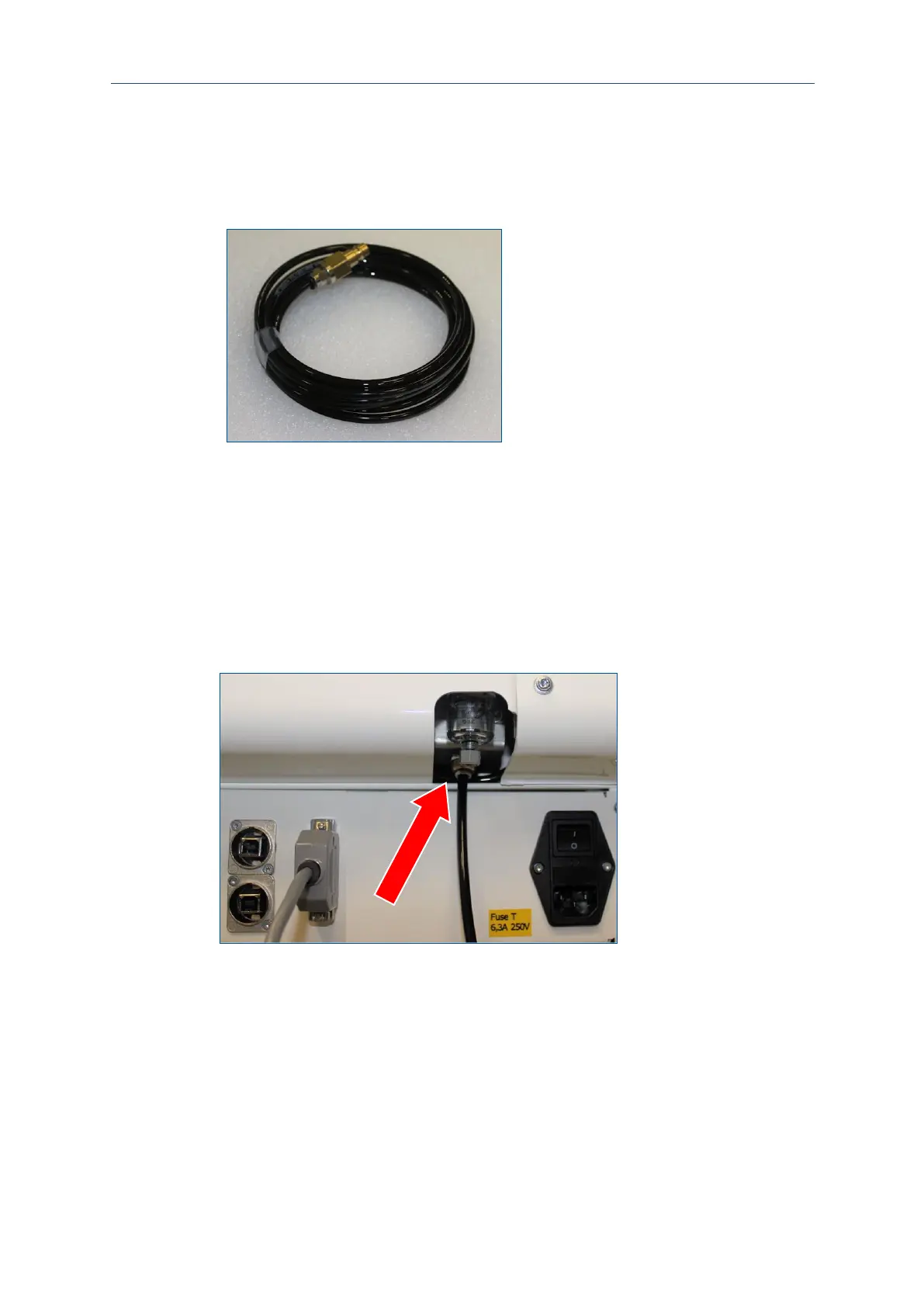

Fig. 49: Pneumatic tube
 Connecting the compressed-air supply
CAUTION! Tripping hazard by hoses and cables!
Hoses and cables are routed to the system. If the hoses and cables are laid
inappropriately they pose a tripping hazard for the operating personnel.
 Always ensure that the hoses and cables do not pose a tripping hazard.
1. Connect the pneumatic tube to the compressed-air connector G 1/4".
Fig. 50: Connecting the pneumatic tube to the system
2. Connect the pneumatic tube with the compressed-air supply (maximum pressure:
6 bar).

The compressed-air supply has been connected.
