LPKF ProtoMat S64 - Connections

ProtoMat S64/S104
Structure and function
V. 1.0 | LPKF Laser & Electronics AG
41/160
Accessories kit 2.5D ProtoMat S64/S104 (order code: 10086885)
Quantity
Base material Necuron 1300, 250 mm x 250 mm x 8 mm
(~ 9.8 x 9.8 x 0.31 in)
1
Base material Necuron 651, 300 mm x 250 mm x 8 mm
(~ 11.8 x 9.8 x 0.31 in)
1
End Mill 1/8", 38 mm, d = 1 mm (light green), double flute
5
End Mill 1/8", 38 mm, d = 2 mm (green), double flute
5
Table 6: Accessories kit 2.5D ProtoMat S64/S104
Accessories kit 2.5D ProtoMat S64/S104 (order code: 10082415)
Quantity
Base material Necuron 1300, 250 mm x 250 mm x 8 mm
(~ 9.8 x 9.8 x 0.31 in)
1
Base material Necuron 651, 300 mm x 250 mm x 8 mm
(~ 11.8 x 9.8 x 0.31 in)
1
Table 7: Starter kit 2.5D ProtoMat S64/S104
All consumables and tools can be found in the product catalog. They can be ordered
individually or in kits.
3.6 Connections
The connections are located at the rear of the system and are described in this
chapter.

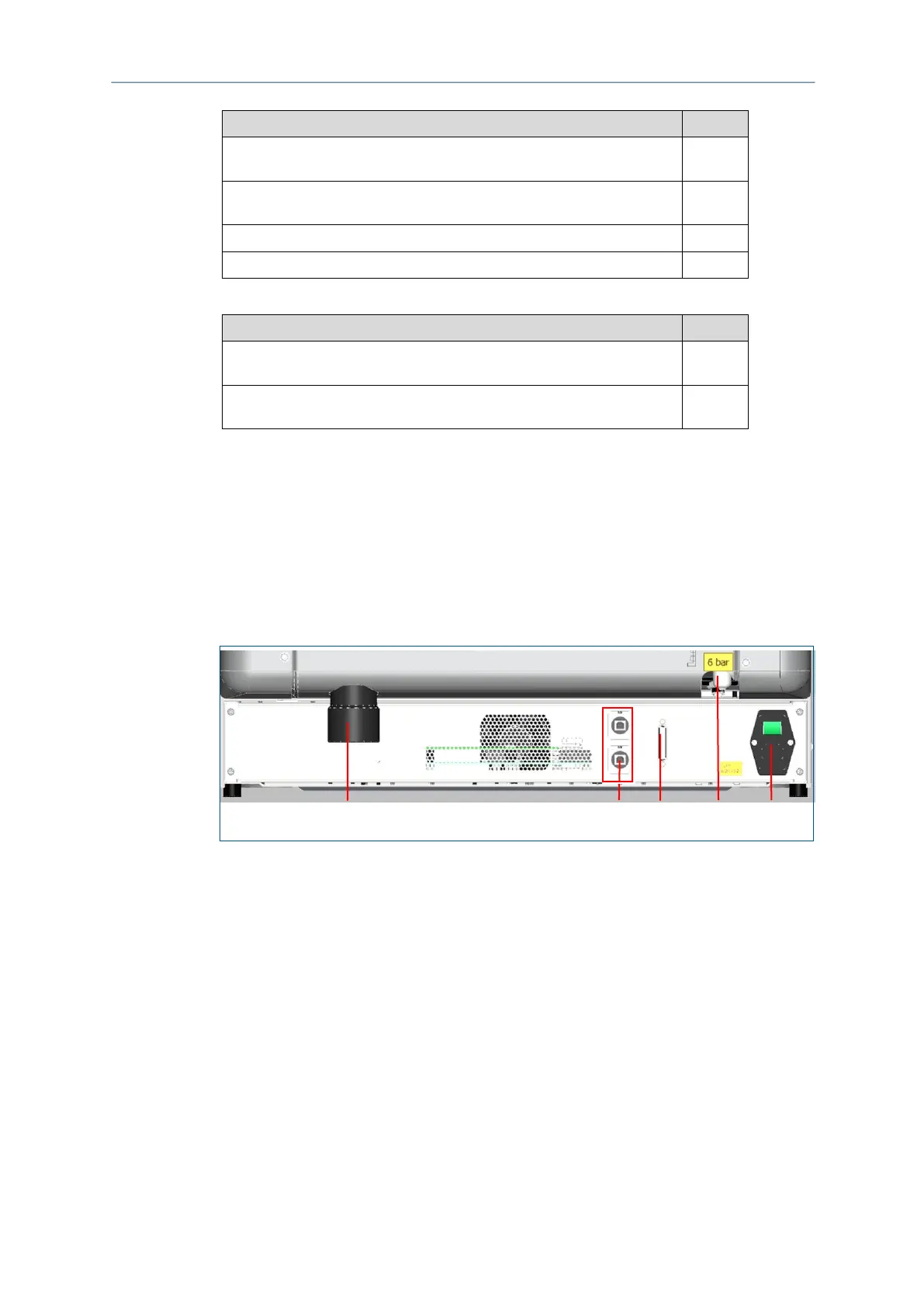

Fig. 20: Connections at the rear of the system
1 Extraction tube, connector for extraction
system
2 USB 2.0 socket, type A
1 x Connection between system and PC
1 x Connection between the PC and the
camera
3 25-pin D-sub connector
for connecting the extraction system
4 Compressed-air connection
5 IEC C14 inlet
Connector for mains cable
5
1
3
2
4
