First startup
ProtoMat S64/S104
64/160
LPKF Laser & Electronics AG | V. 1.0
The area marked in red in the following figure is the safety zone. It must not be
blocked by objects. In front of the system, at least 400 mm (15.8 in) of space should
be available for operation and movement.

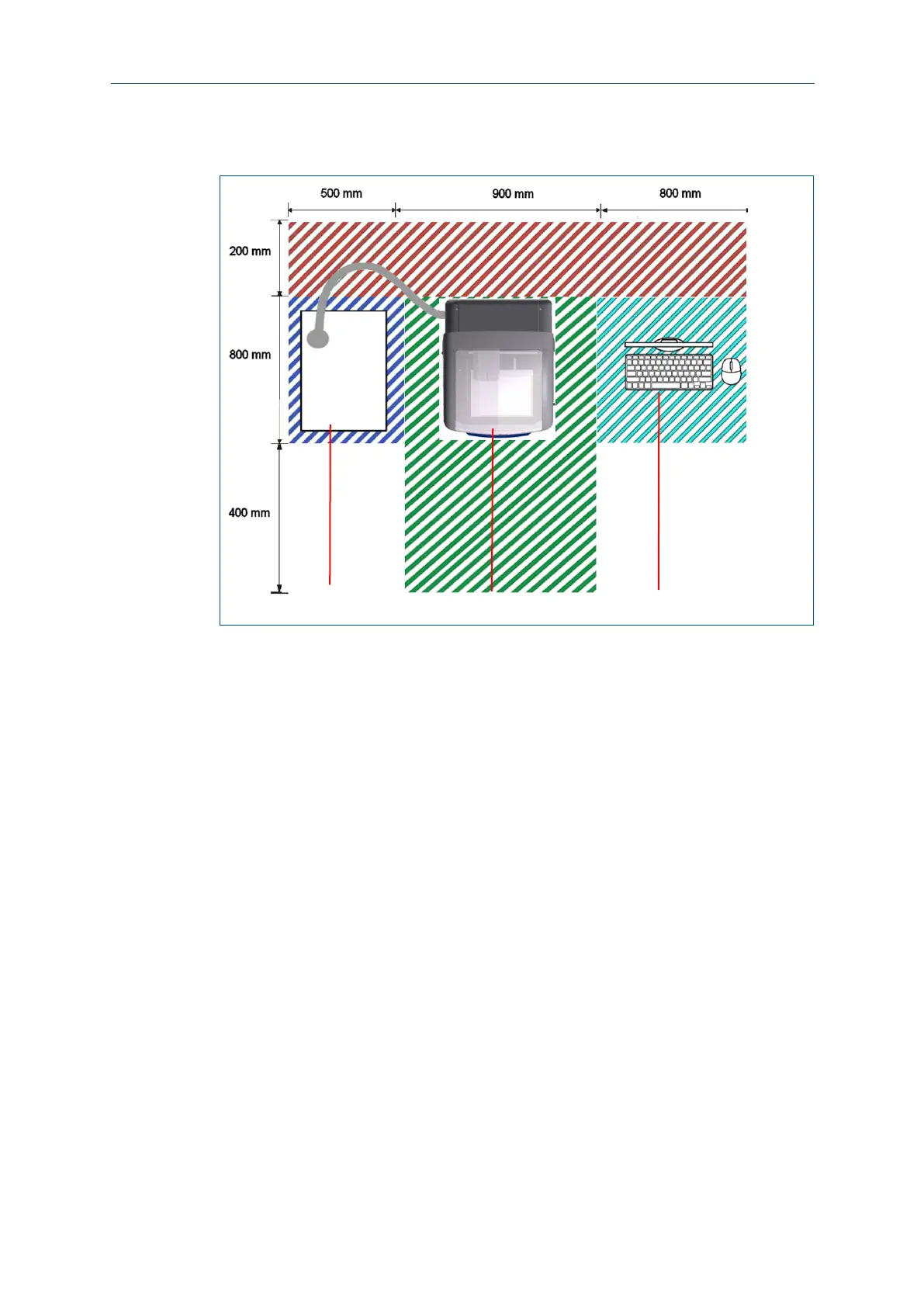

Fig. 36: Minimum required space
1 Extraction system
2 System
3 PC (recommended position for desk and PC)
3
1
2
