LUMENIS smart532 - Figure A-1: Spot Size Versus Distance of Fiber Tip from Tissue; Figure A-2: Irradiance Versus Distance of Fiber Tip from Tissue

Smart532
™
Clinical Guide
UM-1151440EN, Rev. C, May 2016 A-25

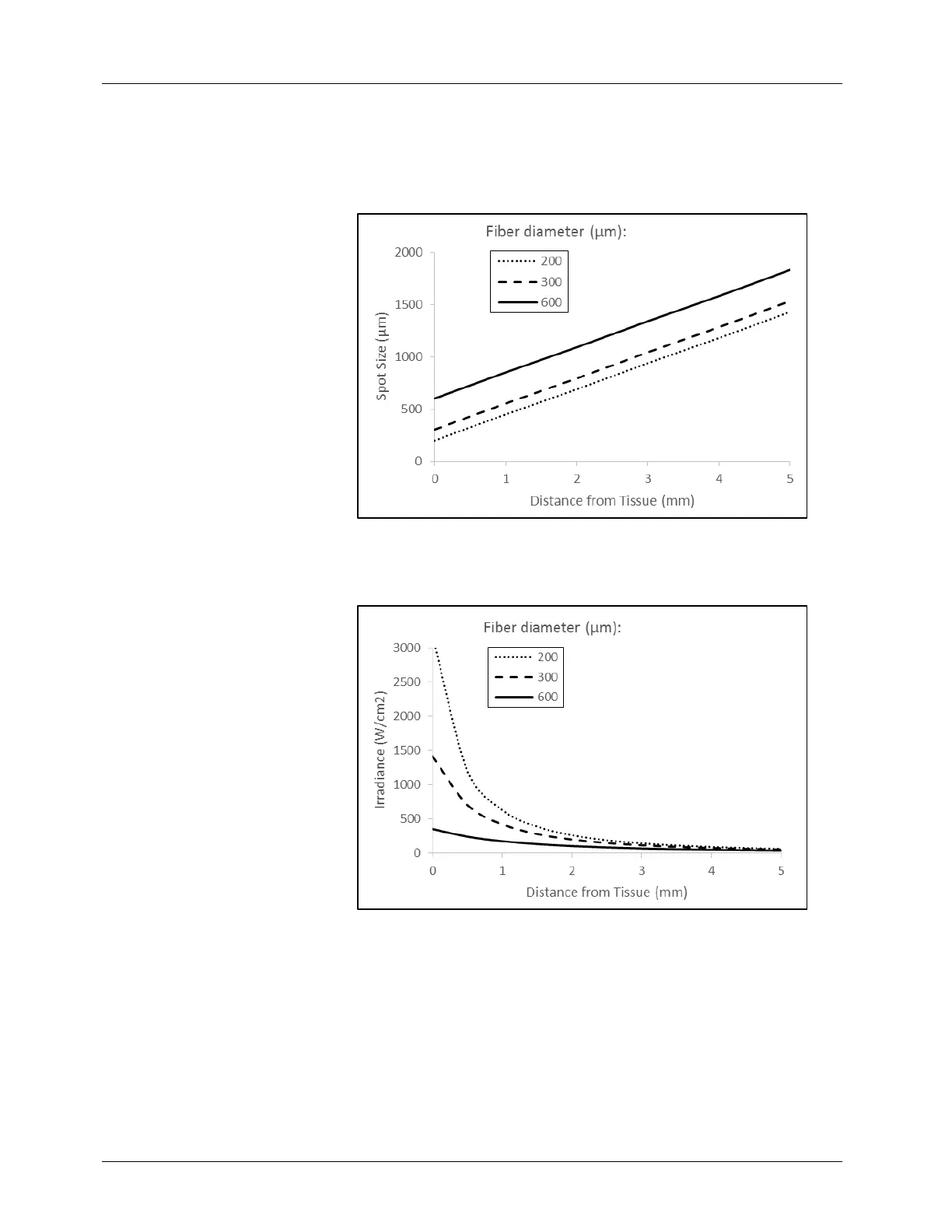

Figure A-1 shows the spot size as a function of distance from the fiber.
Figure A-2 illustrates the relationship between irradiance and the distance
from the fiber tip.
Figure A-1:
Spot Size versus Distance of fiber tip from Tissue
Figure A-2: Irradiance versus Distance of Fiber Tip from Tissue
