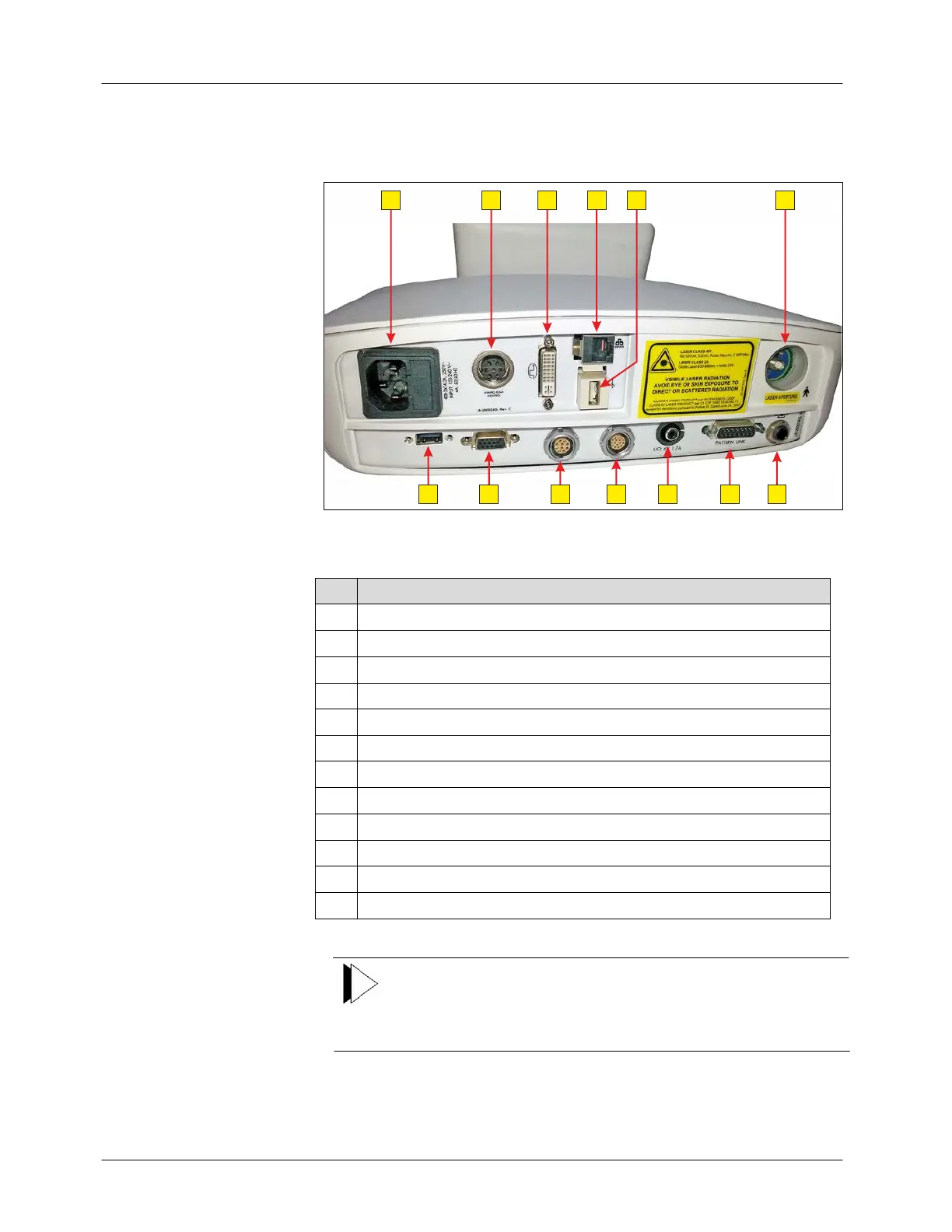

The rear panel of the Smart532 laser system is shown in Figure 3-3:
Figure 3-3: Smart532 Laser System – Rear Panel
# Description
1
Power cable connection port and fuse housing
2
Array connection port to aiming beam
3
DVI connection port
4
Ethernet connection port
5
USB connection ports
6
Fiber connection port (FC)
7
Disabled
8
Footswitch connection port
9
Eye safety filter (ESF) connection port
10
LIO illumination connection port
11
Array data connection port
12
Remote interlock connection port
Note
The USB connection ports are normally utilized by Lumenis-
authorized service engineers for servicing the system and for
uploading periodical software upgrades.
