Mackie DL806 and DL1608 Reference Guide
14

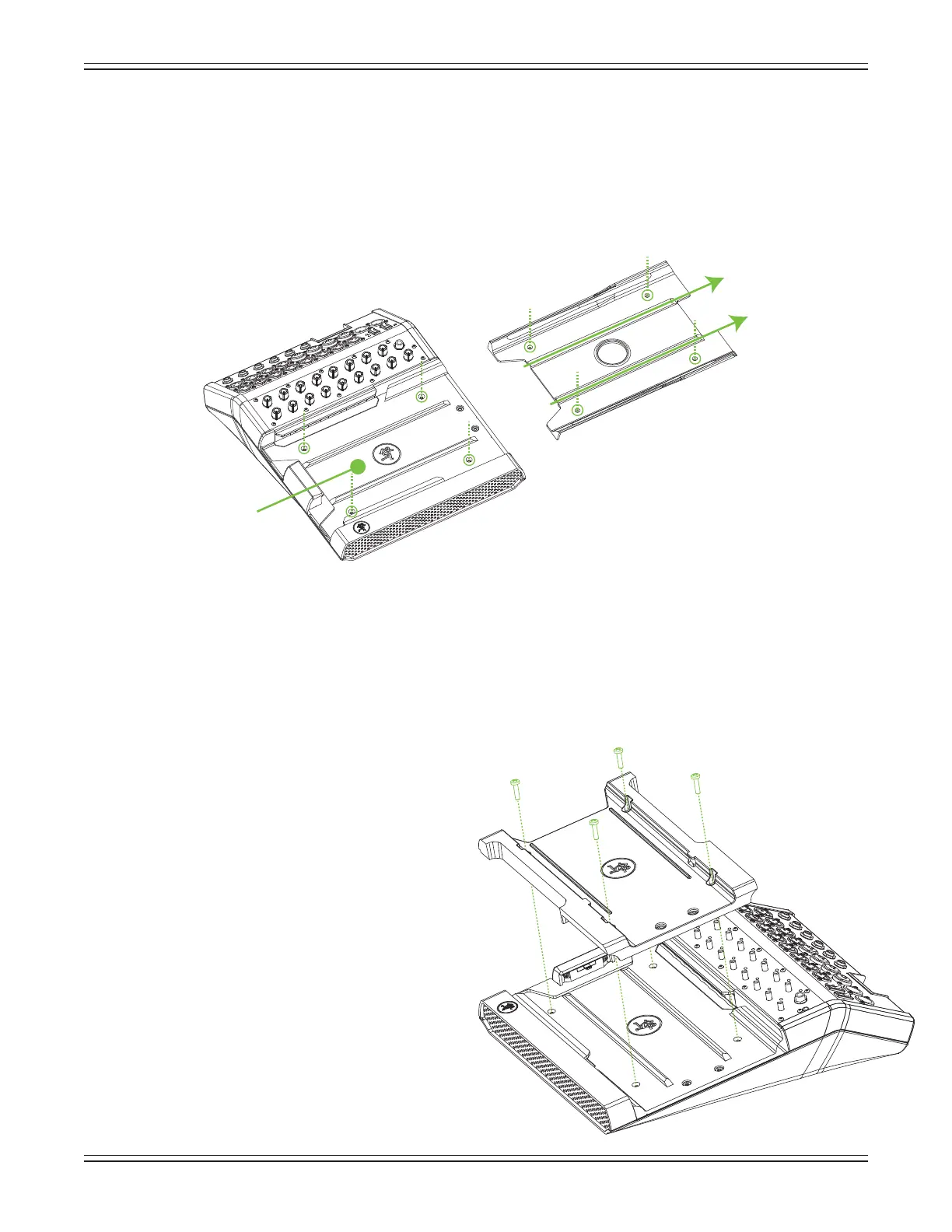

Here’showtoremovetheiPadtray(ifmixingwithanoriginaliPad):
(1) remove the four screws holding the tray insert to the mixer, numbered 1 to 4 in the illustration below.
(2)slidethetrayinsertoutfromthemixerandSAVEITSOMEWHERESAFE!Shouldyoueverupgrade
toaniPad2,iPad(3rdgeneration),oriPad(4thgeneration)thetraywillbenecessary.
(3)putthescrewsbackintothemixerfromwhereyoujustremovedthem.Thiswaytheycan’tgetlost.
WithdierentdimensionsthantheotheriPads,theiPadminidoesn’tttheincludediPadtray...it’stoosmall!
Don’tfret,though;we’vegotyoucovered.Asmentionedonthepreviouspage,aniPadminimaybedocked
to a DL Series mixer with a Lightning connector, but it requires a mini tray insert (sold separately).
Here’showtoinstalltheiPadminitray:
(1) remove the four screws from the mixer,
as seen in the illustration to the right.
(2) If applicable, slide the tray insert out from
themixerandSAVEITSOMEWHERESAFE!
ShouldyoudecidetodockaniPad2,iPad
(3rdgeneration),oriPad(4thgeneration)
to the mixer, the tray will be necessary.
(3)placetheiPadminitrayinsertontop
of the mixer, making sure to line up the
sides and the screw holes.
(4) put the screws back into the mixer
from where you just removed them
(asdisplayedbelow)toholdtheiPad
mini tray insert into place.
(5) for the complete iPad mini tray kit
installation instructions, click here!
1
2
3
Tray Insert
Tray
4
1
2
3
4
