SECTION 16 PARTS AND PART NUMBERS
The following section lists the main assemblies and their relative part numbers.

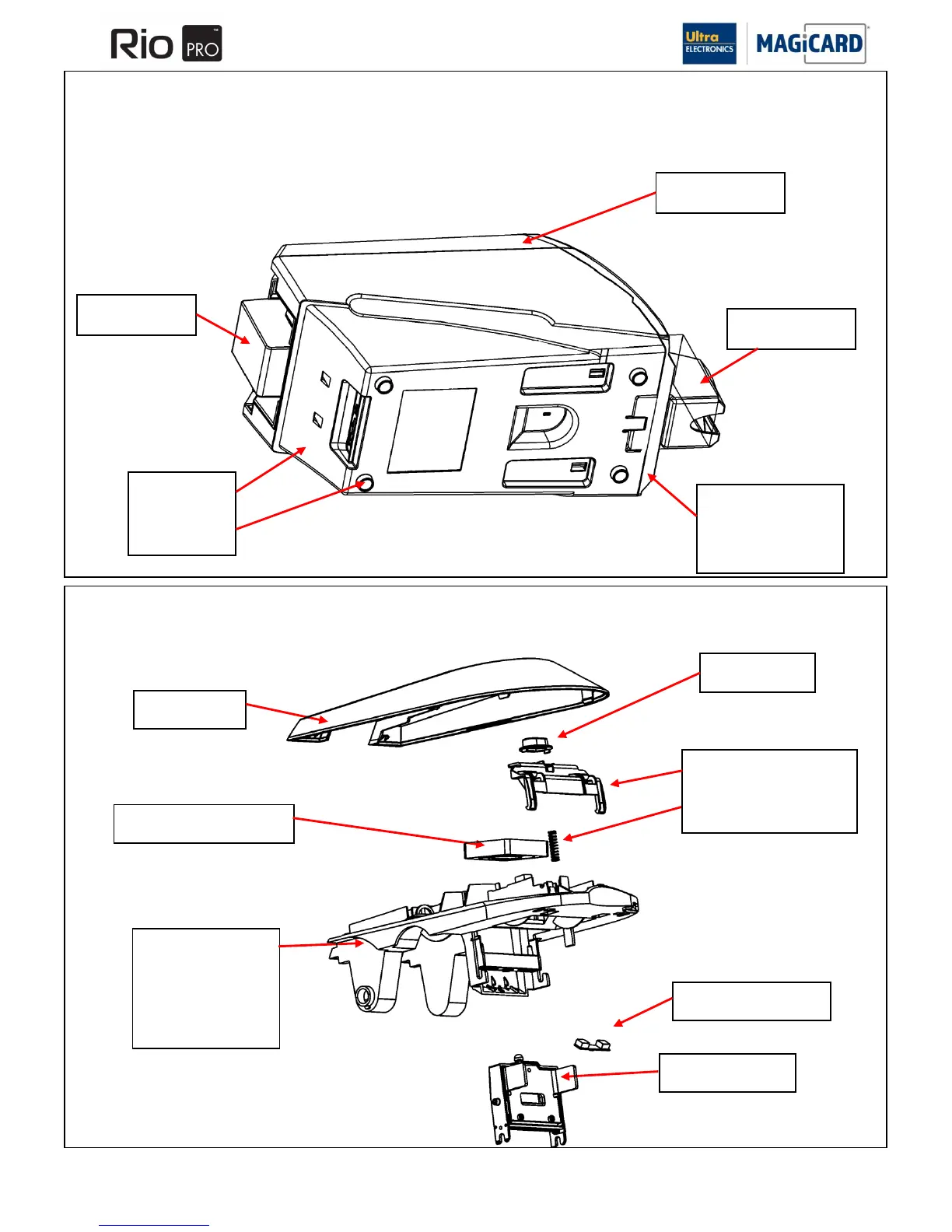

SECTION 16.1 EXTERNAL COMPONENTS
SECTION 16.2 TOP COVER ASSEMBLY (3633-0150)
Front Card Hopper
3652-0100-001
Rio Pro Front Fascia
3652-0100-003
Rio Pro Front Label
3652-0100-008
Rio Pro Base
3652-0100-001
Feet x 4
E9070
Rear Card Hopper
3652-0100-005
Metallic Collar
3652-0100-002
Top Cover
3652-0150-005
Top Cover Latch
3652-0150-003
Top Cover Latch Spring
E9319
Dye Film Sensor (Upper)
3652-0505
Print Head Assembly
FG/3652-0160
Print Head Cooling Fan (24v)
E092
Chassis Top Cover
3652-0150-005
Print Head Cable
3633-0400
Print Head Springs x 2
E9041
Latch Button
E9319
