Ultra Electronics Card Systems

Rio Pro Maintenance Manual

- 99 -

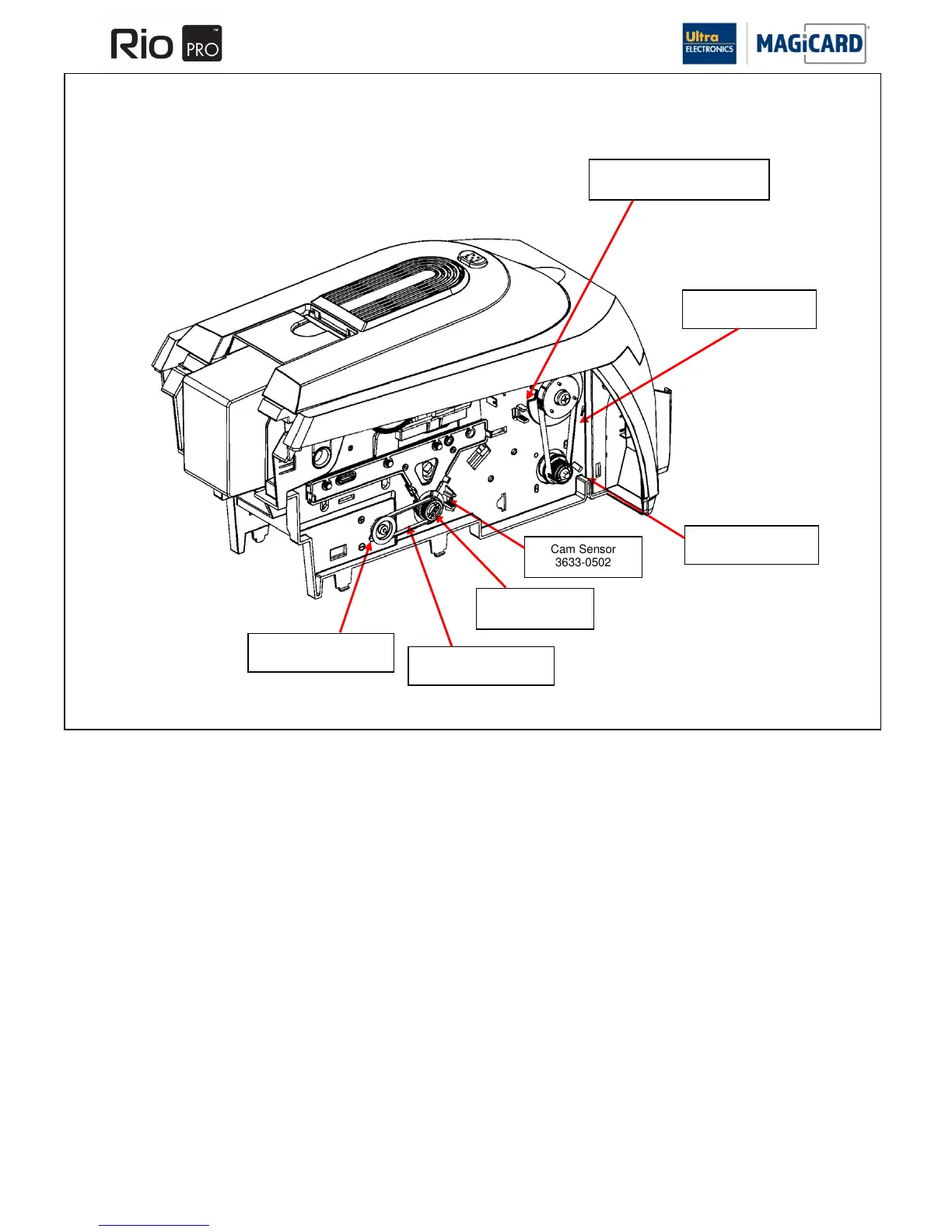

SECTION 16.7 DRIVE MECHANISM LEFT HAND SIDE.

Cam Sensor

3633-0502

Camshaft Pulley

3633-0200-005

30 Teeth Pulley

3633-0200-005

115 Teeth Drive Belt

E9056

Camshaft Motor Pulley

3633-0200-006

80 Teeth Cam Belt

E9055

Rotation Unit Position Sensor

3633-0502
