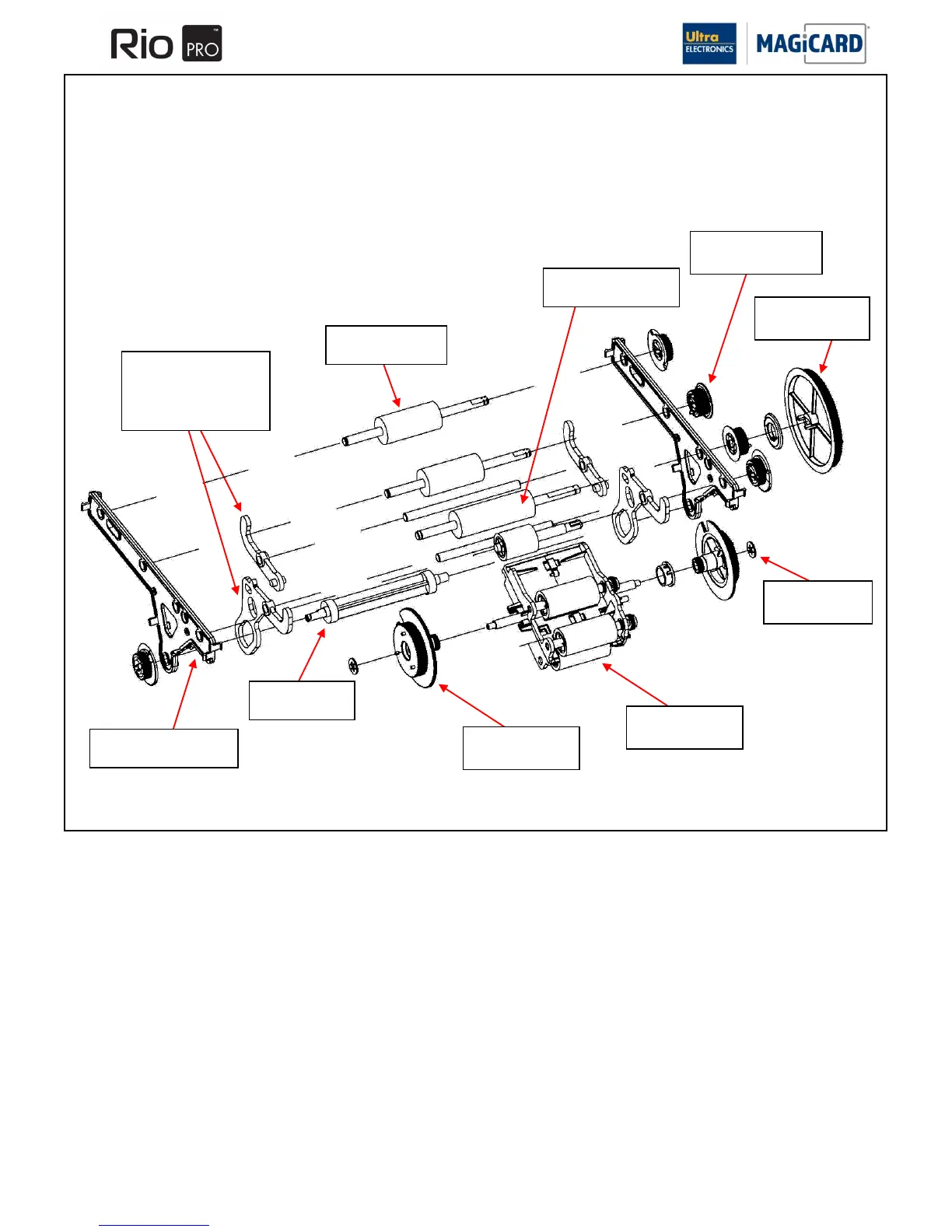

SECTION 16.5 ROLLER LAYOUT.
Camshaft
3633-0300-001
Star Washer x 2
Rio/0055/R
Bearing Plate x 2
3633-0300-004
Print Head Roller
3633-0180
Cam Linkage Long x 2
3633-0300-002
Cam Linkage Short x 2
3633-0300-001
Rotation Unit
3633-0140
Flipper Pulley
3652-0140
110 Teeth Pulley
3633-0200-010
Card Feed Roller
3633-0204
30 Teeth Pulley x 3
3633-0200-005
